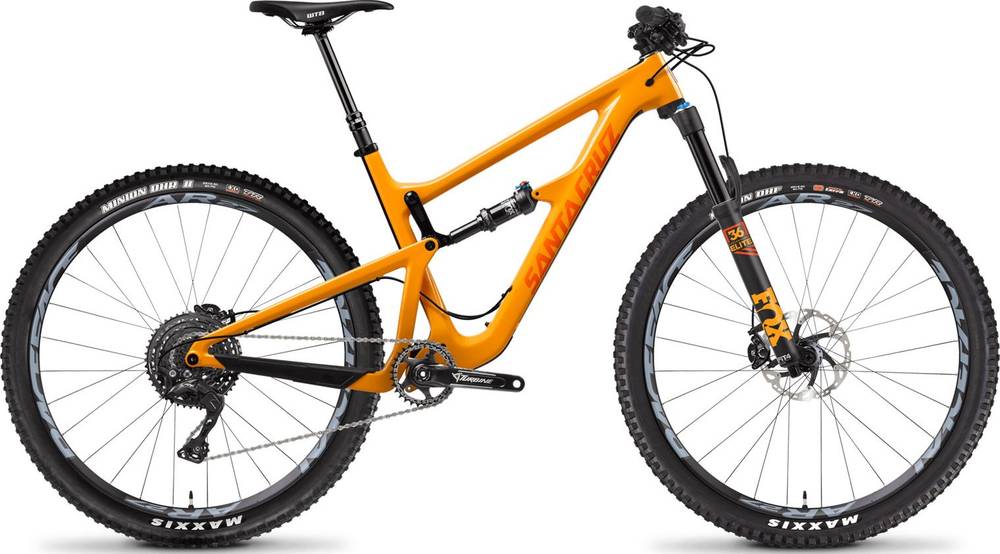

Santa Cruz Hightower C XE 2018
2018 Mountain
Estimate price |
5,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Fox Performance Elite Float 36
-
Groupset XT, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Performance Elite
Rear Shock
FOX Float Performance Elite DPS
Drivetrain
Rear Derailleur
Shimano XT M8000, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano XT M8000, 11-speed
Cassette
e*thirteen TRS Race, 11-speed, 9-46 tooth
Crank
Race Face Turbine
Bottom Bracket
threaded
Chain
Shimano SLX M7000
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D641, 15mm x 110mm, 32 hole, Rear: Novatec D642, 12mm x 148mm, 32 hole
Rear Hub
Front: Novatec D641, 15mm x 110mm, 32 hole, Rear: Novatec D642, 12mm x 148mm, 32 hole
Rims
Race Face AR 24
Spokes
DT Competition with Sapim Secure Lock 14mm brass nipples
Tires
Front: Maxxis Minion DHF, 2.3", 3c, EXO, TR, Rear: Maxxis Minion DHR2, 2.3", EXO, TR
Brakes
Brakes
Shimano XT M8000 with Shimano RT86 Ice Tech 180mm rotors front and rear
Brake Levers
Shimano XT M8000
Cockpit
Stem
Race Face Turbine, 50mm
Handlebar
Santa Cruz AM Carbon, 31.8mm diameter, 780mm wide, flat
Grips
Santa Cruz Palmdale lock-on
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
WTB Silverado Pro
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 611 mm | 616 mm | 620 mm | 630 mm | 648 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm | 512 mm |
| Top Tube Length | 581 mm | 608 mm | 629 mm | 657 mm | 692 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1145 mm | 1172 mm | 1194 mm | 1222 mm | 1262 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 717 mm | 717 mm | 720 mm | 727 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Hightower C XE is part of the Santacruz Hightower model. There are 66 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Santa Cruz Hightower LT C R 2018 is the most affordable bike of this model and has a price of 3949$. On the other hand, Santa Cruz Hightower LT Carbon CC XX1 Reserve 2018, is the most expensive and costs 9299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2018 for 5599$. If we compare this with the average Trail bike cost we notice that the price is 102.72% more expensive.
Hightower C XE components
Fork
The Hightower C XE comes factory-installed with the Fox Performance Elite Float 36 fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Hightower C XE has a rear shock with a travel of 135mm. The model FOX Float Performance Elite DPS is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Santa Cruz Hightower C XE 2018, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Hightower C XE is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Hightower C XE. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
