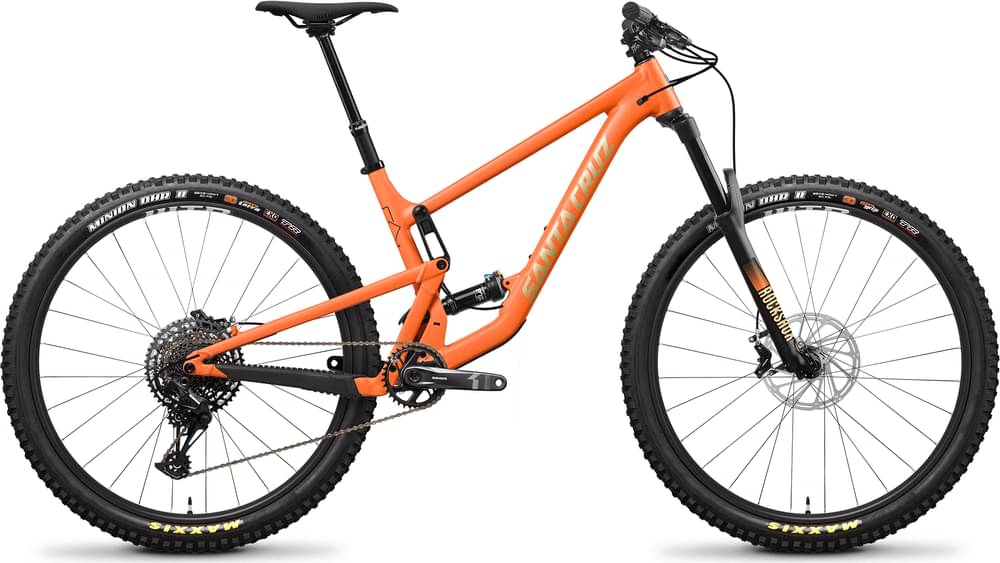

Santa Cruz Hightower D / Aluminum / 29 2022
2022 Mountain
Estimate price |
3,549$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 145mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 185cm
LG Low
174cm - 185cm
XL High
183cm - 194cm
XL Low
183cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hightower D / Aluminum / 29
Suspension Fork
RockShox 35 Gold RL, 150mm, 29"
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12spd
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1210, 12spd, 11-50t
Crank
SRAM X1 Eagle DUB, 30t
Bottom Bracket
SRAM DUB 68/73mm
Chain
SRAM SX Eagle, 12spd
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i30 TCS 2.0 29"
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHR II 29"x2.4", 3C, MaxxGRIP, EXO, TR, Rear: Maxxis Minion DHR 29"x2.4", 3C, EXO, MaxxTerra
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
RaceFace Ride
Handlebar
RaceFace Aeffect R
Grips
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Comp Saddle or WTB
Seatpost
SDG Tellis
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.31 mm | 1.32 mm | 1.29 mm | 1.31 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 745 mm | 745 mm | 774 mm | 774 mm | 798 mm | 798 mm | 827 mm | 827 mm | 862 mm | 862 mm |
| Rake | 52 mm | 53 mm | 52 mm | 52 mm | 52 mm | 52 mm | 53 mm | 53 mm | 52 mm | 47 mm |
| Trail | 114 mm | 115 mm | 114 mm | 116 mm | 114 mm | 116 mm | 112 mm | 115 mm | 114 mm | 121 mm |
| Stack | 598 mm | 600 mm | 607 mm | 609 mm | 616 mm | 618 mm | 634 mm | 636 mm | 657 mm | 659 mm |
| Reach | 425 mm | 422 mm | 450 mm | 447 mm | 470 mm | 467 mm | 490 mm | 487 mm | 515 mm | 512 mm |
| Top Tube Length | 563 mm | 564 mm | 591 mm | 593 mm | 615 mm | 616 mm | 642 mm | 643 mm | 676 mm | 677 mm |
| Seat Tube Angle | 77.1 ° | 76.7 ° | 77 ° | 76.6 ° | 76.8 ° | 76.5 ° | 76.6 ° | 76.3 ° | 76.3 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm | 130 mm | 155 mm | 155 mm |
| Chainstay Length | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm | 436 mm | 437 mm |
| Wheelbase | 1175 mm | 1176 mm | 1204 mm | 1205 mm | 1228 mm | 1229 mm | 1257 mm | 1258 mm | 1298 mm | 1293 mm |
| Bottom Bracket Drop | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm |
| Standover Height | 701 mm | 696 mm | 715 mm | 710 mm | 714 mm | 710 mm | 715 mm | 710 mm | 706 mm | 701 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 183 cm | 183 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 185 cm | 185 cm | 194 cm | 194 cm | 201 cm | 201 cm |
About this model
Hightower D / Aluminum / 29 is part of the Santacruz Hightower model. 66 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Santa Cruz Hightower D / Aluminum / 29 2022 is the most economical model, with a starting price of 3549$. Santa Cruz Hightower X01 / AXS / RSV / Carbon CC / 29 2022 on the other hand costs 9849$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 3549$. Comparing this to the average Trail bike price, we see that the price is 28.49% higher.
Overview of components
Fork
Santa Cruz Hightower D / Aluminum / 29 2022 bike is equipped with the RockShox 35 Gold RL fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX Float Performance DPS model, with a travel of 145mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Santa Cruz Hightower D / Aluminum / 29 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hightower D / Aluminum / 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Santa Cruz Hightower D / Aluminum / 29 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
