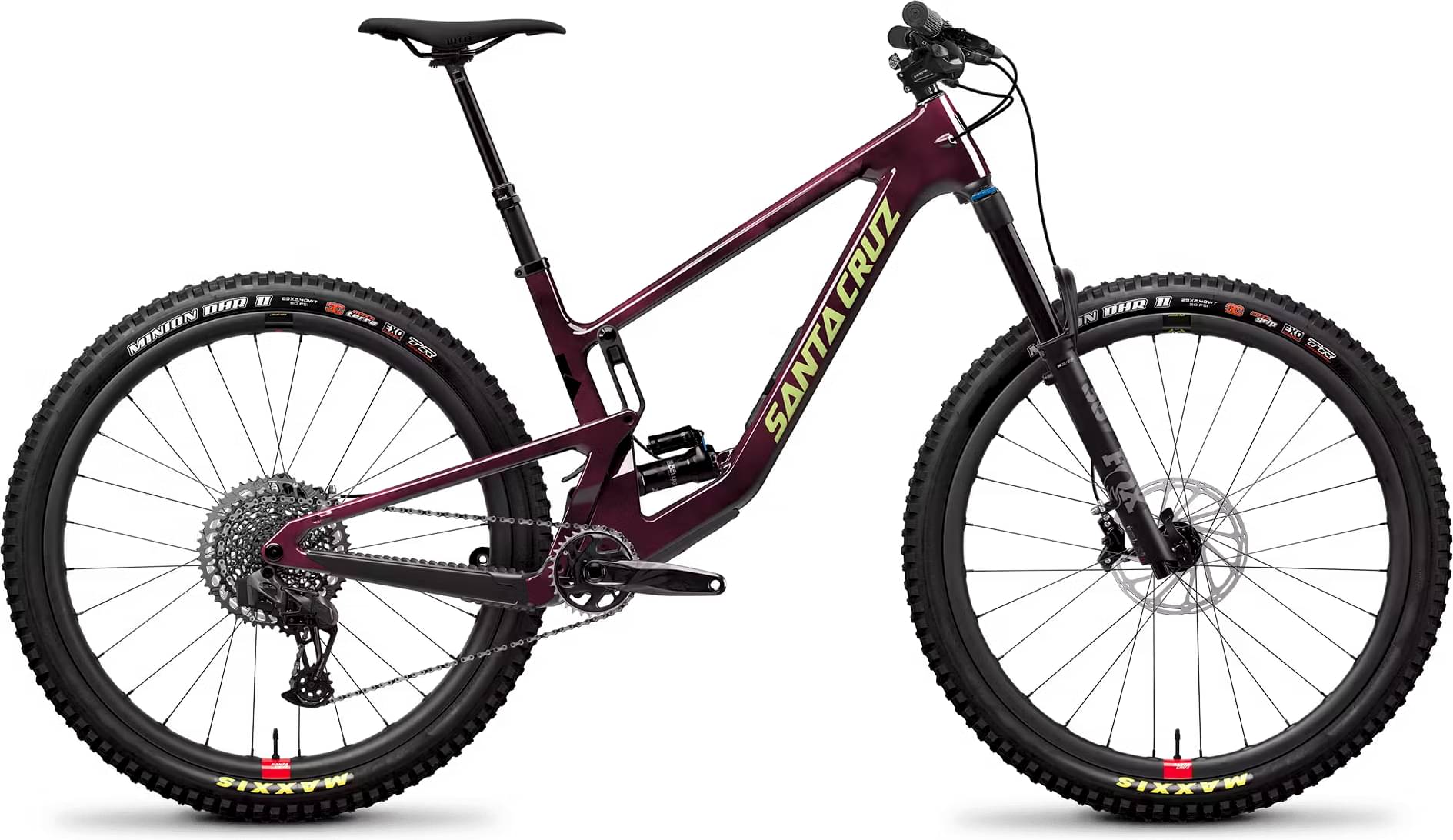

Santa Cruz HIGHTOWER GX AXS RSV / Carbon C 2023
2023 Mountain
Estimate price |
9,799$
Weight | 14.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHTOWER GX AXS RSV / Carbon C
Suspension Fork
FOX 36 Float Performance Elite, 150mm
Rear Shock
Rockshox Super Deluxe Select+ 210x55
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle, 12spd
Shift Levers
GX AXS Controller w/ Rocker Paddle
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
Front: i9 1/1, 15x110, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rear Hub
Front: i9 1/1, 15x110, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rims
Front: Reserve 30|HD 29", 28h, Rear: Reserve 30|HD 29", 28h
Tires
Front: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO, TR
Brakes
Brakes
SRAM Code RS
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium CroMo
Seatpost
RockShox Reverb Stealth, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.38 mm | 1.39 mm | 1.34 mm | 1.35 mm | 1.32 mm | 1.33 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 339 mm | 342 mm | 338 mm | 342 mm | 338 mm | 342 mm | 338 mm | 342 mm | 338 mm |
| Front Center | 752 mm | 752 mm | 783 mm | 783 mm | 807 mm | 807 mm | 836 mm | 836 mm | 867 mm | 867 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm |
| Trail | 126 mm | 130 mm | 126 mm | 129 mm | 126 mm | 130 mm | 126 mm | 130 mm | 126 mm | 130 mm |
| Stack | 608 mm | 610 mm | 622 mm | 624 mm | 631 mm | 633 mm | 649 mm | 651 mm | 662 mm | 665 mm |
| Reach | 427 mm | 424 mm | 452 mm | 449 mm | 472 mm | 469 mm | 492 mm | 489 mm | 517 mm | 514 mm |
| Top Tube Length | 568 mm | 569 mm | 596 mm | 597 mm | 623 mm | 624 mm | 644 mm | 645 mm | 671 mm | 672 mm |
| Seat Tube Angle | 77 ° | 76.7 ° | 77 ° | 76.7 ° | 76.7 ° | 76.4 ° | 76.9 ° | 76.6 ° | 76.9 ° | 76.7 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 125 mm | 125 mm | 145 mm | 145 mm | 160 mm | 160 mm |
| Chainstay Length | 428 mm | 429 mm | 431 mm | 432 mm | 434 mm | 435 mm | 437 mm | 438 mm | 440 mm | 441 mm |
| Wheelbase | 1180 mm | 1180 mm | 1214 mm | 1215 mm | 1241 mm | 1242 mm | 1273 mm | 1273 mm | 1307 mm | 1308 mm |
| Bottom Bracket Drop | 31 mm | 34 mm | 31 mm | 34 mm | 31 mm | 34 mm | 31 mm | 34 mm | 31 mm | 34 mm |
| Standover Height | 703 mm | 698 mm | 705 mm | 700 | 708 mm | 703 mm | 711 mm | 706 mm | 716 mm | 711 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
Model Overview
HIGHTOWER GX AXS RSV / Carbon C completes the Santacruz Hightower model. 66 bikes variations carry this model name so far. You can easily view all of the Santacruz Hightower bikes models from 2023, here.
Model range prices
Santa Cruz HIGHTOWER R / Carbon C 2023 is the most affordable bike of this model and has a price of 5499$. On the other hand, Santa Cruz HIGHTOWER X01 AXS RSV / Carbon CC 2023, is the most expensive and costs 10349$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Santa Cruz HIGHTOWER GX AXS RSV / Carbon C price was 9799$. Comparing the average cost of a Trail bike to this one, you will see that HIGHTOWER GX AXS RSV / Carbon C price is 254.78% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.88 kg (28.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, HIGHTOWER GX AXS RSV / Carbon C has a weight of 14.34 kg (31.61 lbs). To sum up, it’s 11.34% heavier than the average weight of Trail bikes.
HIGHTOWER GX AXS RSV / Carbon C components
Fork
The HIGHTOWER GX AXS RSV / Carbon C comes factory-installed with the Fox Performance Elite Float 36 fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Rockshox Super Deluxe Select+ 210×55 rear shock model, which has a travel of 145mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the HIGHTOWER GX AXS RSV / Carbon C bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz HIGHTOWER GX AXS RSV / Carbon C has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Santa Cruz HIGHTOWER GX AXS RSV / Carbon C includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
