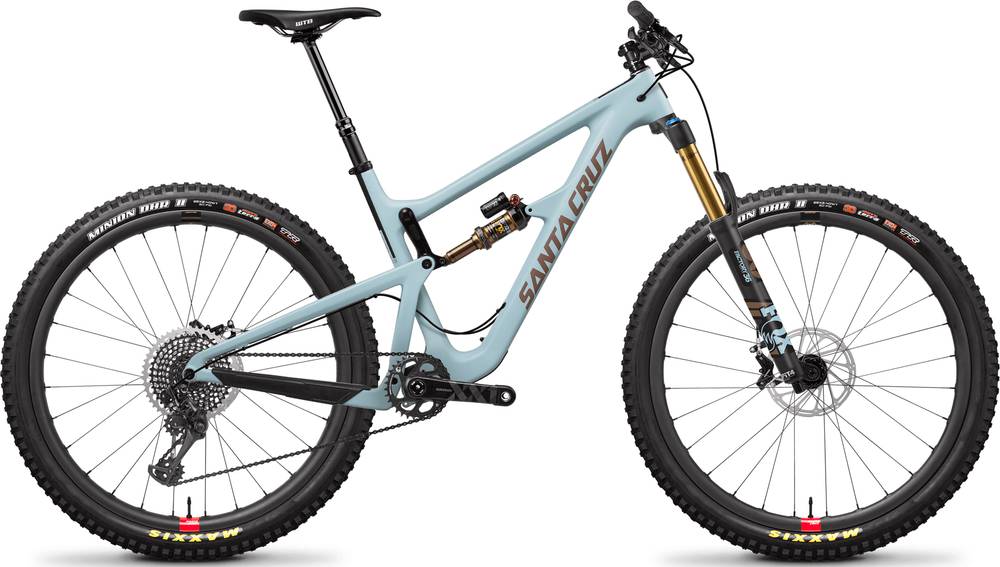

Santa Cruz Hightower LT XX1 Reserve / Carbon CC / 29 2019
2019 Mountain
Estimate price |
9,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hightower LT XX1 Reserve / Carbon CC / 29
Suspension Fork
FOX 36 Float Factory, 150mm, 29"
Rear Shock
FOX Float Factory DPX2 Kashima
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Shift Levers
SRAM XX1 Eagle
Cassette
SRAM XG1295 Eagle 10-50T
Crank
SRAM XX1 Eagle 148 DUB, 30t - 170mm (XS-S), 175mm (M-XL)
Chain
SRAM XX1 Eagle 12 SPD
Wheels
Front Hub
I9 15x110 28H
Rear Hub
I9 148x12 28H XD
Rims
Santa Cruz Reserve 30 Carbon Rim - 29 28h
Spokes
DT Competition Race (28)
Tires
Maxxis Minion DHR2, 29"x2.4", 3C Silkshield
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline, 200mm Front, 180mm Rear
Cockpit
Stem
Race Face Turbine R 50mm
Handlebar
SCB AM Carbon Bar 35x800
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 110 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.39 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 706 mm | 733 mm | 755 mm | 784 mm | 822 mm |
| Rake | 54 mm | 54 mm | 54 mm | 53 mm | 53 mm |
| Trail | 105 mm | 105 mm | 105 mm | 106 mm | 106 mm |
| Stack | 616 mm | 621 mm | 625 mm | 635 mm | 653 mm |
| Reach | 405 mm | 430 mm | 450 mm | 475 mm | 505 mm |
| Top Tube Length | 584 mm | 612 mm | 633 mm | 660 mm | 699 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 490 mm | 510 mm |
| Head Tube Angle | 66.4 ° | 66.4 ° | 66.4 ° | 66.4 ° | 66.4 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1153 mm | 1180 mm | 1202 mm | 1230 mm | 1268 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 717 mm | 717 mm | 720 mm | 727 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Hightower LT XX1 Reserve / Carbon CC / 29 is a Santacruz Hightower model. Santa Cruz launched 66 bikes of this model so far. Take a sneak peek at all Santacruz Hightower bikes models from 2019, by clicking here.
Model range prices
Santa Cruz Hightower R / Carbon C / 29 2019 is the most economical model, with a starting price of 3999$. Santa Cruz Hightower LT XTR Reserve / Carbon CC / 29 2019 on the other hand costs 9599$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9299$. Comparing this to the average Enduro bike price, we see that the price is 158.38% higher.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Hightower LT XX1 Reserve / Carbon CC / 29 has a rear shock with a travel of 150mm. The model FOX Float Factory DPX2 Kashima is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Hightower LT XX1 Reserve / Carbon CC / 29 bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Hightower LT XX1 Reserve / Carbon CC / 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Hightower LT XX1 Reserve / Carbon CC / 29. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
