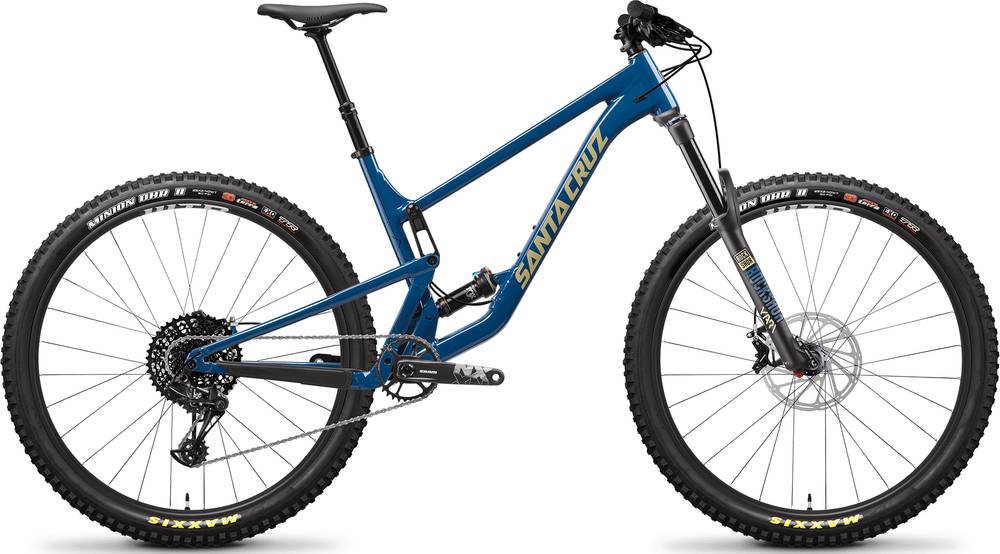

Santa Cruz Hightower R / Aluminum / 29 2020
2020 Mountain
Estimate price |
3,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Yari RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 167cm
SM Low
154cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 185cm
LG Low
174cm - 185cm
XL High
182cm - 194cm
XL Low
182cm - 194cm
XXL High
192cm - 200cm
XXL Low
192cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hightower R / Aluminum / 29
Suspension Fork
RockShox Yari RC 150mm 29"
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG1230 11-50t
Crank
SRAM NX Eagle 148 DUB, 30t - 170mm (S-L), 175mm (XL-XXL)
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i29 TCS 2.0 29" Rims
Spokes
DT Competition (32)
Tires
Front: Maxxis Minion DHR2 29"x2.4" 3C EXO TR, Rear: Maxxis Minion DHR2 29"x2.4" 3C EXO TR
Brakes
Brakes
SRAM Guide R
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Ride 50mm
Handlebar
Race Face Aeffect R 35x780
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle
Seatpost
Race Face Aeffect 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.31 mm | 1.32 mm | 1.29 mm | 1.31 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 745 mm | 745 mm | 774 mm | 774 mm | 798 mm | 798 mm | 827 mm | 827 mm | 862 mm | 862 mm |
| Rake | 52 mm | 53 mm | 52 mm | 52 mm | 52 mm | 52 mm | 53 mm | 53 mm | 52 mm | 47 mm |
| Trail | 114 mm | 115 mm | 114 mm | 116 mm | 114 mm | 116 mm | 112 mm | 115 mm | 114 mm | 121 mm |
| Stack | 598 mm | 600 mm | 607 mm | 609 mm | 616 mm | 618 mm | 634 mm | 636 mm | 657 mm | 659 mm |
| Reach | 425 mm | 422 mm | 450 mm | 447 mm | 470 mm | 467 mm | 490 mm | 487 mm | 515 mm | 512 mm |
| Top Tube Length | 563 mm | 564 mm | 591 mm | 593 mm | 615 mm | 616 mm | 642 mm | 643 mm | 676 mm | 677 mm |
| Seat Tube Angle | 77.1 ° | 76.7 ° | 77 ° | 76.6 ° | 76.8 ° | 76.5 ° | 76.6 ° | 76.3 ° | 76.3 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm | 130 mm | 155 mm | 155 mm |
| Chainstay Length | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm | 436 mm | 437 mm |
| Wheelbase | 1175 mm | 1176 mm | 1204 mm | 1205 mm | 1228 mm | 1229 mm | 1257 mm | 1258 mm | 1298 mm | 1293 mm |
| Bottom Bracket Drop | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm |
| Standover Height | 701 mm | 696 mm | 715 mm | 710 mm | 714 mm | 710 mm | 715 mm | 710 mm | 706 mm | 701 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 192 cm | 192 cm |
| Rider Max Height | 167 cm | 167 cm | 177 cm | 177 cm | 185 cm | 185 cm | 194 cm | 194 cm | 200 cm | 200 cm |
About this model
Hightower R / Aluminum / 29 is a Santacruz Hightower model. Santa Cruz launched 66 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Santa Cruz Hightower D / Aluminum / 29 2020 is the cheapest bike model and costs 2899$. Santa Cruz Hightower XX1 AXS Reserve / Carbon CC / 29 2020 is the most expensive one and costs 10499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 3499$. If we compare this with the average Trail bike cost we notice that the price is 26.68% higher.
Overview of components
Fork
The RockShox Yari RC is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float Performance DPS, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Santa Cruz Hightower R / Aluminum / 29 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Hightower R / Aluminum / 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 10 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Santa Cruz Hightower R / Aluminum / 29 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
