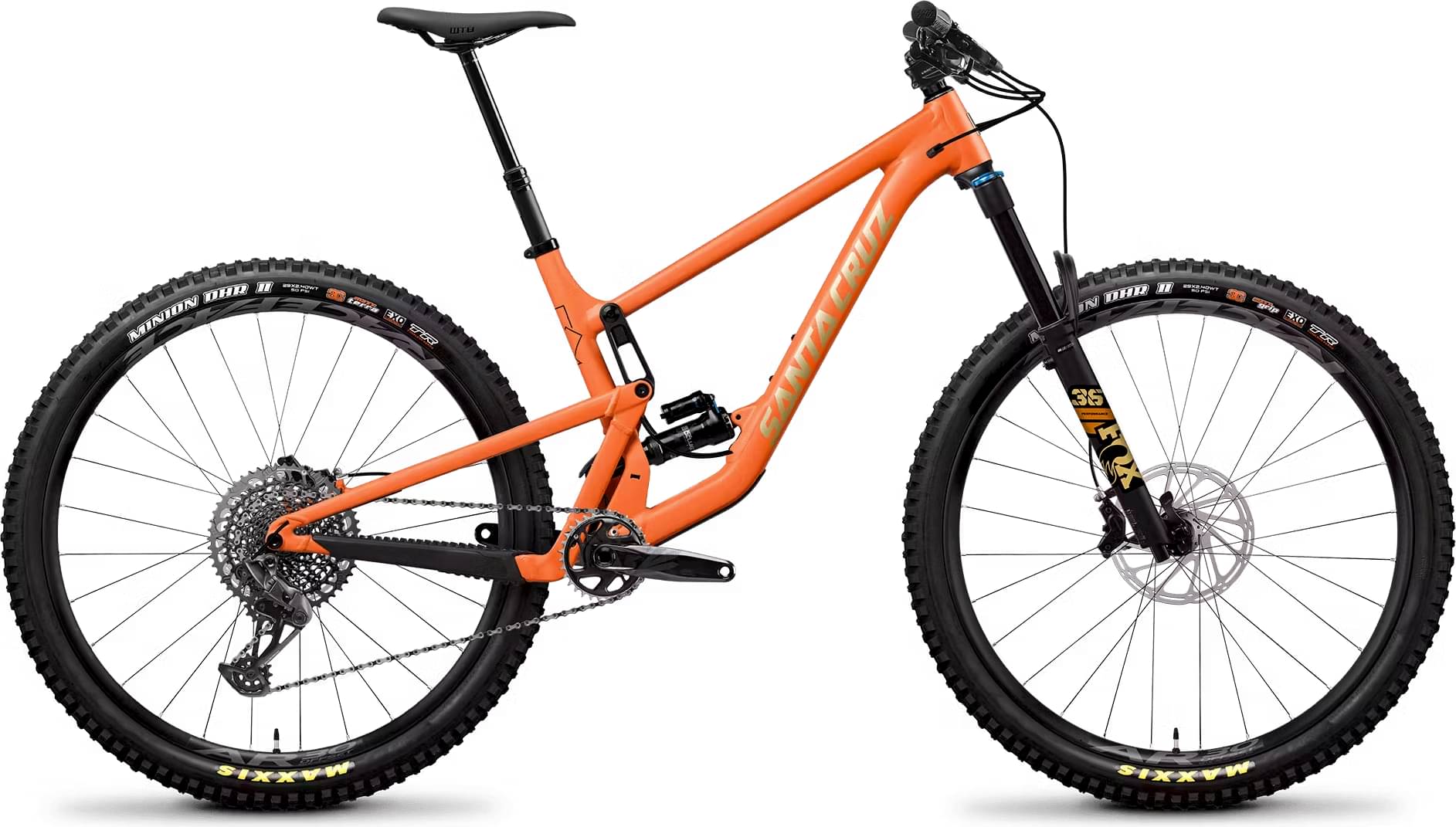

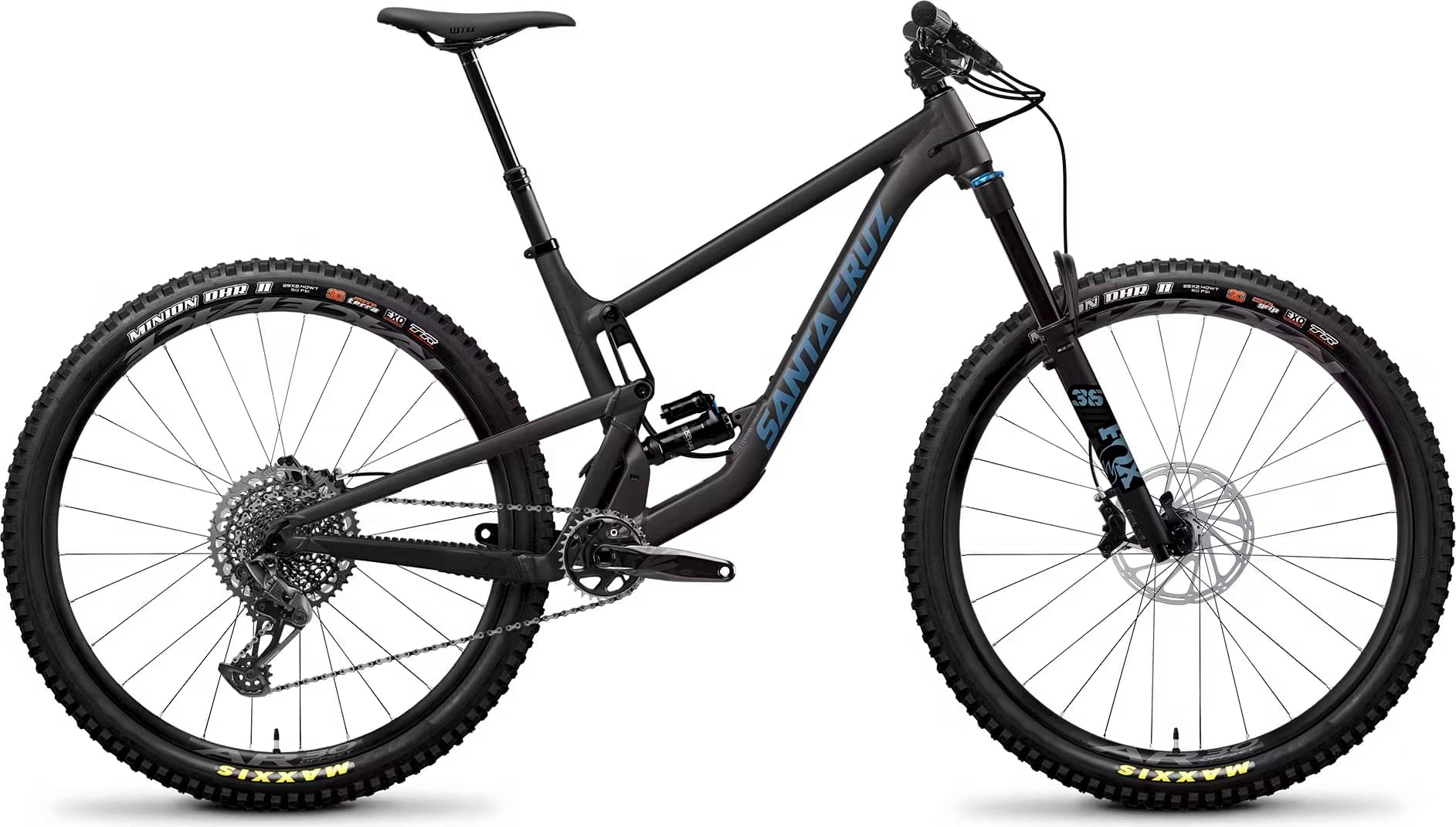

Santa Cruz HIGHTOWER S / AL 2023
2023 Mountain
Estimate price |
5,249$
Weight | 14.49 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 185cm
LG Low
174cm - 185cm
XL High
183cm - 194cm
XL Low
183cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHTOWER S / AL
Suspension Fork
FOX 36 Float Performance, 150mm
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12spd
Shift Levers
SRAM GX Eagle, 12spd
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB 30t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
DT Swiss 370, 15x110, 6 bolt, 28h
Rear Hub
DT Swiss 370, 12x148, XD, 28h
Rims
Front: RaceFace AR Offset 30 29" Rims, Rear: RaceFace AR Offset 30 29" Rims
Tires
Front: Maxxis Minion DHR II 29"x2.4", 3C, MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR 29"x2.4", 3C, EXO, MaxxTerra
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Burgtec Enduro MK3
Handlebar
Burgtec Alloy Bar
Grips
Santa Cruz House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Cromoly SL Fusion Saddle
Seatpost
RockShox Reverb Stealth, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.31 mm | 1.32 mm | 1.29 mm | 1.31 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 745 mm | 745 mm | 774 mm | 774 mm | 798 mm | 798 mm | 827 mm | 827 mm | 862 mm | 862 mm |
| Rake | 52 mm | 53 mm | 52 mm | 52 mm | 52 mm | 52 mm | 53 mm | 53 mm | 52 mm | 47 mm |
| Trail | 114 mm | 115 mm | 114 mm | 116 mm | 114 mm | 116 mm | 112 mm | 115 mm | 114 mm | 121 mm |
| Stack | 598 mm | 600 mm | 607 mm | 609 mm | 616 mm | 618 mm | 634 mm | 636 mm | 657 mm | 659 mm |
| Reach | 425 mm | 422 mm | 450 mm | 447 mm | 470 mm | 467 mm | 490 mm | 487 mm | 515 mm | 512 mm |
| Top Tube Length | 563 mm | 564 mm | 591 mm | 593 mm | 615 mm | 616 mm | 642 mm | 643 mm | 676 mm | 677 mm |
| Seat Tube Angle | 77.1 ° | 76.7 ° | 77 ° | 76.6 ° | 76.8 ° | 76.5 ° | 76.6 ° | 76.3 ° | 76.3 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm | 130 mm | 155 mm | 155 mm |
| Chainstay Length | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm | 436 mm | 437 mm |
| Wheelbase | 1175 mm | 1176 mm | 1204 mm | 1205 mm | 1228 mm | 1229 mm | 1257 mm | 1258 mm | 1298 mm | 1293 mm |
| Bottom Bracket Drop | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm |
| Standover Height | 701 mm | 696 mm | 715 mm | 710 mm | 714 mm | 710 mm | 715 mm | 710 mm | 706 mm | 701 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 183 cm | 183 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 185 cm | 185 cm | 194 cm | 194 cm | 201 cm | 201 cm |
About this model
HIGHTOWER S / AL completes the Santacruz Hightower model. 69 bikes variations carry this model name so far. You can easily view all of the Santacruz Hightower bikes models from 2023, here.
Model range prices
The most economical model, the Santa Cruz HIGHTOWER D / AL 2023 has a starting price of 3799$. Santa Cruz HIGHTOWER X01 AXS RSV / Carbon CC 2023 on the other hand is the most expensive at 10349$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 5249$. If we compare this with the average Trail bike cost we notice that the price is 90.04% higher.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.49 kg (31.94 lbs), the HIGHTOWER S / AL model is considerably heavier than average. In other words, this model is 11.63% heavier than the average Trail bike.
Overview of components
Fork
The HIGHTOWER S / AL comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Santa Cruz HIGHTOWER S / AL bike has the RockShox Super Deluxe Select+ model installed, and has a travel of 145mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the HIGHTOWER S / AL bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz HIGHTOWER S / AL is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
HIGHTOWER S / AL comes in 10 sizes, that range from 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Santa Cruz HIGHTOWER S / AL includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
