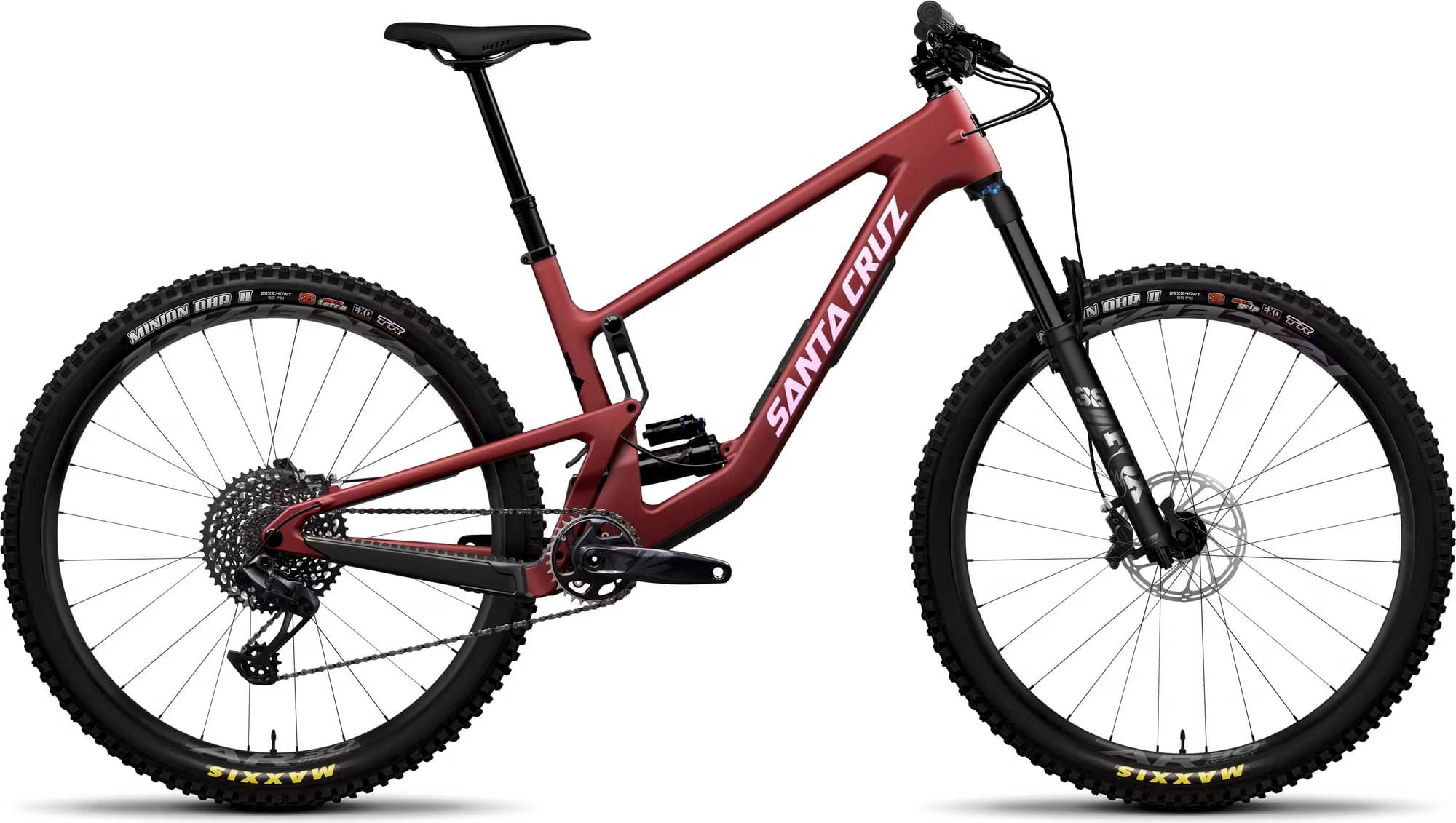

Santa Cruz HIGHTOWER S / Carbon C 2024
2024 Mountain
Estimate price |
5,899$
Weight | 14.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHTOWER S / Carbon C
Suspension Fork
FOX 36 Float Performance, 150mm
Rear Shock
RockShox Super Deluxe Select+, 210x55
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12spd
Shift Levers
SRAM GX Eagle, 12spd
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
DT Swiss 370, 15x110, 6-Bolt, 28h
Rear Hub
DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rims
Front: RaceFace AR Offset 30, 29", Rear: RaceFace AR Offset 30, 29"
Tires
Front: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, Rear: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Burgtec RideWide Alloy
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado, CroMo
Seatpost
OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.38 mm | 1.39 mm | 1.34 mm | 1.35 mm | 1.32 mm | 1.33 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 339 mm | 342 mm | 338 mm | 342 mm | 338 mm | 342 mm | 338 mm | 342 mm | 338 mm |
| Front Center | 752 mm | 752 mm | 783 mm | 783 mm | 807 mm | 807 mm | 836 mm | 836 mm | 867 mm | 867 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm |
| Trail | 126 mm | 130 mm | 126 mm | 129 mm | 126 mm | 130 mm | 126 mm | 130 mm | 126 mm | 130 mm |
| Stack | 608 mm | 610 mm | 622 mm | 624 mm | 631 mm | 633 mm | 649 mm | 651 mm | 662 mm | 665 mm |
| Reach | 427 mm | 424 mm | 452 mm | 449 mm | 472 mm | 469 mm | 492 mm | 489 mm | 517 mm | 514 mm |
| Top Tube Length | 568 mm | 569 mm | 596 mm | 597 mm | 623 mm | 624 mm | 644 mm | 645 mm | 671 mm | 672 mm |
| Seat Tube Angle | 77 ° | 76.7 ° | 77 ° | 76.7 ° | 76.7 ° | 76.4 ° | 76.9 ° | 76.6 ° | 76.9 ° | 76.7 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 125 mm | 125 mm | 145 mm | 145 mm | 160 mm | 160 mm |
| Chainstay Length | 428 mm | 429 mm | 431 mm | 432 mm | 434 mm | 435 mm | 437 mm | 438 mm | 440 mm | 441 mm |
| Wheelbase | 1180 mm | 1180 mm | 1214 mm | 1215 mm | 1241 mm | 1242 mm | 1273 mm | 1273 mm | 1307 mm | 1308 mm |
| Bottom Bracket Drop | 31 mm | 34 mm | 31 mm | 34 mm | 31 mm | 34 mm | 31 mm | 34 mm | 31 mm | 34 mm |
| Standover Height | 703 mm | 698 mm | 705 mm | 700 | 708 mm | 703 mm | 711 mm | 706 mm | 716 mm | 711 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
Model Overview
HIGHTOWER S / Carbon C belongs to the Santacruz Hightower model. 66 bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Santa Cruz HIGHTOWER R / Carbon C 2024 is the cheapest bike model and costs 4799$. Santa Cruz HIGHTOWER XX AXS RSV / Carbon CC 2024 is the most expensive one and costs 10999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2024 and its price was 5899$. Comparing this to the average Trail bike price, we see that the price is 113.58% higher.
Average weight for Trail bikes
The average weight for Trail bikes is 12.88 kg (28.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
HIGHTOWER S / Carbon C weighs 14.34 kg (31.61 lbs) and is considerably heavier than the average. In conclusion, the average Trail bike weighs 11.34% less than HIGHTOWER S / Carbon C.
Overview of components
Fork
The HIGHTOWER S / Carbon C comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The HIGHTOWER S / Carbon C has a rear shock with a travel of 145mm. The model RockShox Super Deluxe Select+ is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the HIGHTOWER S / Carbon C model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 10 sizes. They vary from 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Santa Cruz HIGHTOWER S / Carbon C comes with a dropper post. Therefore, climbing or descending will be a breeze.
