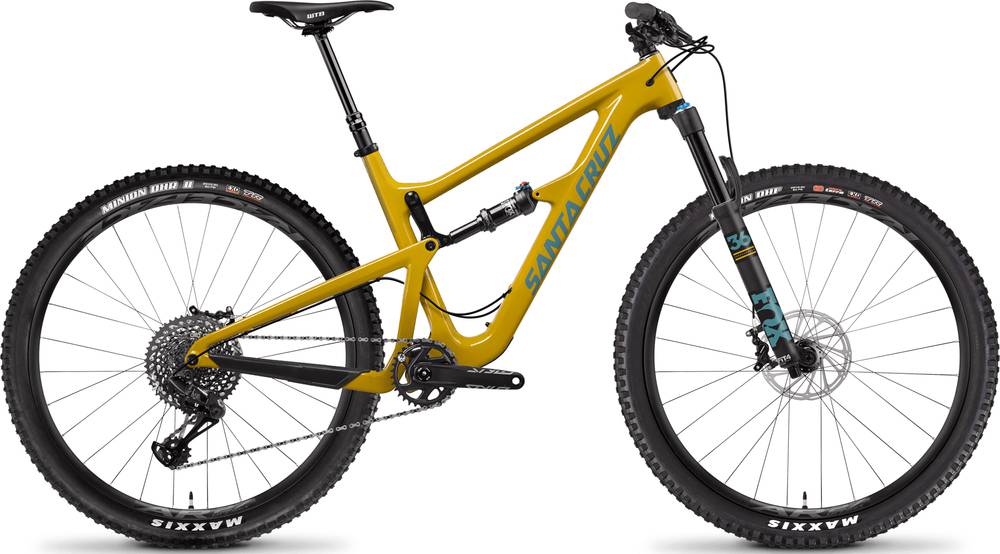

Santa Cruz Hightower S / Carbon C / 29 2019
2019 Mountain
Estimate price |
4,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hightower S / Carbon C / 29
Suspension Fork
FOX 36 Float Performance, 140mm, 29"
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG1275 Eagle 10-50T
Crank
SRAM Stylo 7k 148 DUB, 32t - 170mm (XS-S), 175mm (M-XL)
Chain
SRAM GX Eagle 12 SPD
Wheels
Front Hub
DT 370 15x110 32H (28H w/Reserve upgrade)
Rear Hub
DT 370 12x148 32H (28H w/Reserve upgrade)
Rims
Race Face AR Offset 27 29" Rims
Spokes
DT Competition (32)
Tires
Maxxis Minion 29x2.3 DHF 3c EXO TR
Brakes
Brakes
SRAM Guide R
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Aeffect R 50mm
Handlebar
Race Face Aeffect R
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Pro
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 703 mm | 730 mm | 752 mm | 781 mm | 818 mm |
| Rake | 52 mm | 52 mm | 53 mm | 51 mm | 54 mm |
| Trail | 102 mm | 102 mm | 101 mm | 104 mm | 100 mm |
| Stack | 611 mm | 616 mm | 620 mm | 630 mm | 648 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm | 512 mm |
| Top Tube Length | 581 mm | 608 mm | 629 mm | 657 mm | 692 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 490 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1145 mm | 1172 mm | 1194 mm | 1222 mm | 1262 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 717 mm | 717 mm | 720 mm | 727 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Hightower S / Carbon C / 29 is a Santacruz Hightower model. 66 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Santa Cruz Hightower R / Carbon C / 29 2019 is the most economical model, with a starting price of 3999$. Santa Cruz Hightower LT XTR Reserve / Carbon CC / 29 2019 on the other hand costs 9599$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2019 and its price was 4899$. Doing a quick comparison, we notice that Hightower S / Carbon C / 29 price is 77.37% higher than the average cost of a Trail bike.
Hightower S / Carbon C / 29 components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Hightower S / Carbon C / 29 has a rear shock with a travel of 135mm. The model FOX Float Performance DPS is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Santa Cruz Hightower S / Carbon C / 29 2019, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Hightower S / Carbon C / 29 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Hightower S / Carbon C / 29. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
