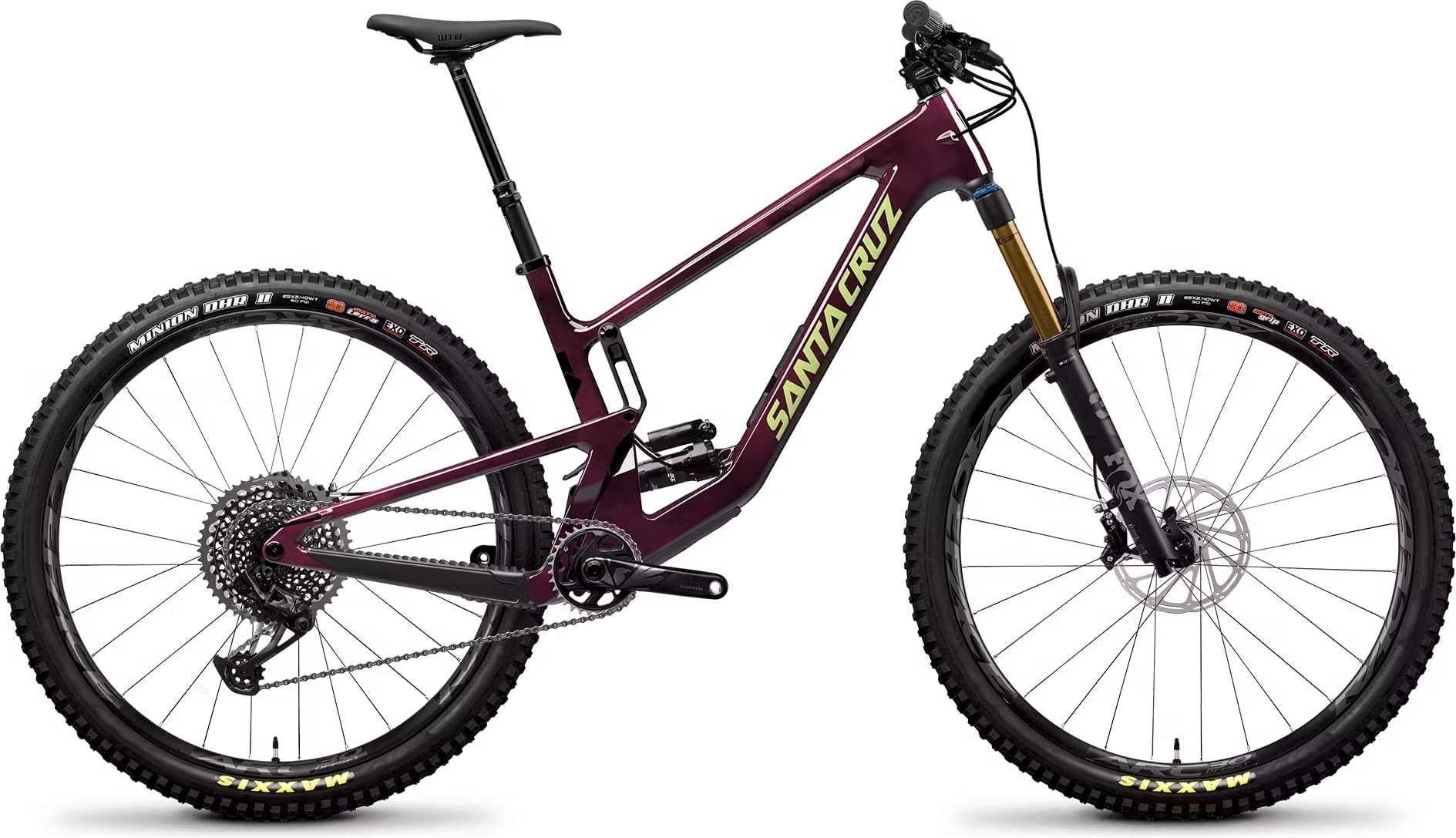

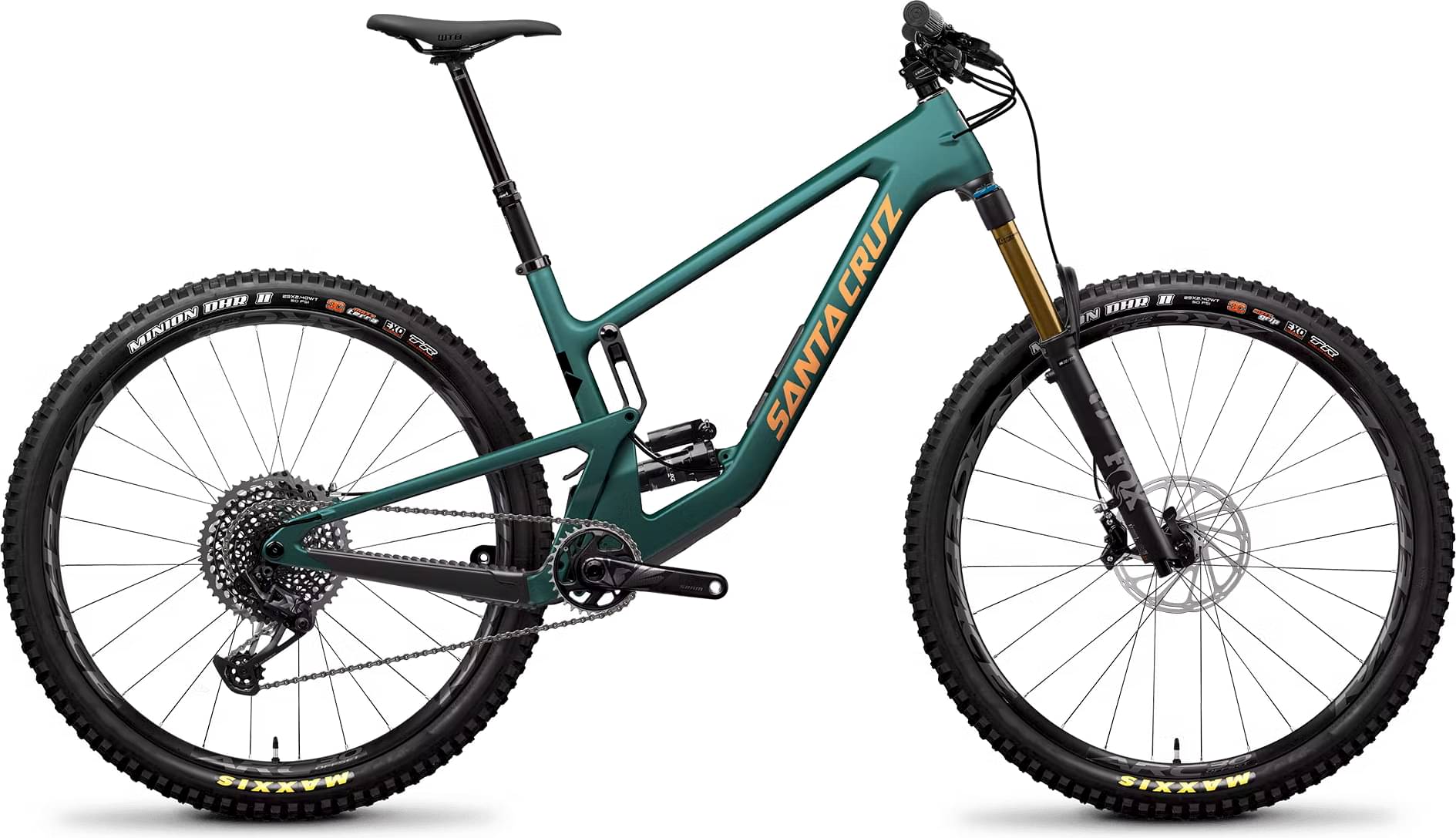

Santa Cruz HIGHTOWER X01 / Carbon CC 2023
2023 Mountain
Estimate price |
8,449$
Weight | 14.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHTOWER X01 / Carbon CC
Suspension Fork
FOX 36 Float Factory, 150mm
Rear Shock
Rockshox Super Deluxe Ultimate 210x55
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12spd
Shift Levers
SRAM X01 Eagle, 12spd
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM X1 Eagle Carbon 148 DUB 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
Front: i9 1/1, 15x110, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rear Hub
Front: i9 1/1, 15x110, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rims
Front: RaceFace ARC Offset 30 29", Rear: RaceFace ARC Offset 30 29"
Tires
Front: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO, TR
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Ti
Seatpost
RockShox Reverb Stealth, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.38 mm | 1.39 mm | 1.34 mm | 1.35 mm | 1.32 mm | 1.33 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 339 mm | 342 mm | 338 mm | 342 mm | 338 mm | 342 mm | 338 mm | 342 mm | 338 mm |
| Front Center | 752 mm | 752 mm | 783 mm | 783 mm | 807 mm | 807 mm | 836 mm | 836 mm | 867 mm | 867 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm |
| Trail | 126 mm | 130 mm | 126 mm | 129 mm | 126 mm | 130 mm | 126 mm | 130 mm | 126 mm | 130 mm |
| Stack | 608 mm | 610 mm | 622 mm | 624 mm | 631 mm | 633 mm | 649 mm | 651 mm | 662 mm | 665 mm |
| Reach | 427 mm | 424 mm | 452 mm | 449 mm | 472 mm | 469 mm | 492 mm | 489 mm | 517 mm | 514 mm |
| Top Tube Length | 568 mm | 569 mm | 596 mm | 597 mm | 623 mm | 624 mm | 644 mm | 645 mm | 671 mm | 672 mm |
| Seat Tube Angle | 77 ° | 76.7 ° | 77 ° | 76.7 ° | 76.7 ° | 76.4 ° | 76.9 ° | 76.6 ° | 76.9 ° | 76.7 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 125 mm | 125 mm | 145 mm | 145 mm | 160 mm | 160 mm |
| Chainstay Length | 428 mm | 429 mm | 431 mm | 432 mm | 434 mm | 435 mm | 437 mm | 438 mm | 440 mm | 441 mm |
| Wheelbase | 1180 mm | 1180 mm | 1214 mm | 1215 mm | 1241 mm | 1242 mm | 1273 mm | 1273 mm | 1307 mm | 1308 mm |
| Bottom Bracket Drop | 31 mm | 34 mm | 31 mm | 34 mm | 31 mm | 34 mm | 31 mm | 34 mm | 31 mm | 34 mm |
| Standover Height | 703 mm | 698 mm | 705 mm | 700 | 708 mm | 703 mm | 711 mm | 706 mm | 716 mm | 711 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
About this model
HIGHTOWER X01 / Carbon CC belongs to the Santacruz Hightower model. There are 66 bikes that carry this model name. You can easily view all of the Santacruz Hightower bikes models from 2023, here.
Model range prices
Santa Cruz HIGHTOWER R / Carbon C 2023 is the most economical model, with a starting price of 5499$. Santa Cruz HIGHTOWER X01 AXS RSV / Carbon CC 2023 on the other hand costs 10349$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 8449$. In conclusion, this bike price is 205.9% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.88 kg (28.4 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.1 kg (31.09 lbs), Santa Cruz bike is a bit heavier than average. In conclusion, the average Trail bike weighs 9.47% less than HIGHTOWER X01 / Carbon CC.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Rockshox Super Deluxe Ultimate 210×55, with a travel distance of 145mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the HIGHTOWER X01 / Carbon CC model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The HIGHTOWER X01 / Carbon CC comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 10 sizes. They vary from 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Santa Cruz model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
