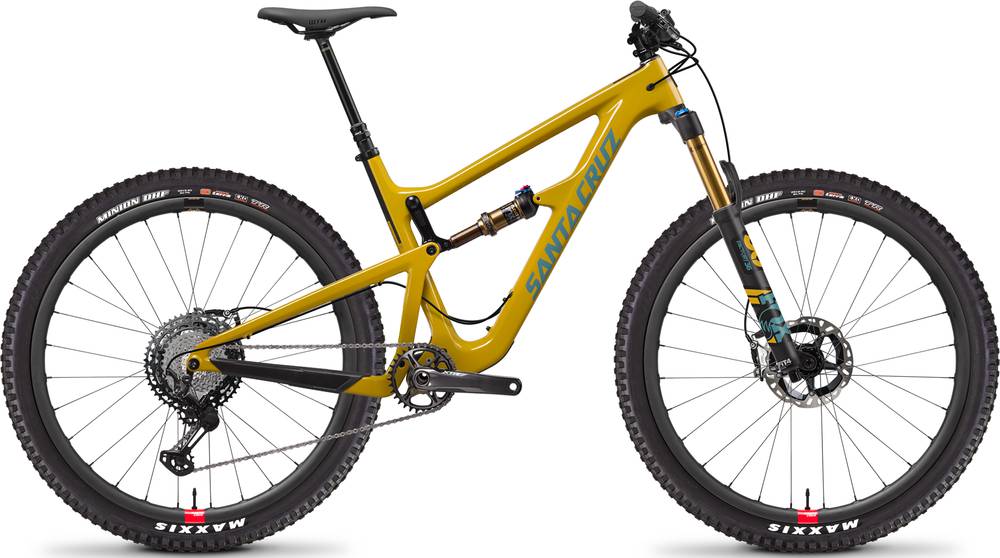

Santa Cruz Hightower XTR Reserve / Carbon CC / 29 2019
2019 Mountain
Estimate price |
9,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset XTR, e*thirteen TRS Race -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hightower XTR Reserve / Carbon CC / 29
Suspension Fork
FOX 36 Float Factory, 140mm, 29"
Rear Shock
FOX Float Factory DPS Kashima
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS, 11/12spd
Shift Levers
Shimano XTR M9100 SL, 12spd, I-Spec
Cassette
Shimano XTR, 12spd, 10-51
Crank
E13 TRSr, 30T, Boost, 170mm (S), 175mm (M-XXL)
Chain
Shimano XTR, 12spd, w/Quick Link
Wheels
Front Hub
DT Swiss 240, 15x110, Centerlock, 28h
Rear Hub
DT Swiss 240, 12x148, Micro Spline, 28h
Rims
Santa Cruz Reserve 27 Carbon Rim - 28h
Spokes
DT Competition Race (28)
Tires
Maxxis Minion 29x2.3 DHF 3c EXO TR
Brakes
Brakes
Shimano XTR M9120
Disk Rotors
Shimano XTR Ice. Tech Rotors, Centerlock, 180mm
Cockpit
Stem
Race Face Turbine R 50mm
Handlebar
SCB AM Flat Bar Carbon 31.8x780
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 110 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
Rockshox Reverb Stealth, Discrete Lever, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 703 mm | 730 mm | 752 mm | 781 mm | 818 mm |
| Rake | 52 mm | 52 mm | 53 mm | 51 mm | 54 mm |
| Trail | 102 mm | 102 mm | 101 mm | 104 mm | 100 mm |
| Stack | 611 mm | 616 mm | 620 mm | 630 mm | 648 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm | 512 mm |
| Top Tube Length | 581 mm | 608 mm | 629 mm | 657 mm | 692 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 490 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1145 mm | 1172 mm | 1194 mm | 1222 mm | 1262 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 717 mm | 717 mm | 720 mm | 727 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Hightower XTR Reserve / Carbon CC / 29 belongs to the Santacruz Hightower model. Santa Cruz launched 66 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Santa Cruz Hightower R / Carbon C / 29 2019 is the most affordable bike of this model and has a price of 3999$. On the other hand, Santa Cruz Hightower LT XTR Reserve / Carbon CC / 29 2019, is the most expensive and costs 9599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 9599$. In conclusion, this bike price is 247.54% more expensive than the price of the average Trail bike.
Hightower XTR Reserve / Carbon CC / 29 components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Santa Cruz Hightower XTR Reserve / Carbon CC / 29 bike has the FOX Float Factory DPS Kashima model installed, and has a travel of 135mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Hightower XTR Reserve / Carbon CC / 29 bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Hightower XTR Reserve / Carbon CC / 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Santa Cruz Hightower XTR Reserve / Carbon CC / 29 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
