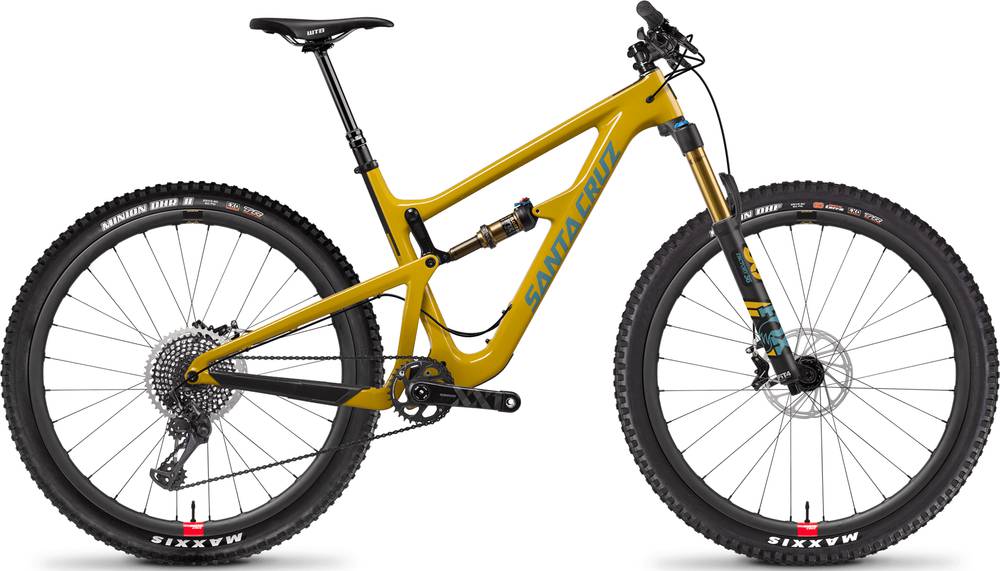

Santa Cruz Hightower XX1 Reserve / Carbon CC / 29 2019
2019 Mountain
Estimate price |
9,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hightower XX1 Reserve / Carbon CC / 29
Suspension Fork
FOX 36 Float Factory, 140mm, 29"
Rear Shock
FOX Float Factory DPS Kashima
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Shift Levers
SRAM XX1 Eagle
Cassette
SRAM XG1295 Eagle 10-50T
Crank
SRAM XX1 Eagle 148 DUB, 30t - 170mm (XS-S), 175mm (M-XL)
Chain
SRAM XX1 Eagle 12 SPD
Wheels
Front Hub
I9 15x110 28H
Rear Hub
I9 148x12 28H XD
Rims
Santa Cruz Reserve 27 Carbon Rim - 28h
Spokes
DT Competition Race (28)
Tires
Maxxis Minion 29x2.3 DHF 3c EXO TR
Brakes
Brakes
SRAM Guide Ultimate
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Turbine R 50mm
Handlebar
SCB AM Flat Bar Carbon 31.8x780
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 110 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 703 mm | 730 mm | 752 mm | 781 mm | 818 mm |
| Rake | 52 mm | 52 mm | 53 mm | 51 mm | 54 mm |
| Trail | 102 mm | 102 mm | 101 mm | 104 mm | 100 mm |
| Stack | 611 mm | 616 mm | 620 mm | 630 mm | 648 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm | 512 mm |
| Top Tube Length | 581 mm | 608 mm | 629 mm | 657 mm | 692 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 490 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1145 mm | 1172 mm | 1194 mm | 1222 mm | 1262 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 717 mm | 717 mm | 720 mm | 727 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Hightower XX1 Reserve / Carbon CC / 29 belongs to the Santacruz Hightower model. 66 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Santa Cruz Hightower R / Carbon C / 29 2019 has a starting price of 3999$. Santa Cruz Hightower LT XTR Reserve / Carbon CC / 29 2019 on the other hand is the most expensive at 9599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Santa Cruz released this model in 2019, its price was 9299$. Comparing this to the average Trail bike price, we see that the price is 236.68% higher.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX Float Factory DPS Kashima rear shock model, which has a travel of 135mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Hightower XX1 Reserve / Carbon CC / 29 bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Hightower XX1 Reserve / Carbon CC / 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
