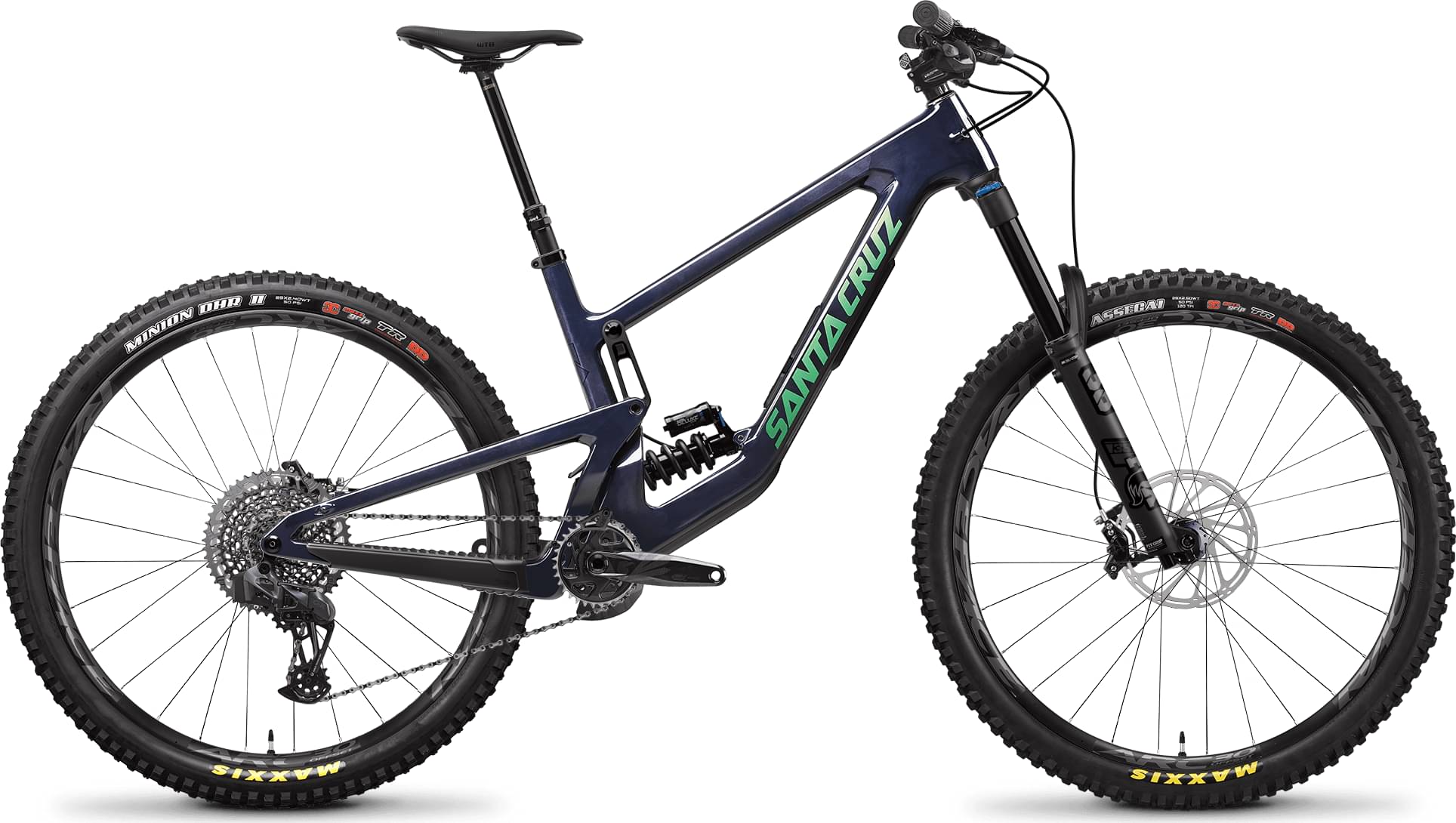

Santa Cruz MEGATOWER GX AXS Coil / Carbon C 2023
2023 Mountain
Estimate price |
9,306$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MEGATOWER GX AXS Coil / Carbon C
Suspension Fork
FOX 38 Float Performance Elite, 170mm
Rear Shock
RockShox Super Deluxe Select+ Coil 230x62.5
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS, 12spd
Shift Levers
SRAM GX AXS Shifter
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB 30t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Rims
RaceFace ARC Offset 30 29" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5", 3C MaxxGRIP, Double Down, Rear: Maxxis Minion DHR II 29"x2.4", 3C Maxx- Grip, DoubleDown
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Burgtec Enduro MK3 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Cromoly SL Fusion Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth, 31.6 or OneUp Dropper V2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.45 mm | 1.38 mm | 1.39 mm | 1.35 mm | 1.36 mm | 1.33 mm | 1.34 mm | 1.29 mm | 1.3 mm |
| Bottom Bracket Height | 346 mm | 342.5 mm | 346 mm | 342.5 mm | 346 mm | 342.5 mm | 346 mm | 342.5 mm | 346 mm | 342.5 mm |
| Front Center | 770 mm | 770 mm | 799 mm | 799 mm | 826 mm | 826 mm | 855 mm | 855 mm | 886 mm | 886 mm |
| Rake | 46 mm | 45 mm | 45 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 133 mm | 136 mm | 134 mm | 136 mm | 133 mm | 136 mm | 133 mm | 136 mm | 134 mm | 136 mm |
| Stack | 613 mm | 615 mm | 622 mm | 624 mm | 635 mm | 637 mm | 653 mm | 655 mm | 667 mm | 669 mm |
| Reach | 427 mm | 424 mm | 452 mm | 449 mm | 472 mm | 469 mm | 492 mm | 489 mm | 517 mm | 514 mm |
| Top Tube Length | 567 mm | 567 mm | 591 mm | 592 mm | 610 mm | 610 mm | 634 mm | 635 mm | 663 mm | 664 mm |
| Seat Tube Angle | 77.24 ° | 77 ° | 77.42 ° | 77.2 ° | 77.8 ° | 77.5 ° | 77.8 ° | 77.5 ° | 77.8 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm | 150 mm | 150 mm |
| Chainstay Length | 433 mm | 434 mm | 434 mm | 435 mm | 437 mm | 438 mm | 440 mm | 441 mm | 444 mm | 445 mm |
| Wheelbase | 1203 mm | 1203 mm | 1233 mm | 1234 mm | 1263 mm | 1263 mm | 1295 mm | 1295 mm | 1330 mm | 1331 mm |
| Bottom Bracket Drop | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm |
| Standover Height | 706 mm | 702 mm | 713 mm | 709 mm | 720 mm | 715 mm | 719 mm | 714 mm | 721 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
MEGATOWER GX AXS Coil / Carbon C completes the Santacruz Megatower model. Santa Cruz launched 55 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Santa Cruz MEGATOWER R / Carbon C 2023 is the most economical model, with a starting price of 6157$. Santa Cruz MEGATOWER XX1 AXS Flight Attendant RSV / Carbon CC 2023 on the other hand costs 13999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8493$. If we compare this with the average Enduro bike cost we notice that the price is 135.98% more expensive.
MEGATOWER GX AXS Coil / Carbon C components
Fork
The Fox Performance Elite Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Santa Cruz MEGATOWER GX AXS Coil / Carbon C bike has the RockShox Super Deluxe Select+ Coil 230×62.5 model installed, and has a travel of 165mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the MEGATOWER GX AXS Coil / Carbon C model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MEGATOWER GX AXS Coil / Carbon C comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the MEGATOWER GX AXS Coil / Carbon C. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
