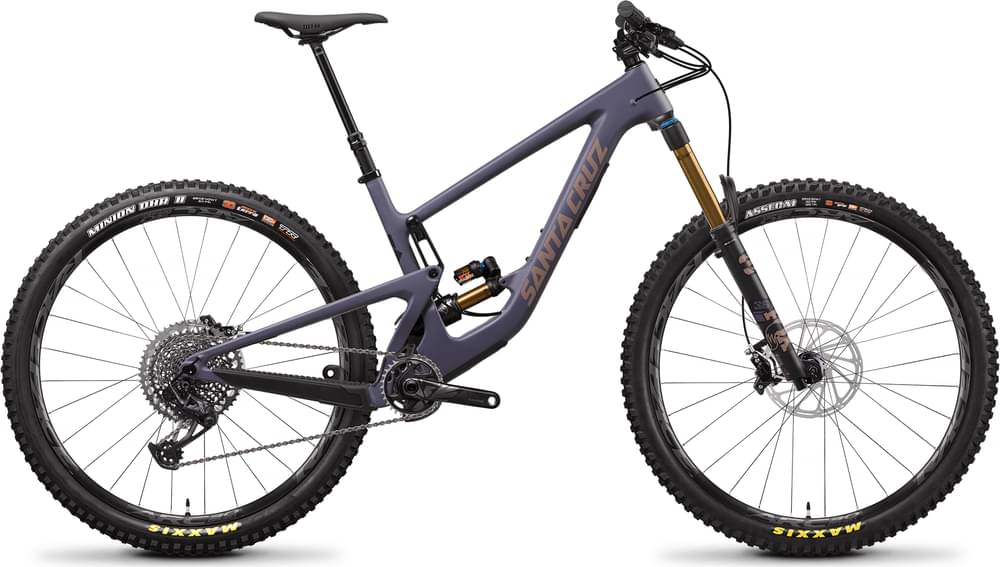

Santa Cruz Megatower X01 / Air / Carbon CC / 29 2022
2022 Mountain
Estimate price |
8,449$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
157cm - 166cm
SM Low
157cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 185cm
LG Low
174cm - 185cm
XL High
183cm - 194cm
XL Low
183cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Megatower X01 / Air / Carbon CC / 29
Suspension Fork
FOX 36 Float Factory, 160mm
Rear Shock
Fox Float X2 Factory 2-Position lever
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG1295 Eagle, 12spd, 10-52t
Crank
SRAM X1 Eagle DUB 30t
Bottom Bracket
SRAM DUB 68/73mm
Chain
SRAM X01 Eagle 12 SPD
Chain Guide
OneUp Bash
Wheels
Front Hub
Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Rims
Race Face ARC Offset 30 29" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, EXO+, TR, Rear: Maxxis Minion DHR II 29"x2.4", 3C, EXO+
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM HS2 Rotor 200mm
Cockpit
Stem
Burgtec Enduro MK3, 42.5mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
WTB Silverado Team Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.37 mm | 1.39 mm | 1.33 mm | 1.34 mm | 1.31 mm | 1.33 mm | 1.29 mm | 1.31 mm |
| Bottom Bracket Height | 343 mm | 340 mm | 343 mm | 340 mm | 343 mm | 340 mm | 343 mm | 340 mm | 343 mm | 340 mm |
| Front Center | 743 mm | 743 mm | 772 mm | 772 mm | 796 mm | 796 mm | 825 mm | 825 mm | 860 mm | 860 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 127 mm | 125 mm | 127 mm | 126 mm | 127 mm | 125 mm | 128 mm | 126 mm | 128 mm |
| Stack | 604 mm | 606 mm | 613 mm | 615 mm | 622 mm | 624 mm | 640 mm | 642 mm | 663 mm | 665 mm |
| Reach | 422 mm | 419 mm | 447 mm | 444 mm | 467 mm | 464 mm | 487 mm | 484 mm | 512 mm | 509 mm |
| Top Tube Length | 564 mm | 565 mm | 593 mm | 594 mm | 616 mm | 617 mm | 643 mm | 645 mm | 677 mm | 679 mm |
| Seat Tube Angle | 76.8 ° | 76.5 ° | 76.7 ° | 76.4 ° | 76.6 ° | 76.3 ° | 76.3 ° | 76 ° | 76 ° | 75.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65 ° | 64.7 ° | 65 ° | 64.7 ° | 65 ° | 64.7 ° | 65 ° | 64.7 ° | 65 ° | 64.7 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm | 130 mm | 155 mm | 155 mm |
| Chainstay Length | 432 mm | 433 mm | 432 mm | 433 mm | 432 mm | 433 mm | 432 mm | 433 mm | 432 mm | 433 mm |
| Wheelbase | 1175 mm | 1176 mm | 1204 mm | 1205 mm | 1228 mm | 1229 mm | 1257 mm | 1257 mm | 1292 mm | 1293 mm |
| Bottom Bracket Drop | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm |
| Standover Height | 699 mm | 695 mm | 711 mm | 706 mm | 710 mm | 705 mm | 708 mm | 702 mm | 705 mm | 700 |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 157 cm | 164 cm | 164 cm | 174 cm | 174 cm | 183 cm | 183 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 185 cm | 185 cm | 194 cm | 194 cm | 201 cm | 201 cm |
About this model
Megatower X01 / Air / Carbon CC / 29 is a Santacruz Megatower model. Santa Cruz launched 55 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Santa Cruz Megatower R / Carbon C / 29 2022 is the most economical model, with a starting price of 5149$. Santa Cruz Megatower X01 AXS / RSV / Carbon C / 29 2022 on the other hand costs 10249$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Santa Cruz Megatower X01 / Air / Carbon CC / 29 price was 8449$. If we compare this with the average Enduro bike cost we notice that the price is 134.76% more expensive.
Overview of components
Fork
Santa Cruz Megatower X01 / Air / Carbon CC / 29 2022 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Float X2 Factory 2-Position lever model, with a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Megatower X01 / Air / Carbon CC / 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Santa Cruz Megatower X01 / Air / Carbon CC / 29 bike has 10 sizes, in the range of 157 cm – 201 cm (5.15 ft – 6.59 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Megatower X01 / Air / Carbon CC / 29. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
