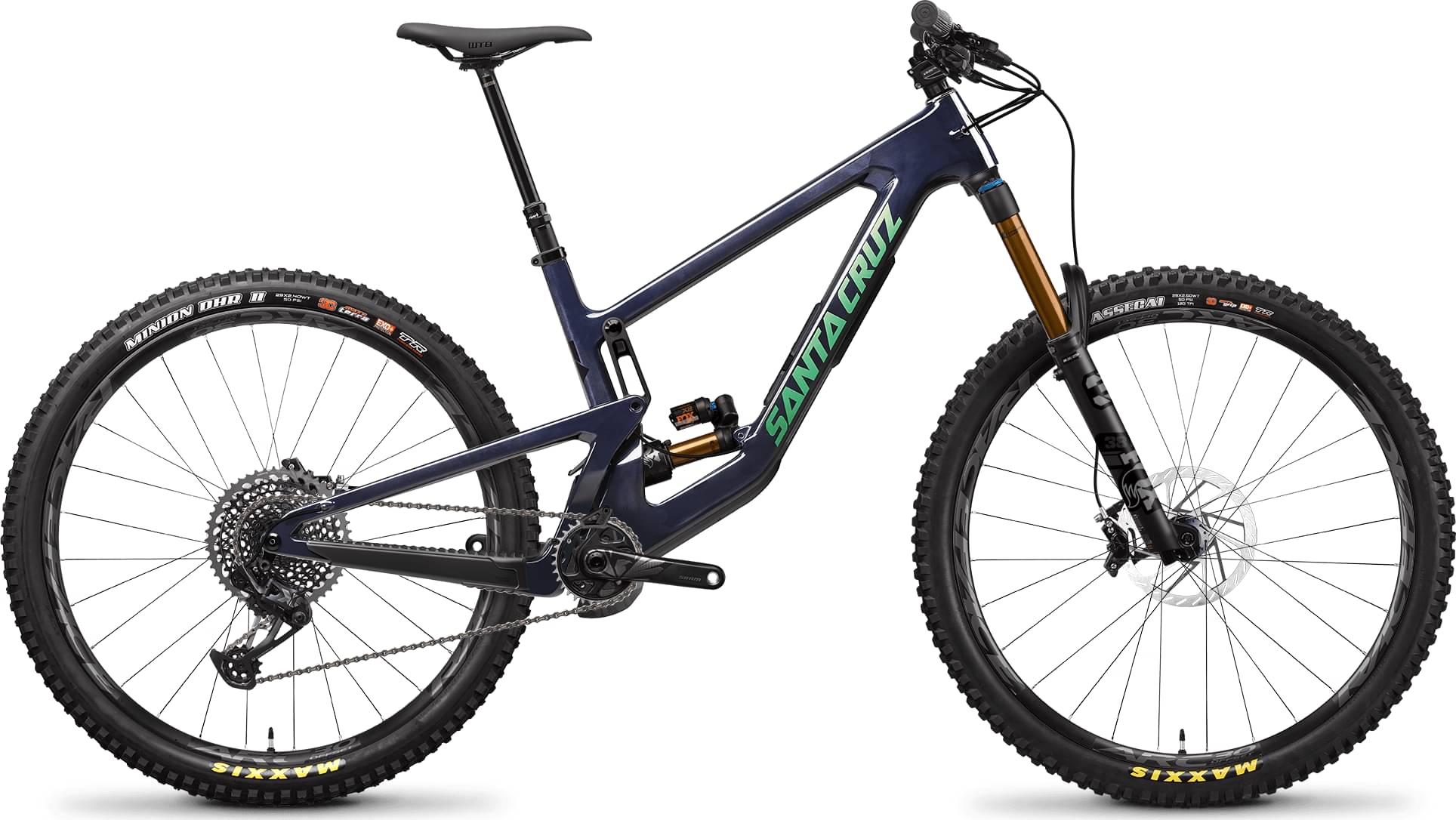

Santa Cruz MEGATOWER X01 / Carbon CC 2023
2023 Mountain
Estimate price |
10,702$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MEGATOWER X01 / Carbon CC
Suspension Fork
FOX 38 Float Factory, 170mm
Rear Shock
FOX Float X2 Factory 2-Position lever 230x62.5
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12spd
Shift Levers
SRAM X01 Eagle, 12spd
Cassette
SRAM XG1295 Eagle, 12spd, 10-50t
Crank
SRAM X1 Eagle 148 DUB 30t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM X01 Eagle, 12spd
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Rims
RaceFace ARC Offset 30 29" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5" EXO+, 3C MaxxGrip, Rear: Maxxis Minion DHR II 29"x2.4" EXO+, 3C MaxxTerra
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM HS2 Rotor 200mm
Cockpit
Stem
Burgtec Enduro MK3 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth, 31.6 or OneUp Dropper V2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.45 mm | 1.38 mm | 1.39 mm | 1.35 mm | 1.36 mm | 1.33 mm | 1.34 mm | 1.29 mm | 1.3 mm |
| Bottom Bracket Height | 346 mm | 342.5 mm | 346 mm | 342.5 mm | 346 mm | 342.5 mm | 346 mm | 342.5 mm | 346 mm | 342.5 mm |
| Front Center | 770 mm | 770 mm | 799 mm | 799 mm | 826 mm | 826 mm | 855 mm | 855 mm | 886 mm | 886 mm |
| Rake | 46 mm | 45 mm | 45 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 133 mm | 136 mm | 134 mm | 136 mm | 133 mm | 136 mm | 133 mm | 136 mm | 134 mm | 136 mm |
| Stack | 613 mm | 615 mm | 622 mm | 624 mm | 635 mm | 637 mm | 653 mm | 655 mm | 667 mm | 669 mm |
| Reach | 427 mm | 424 mm | 452 mm | 449 mm | 472 mm | 469 mm | 492 mm | 489 mm | 517 mm | 514 mm |
| Top Tube Length | 567 mm | 567 mm | 591 mm | 592 mm | 610 mm | 610 mm | 634 mm | 635 mm | 663 mm | 664 mm |
| Seat Tube Angle | 77.24 ° | 77 ° | 77.42 ° | 77.2 ° | 77.8 ° | 77.5 ° | 77.8 ° | 77.5 ° | 77.8 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm | 150 mm | 150 mm |
| Chainstay Length | 433 mm | 434 mm | 434 mm | 435 mm | 437 mm | 438 mm | 440 mm | 441 mm | 444 mm | 445 mm |
| Wheelbase | 1203 mm | 1203 mm | 1233 mm | 1234 mm | 1263 mm | 1263 mm | 1295 mm | 1295 mm | 1330 mm | 1331 mm |
| Bottom Bracket Drop | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm |
| Standover Height | 706 mm | 702 mm | 713 mm | 709 mm | 720 mm | 715 mm | 719 mm | 714 mm | 721 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
MEGATOWER X01 / Carbon CC is a Santacruz Megatower model. There are 55 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Santa Cruz MEGATOWER R / Carbon C 2023 has a starting price of 6157$. Santa Cruz MEGATOWER XX1 AXS Flight Attendant RSV / Carbon CC 2023 on the other hand is the most expensive at 13999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Santa Cruz released this model in 2023, its price was 9767$. In conclusion, this bike price is 171.38% more expensive than the price of the average Enduro bike.
Overview of components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The MEGATOWER X01 / Carbon CC has a rear shock with a travel of 165mm. The model FOX Float X2 Factory 2-Position lever 230×62.5 is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Santa Cruz MEGATOWER X01 / Carbon CC 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the MEGATOWER X01 / Carbon CC. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
