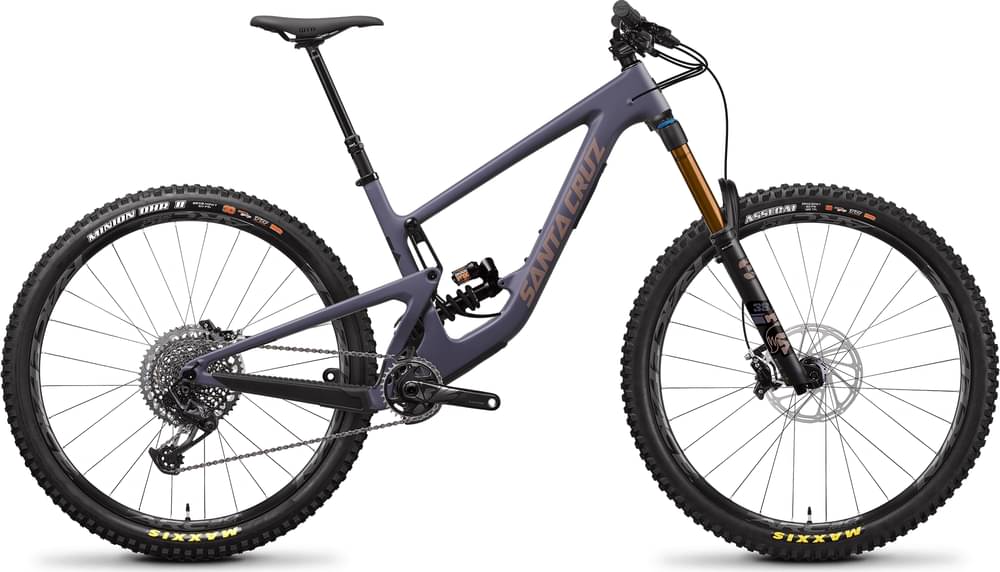

Santa Cruz Megatower X01 / Coil / Carbon C / 29 2022
2022 Mountain
Estimate price |
8,449$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 185cm
LG Low
174cm - 185cm
XL High
183cm - 194cm
XL Low
183cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Megatower X01 / Coil / Carbon C / 29
Suspension Fork
FOX 38 Float Factory, 170mm, 29"
Rear Shock
Fox DH X2 Factory Coil 2-Position Lever (400 S, 450 M, 500 L-XL)
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG1295 Eagle, 12spd, 10-52t
Crank
SRAM X1 Eagle DUB 30t
Bottom Bracket
SRAM DUB 68/73mm
Chain
SRAM X01 Eagle 12 SPD
Chain Guide
OneUp Bash
Wheels
Front Hub
Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Rims
Race Face ARC Offset 30 29" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Double Down, TR, Rear: Maxxis Minion DHR II 29"x2.4", 3C, MaxxGRIP, Double Down, TR
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM HS2 Rotor 200mm
Cockpit
Stem
Burgtec Enduro MK3, 42.5mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
WTB Silverado Team Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.37 mm | 1.39 mm | 1.33 mm | 1.34 mm | 1.31 mm | 1.33 mm | 1.29 mm | 1.31 mm |
| Bottom Bracket Height | 343 mm | 340 mm | 343 mm | 340 mm | 343 mm | 340 mm | 343 mm | 340 mm | 343 mm | 340 mm |
| Front Center | 743 mm | 743 mm | 772 mm | 772 mm | 796 mm | 796 mm | 825 mm | 825 mm | 860 mm | 860 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 127 mm | 125 mm | 127 mm | 126 mm | 127 mm | 125 mm | 128 mm | 126 mm | 128 mm |
| Stack | 604 mm | 606 mm | 613 mm | 615 mm | 622 mm | 624 mm | 640 mm | 642 mm | 663 mm | 665 mm |
| Reach | 422 mm | 419 mm | 447 mm | 444 mm | 467 mm | 464 mm | 487 mm | 484 mm | 512 mm | 509 mm |
| Top Tube Length | 564 mm | 565 mm | 593 mm | 594 mm | 616 mm | 617 mm | 643 mm | 645 mm | 677 mm | 679 mm |
| Seat Tube Angle | 76.8 ° | 76.5 ° | 76.7 ° | 76.4 ° | 76.6 ° | 76.3 ° | 76.3 ° | 76 ° | 76 ° | 75.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65 ° | 64.7 ° | 65 ° | 64.7 ° | 65 ° | 64.7 ° | 65 ° | 64.7 ° | 65 ° | 64.7 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm | 130 mm | 155 mm | 155 mm |
| Chainstay Length | 432 mm | 433 mm | 432 mm | 433 mm | 432 mm | 433 mm | 432 mm | 433 mm | 432 mm | 433 mm |
| Wheelbase | 1175 mm | 1176 mm | 1204 mm | 1205 mm | 1228 mm | 1229 mm | 1257 mm | 1257 mm | 1292 mm | 1293 mm |
| Bottom Bracket Drop | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm |
| Standover Height | 699 mm | 695 mm | 711 mm | 706 mm | 710 mm | 705 mm | 708 mm | 702 mm | 705 mm | 700 |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 183 cm | 183 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 185 cm | 185 cm | 194 cm | 194 cm | 201 cm | 201 cm |
About this model
Megatower X01 / Coil / Carbon C / 29 completes the Santacruz Megatower model. Santa Cruz released 55 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Santa Cruz Megatower R / Carbon C / 29 2022 is the cheapest bike model and costs 5149$. Santa Cruz Megatower X01 AXS / RSV / Carbon C / 29 2022 is the most expensive one and costs 10249$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Santa Cruz Megatower X01 / Coil / Carbon C / 29 price was 8449$. If we compare this with the average Enduro bike cost we notice that the price is 134.76% higher.
Megatower X01 / Coil / Carbon C / 29 components
Fork
Santa Cruz Megatower X01 / Coil / Carbon C / 29 2022 bike is equipped with the Fox Factory Float 38 fork, and has 170mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox DH X2 Factory Coil 2-Position Lever (400 S, with a travel distance of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Megatower X01 / Coil / Carbon C / 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Megatower X01 / Coil / Carbon C / 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Megatower X01 / Coil / Carbon C / 29 comes in 10 sizes, that range from 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
