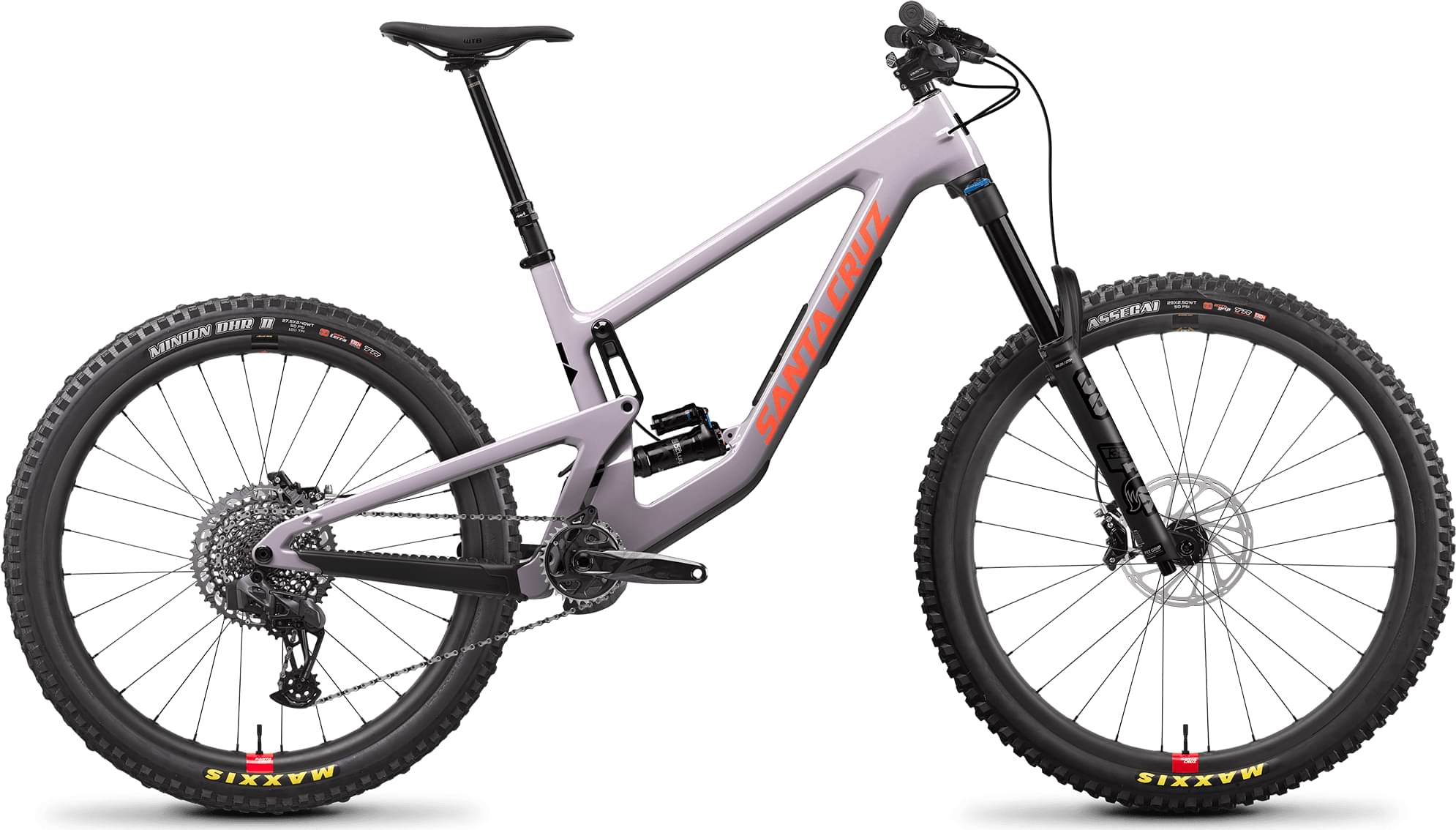

Santa Cruz NOMAD GX AXS / Air / RSV / Carbon C / MX 2023
2023 Mountain
Estimate price |
9,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NOMAD GX AXS / Air / RSV / Carbon C / MX
Suspension Fork
FOX 38 Float Performance Elite, 170mm
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle, 12spd
Shift Levers
SRAM GX AXS Controller
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
i9 1/1, 15x110, 28h
Rear Hub
i9 1/1, 12x148, XD, 28h
Rims
Reserve 30|HD 29" (f) 27.5" (r), 28h
Tires
Front: Maxxis Assegai 29"x2.5" 3C MaxxGrip, EXO+, TR, Rear: Maxxis Assegai 29"x2.5" 3C MaxxGrip, EXO+, TR
Brakes
Brakes
SRAM Code RS
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium CroMo
Seatpost
RockShox Reverb Stealth, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.35 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 770 mm | 799 mm | 826 mm | 855 mm | 886 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm | 45 mm |
| Trail | 133 mm | 134 mm | 133 mm | 133 mm | 134 mm |
| Stack | 613 mm | 622 mm | 635 mm | 653 mm | 667 mm |
| Reach | 427 mm | 452 mm | 472 mm | 492 mm | 517 mm |
| Top Tube Length | 567 mm | 591 mm | 609 mm | 634 mm | 663 mm |
| Seat Tube Angle | 77.2 ° | 77.4 ° | 77.9 ° | 77.8 ° | 77.7 ° |
| Seat Tube Length | 380 mm | 405 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 135 mm | 150 mm |
| Chainstay Length | 436 mm | 437 mm | 440 mm | 443 mm | 447 mm |
| Wheelbase | 1206 mm | 1236 mm | 1266 mm | 1298 mm | 1333 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 706 mm | 713 mm | 720 mm | 719 mm | 722 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
NOMAD GX AXS / Air / RSV / Carbon C / MX is part of the Santacruz Nomad model. 68 bikes variations carry this model name so far. Take a sneak peek at all Santacruz Nomad bikes models from 2023, by clicking here.
Model range prices
Santa Cruz NOMAD R / Carbon C 2023 is the most economical model, with a starting price of 5649$. Santa Cruz NOMAD X01 AXS / Air / RSV / Carbon CC / MX 2023 on the other hand costs 11199$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 9799$. In conclusion, this bike price is 172.27% higher than the price of the average Enduro bike.
Overview of components
Fork
The NOMAD GX AXS / Air / RSV / Carbon C / MX comes factory-installed with the Fox Performance Elite Float 38 fork. This has a travel range of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Select+, with a travel distance of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The NOMAD GX AXS / Air / RSV / Carbon C / MX 2023 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz NOMAD GX AXS / Air / RSV / Carbon C / MX is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Santa Cruz NOMAD GX AXS / Air / RSV / Carbon C / MX includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
