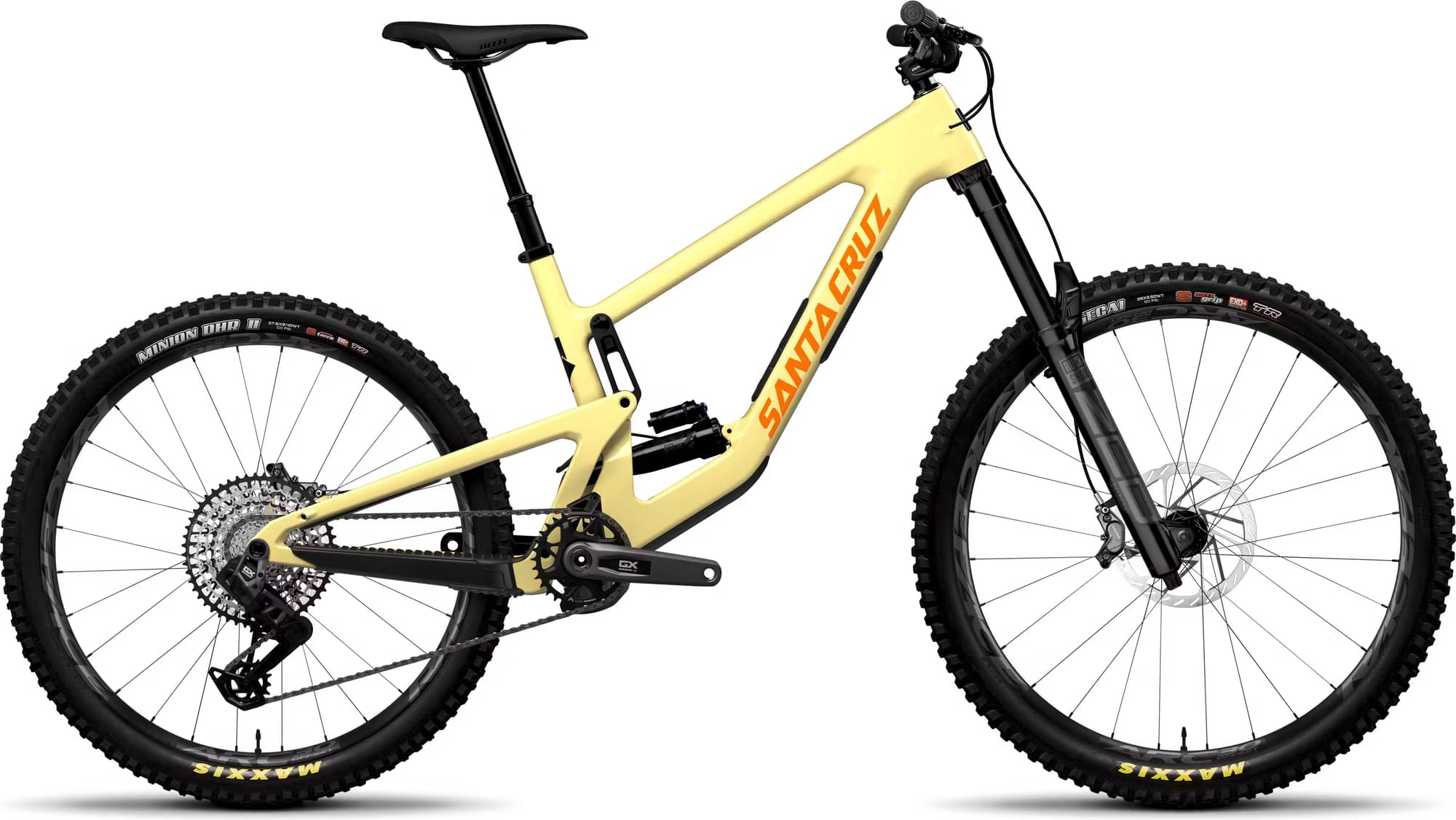

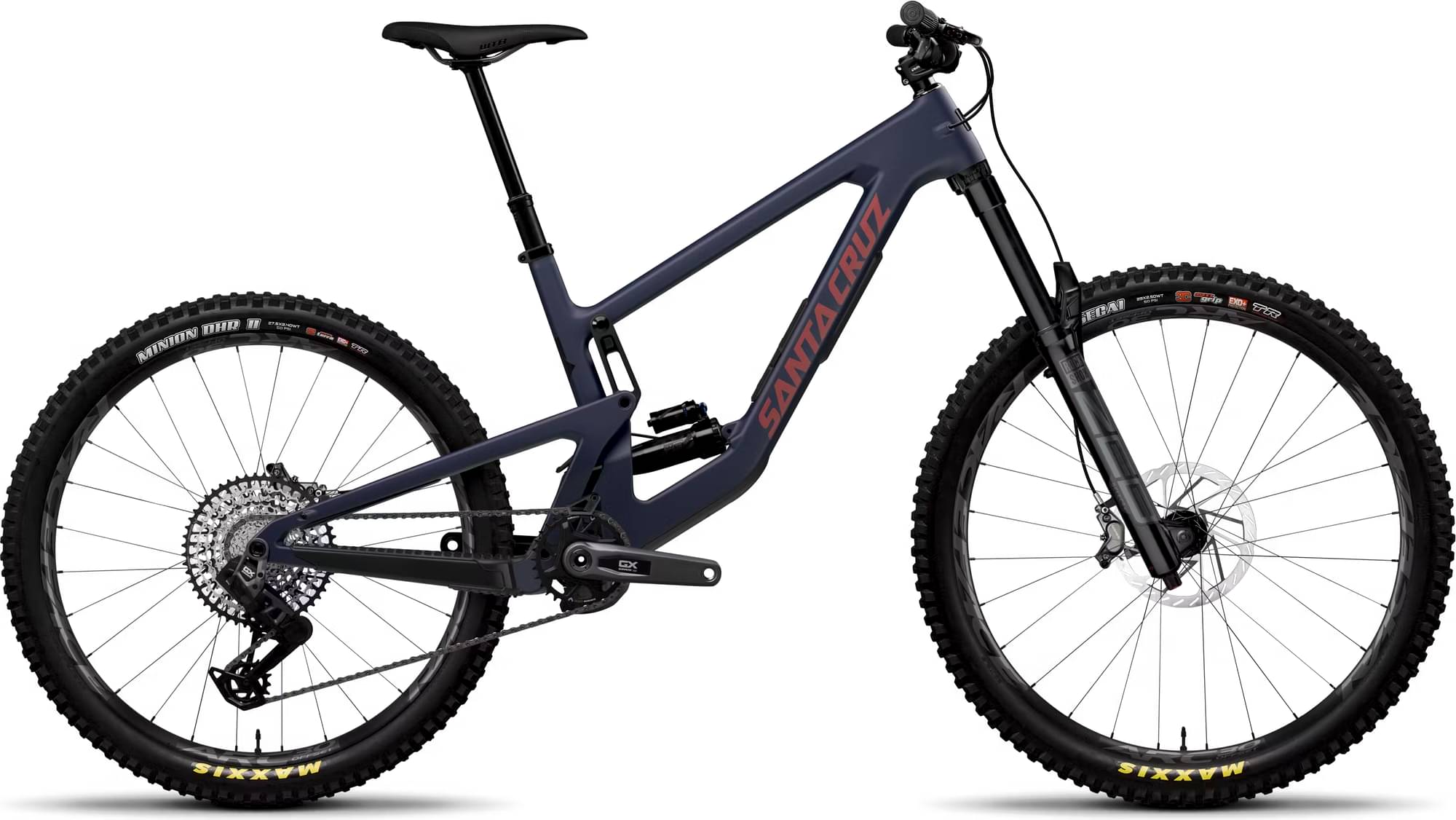

Santa Cruz NOMAD GX AXS / Carbon C 2024
2024 Mountain
Estimate price |
6,999$
Weight | 15.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NOMAD GX AXS / Carbon C
Suspension Fork
RockShox Zeb Select+, 170mm -or- Fox 38 Performance Elite
Rear Shock
RockShox Super Deluxe Select+, 230x65
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM GX Eagle T-Type, 10-52t
Crank
SRAM GX Eagle DUB T-Type Crankset, 32t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h
Rear Hub
DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rims
Front: RaceFace ARC Offset 30 29", Rear: RaceFace ARC Offset 30 27.5"
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Brakes
Brakes
SRAM Code Bronze Stealth
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz Carbon
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.45 mm | 1.38 mm | 1.39 mm | 1.35 mm | 1.36 mm | 1.33 mm | 1.34 mm | 1.29 mm | 1.3 mm |
| Bottom Bracket Height | 346 mm | 343 mm | 346 mm | 343 mm | 346 mm | 343 mm | 346 mm | 343 mm | 346 mm | 343 mm |
| Front Center | 770 mm | 770 mm | 799 mm | 799 mm | 826 mm | 826 mm | 855 mm | 855 mm | 886 mm | 886 mm |
| Rake | 46 mm | 45 mm | 45 mm | 45 mm | 46 mm | 46 mm | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 133 mm | 136 mm | 134 mm | 136 mm | 133 mm | 135 mm | 133 mm | 135 mm | 134 mm | 136 mm |
| Stack | 613 mm | 615 mm | 622 mm | 624 mm | 635 mm | 637 mm | 653 mm | 655 mm | 667 mm | 669 mm |
| Reach | 427 mm | 424 mm | 452 mm | 449 mm | 472 mm | 469 mm | 492 mm | 489 mm | 517 mm | 514 mm |
| Top Tube Length | 567 mm | 568 mm | 591 mm | 591 mm | 609 mm | 610 mm | 634 mm | 635 mm | 663 mm | 664 mm |
| Seat Tube Angle | 77.2 ° | 77 ° | 77.4 ° | 77.2 ° | 77.9 ° | 77.6 ° | 77.8 ° | 77.5 ° | 77.7 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm | 150 mm | 150 mm |
| Chainstay Length | 436 mm | 437 mm | 437 mm | 438 mm | 440 mm | 441 mm | 443 mm | 444 mm | 447 mm | 448 mm |
| Wheelbase | 1206 mm | 1206 mm | 1236 mm | 1237 mm | 1266 mm | 1267 mm | 1298 mm | 1299 mm | 1333 mm | 1334 mm |
| Bottom Bracket Drop | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm |
| Standover Height | 706 mm | 702 mm | 713 mm | 710 mm | 720 mm | 716 mm | 719 mm | 714 mm | 722 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
Model Overview
NOMAD GX AXS / Carbon C is a Santacruz Nomad model. Santa Cruz released 68 bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Santa Cruz NOMAD R / Carbon C 2024 is the cheapest bike model and costs 4999$. Santa Cruz NOMAD X0 AXS RSV / Carbon CC 2024 is the most expensive one and costs 9399$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2024 and its price was 6999$. In conclusion, this bike price is 94.47% higher than the price of the average Enduro bike.
Enduro bikes average weight
Enduro bikes weigh an average of 14 kg (30.86 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, NOMAD GX AXS / Carbon C has a weight of 15.25 kg (33.62 lbs). In other words, this model is 8.93% heavier than the average Enduro bike.
Overview of components
Fork
This bike has the Fox Performance Elite Float 38 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The NOMAD GX AXS / Carbon C has a rear shock with a travel of 170mm. The model RockShox Super Deluxe Select+ is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The NOMAD GX AXS / Carbon C 2024 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The NOMAD GX AXS / Carbon C comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Santa Cruz NOMAD GX AXS / Carbon C bike has 10 sizes, in the range of 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the NOMAD GX AXS / Carbon C. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
