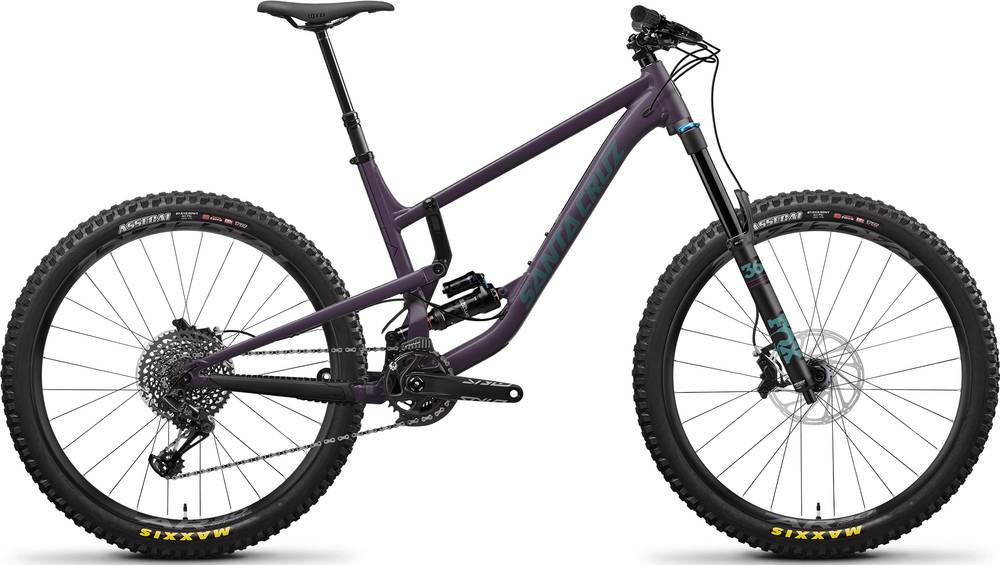

Santa Cruz Nomad S / Aluminum / 27.5 2020
2020 Mountain
Estimate price |
4,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 195cm
XL Low
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nomad S / Aluminum / 27.5
Suspension Fork
FOX 36 Float Performance 170
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG1275 Eagle 10-50T
Crank
Crankset: SRAM Stylo 7k 148 DUB, 32t - 165mm (XS), 170mm (S-XL)
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle 12 SPD
Chain Guide
E13 TRS+ 1x Guide ISCG05
Wheels
Front Hub
DT 370 15x110 32H
Rear Hub
DT 370 12x148 32H
Rims
Race Face AR Offset 30 27.5" RIms
Spokes
DT Competition (32)
Tires
Front: Maxxis Assegai 27.5"x2.5" EXO+ TR, Rear: Maxxis Assegai 27.5"x2.5" EXO+ TR
Brakes
Brakes
SRAM Code R
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Race Face Aeffect R 50mm
Handlebar
Race Face Aeffect R 35x780
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Pro
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.42 mm | 1.44 mm | 1.38 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm |
| Front Center | 704 mm | 704 mm | 738 mm | 738 mm | 762 mm | 762 mm | 787 mm | 787 mm | 821 mm | 821 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 43 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 122 mm | 119 mm | 122 mm | 119 mm | 121 mm | 119 mm | 122 mm | 119 mm | 122 mm |
| Stack | 576 mm | 579 mm | 585 mm | 588 mm | 594 mm | 597 mm | 603 mm | 606 mm | 612 mm | 615 mm |
| Reach | 382 mm | 378 mm | 412 mm | 408 mm | 432 mm | 428 mm | 452 mm | 448 mm | 482 mm | 478 mm |
| Top Tube Length | 532 mm | 533 mm | 565 mm | 566 mm | 588 mm | 590 mm | 611 mm | 613 mm | 645 mm | 646 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° |
| Seat Tube Length | 375 mm | 375 mm | 390 mm | 390 mm | 420 mm | 420 mm | 450 mm | 450 mm | 480 mm | 480 mm |
| Head Tube Angle | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm |
| Wheelbase | 1126 mm | 1127 mm | 1160 mm | 1161 mm | 1184 mm | 1186 mm | 1208 mm | 1210 mm | 1243 mm | 1244 mm |
| Bottom Bracket Drop | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm |
| Standover Height | 702 mm | 696 mm | 704 mm | 698 mm | 720 mm | 714 mm | 718 mm | 712 mm | 710 mm | 710 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 195 cm | 195 cm |
About this model
Nomad S / Aluminum / 27.5 belongs to the Santacruz Nomad model. Santa Cruz released 68 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Santa Cruz Nomad R / Aluminum / 27.5 2020 is the most economical model, with a starting price of 3599$. Santa Cruz Nomad XX1 AXS Reserve / Carbon CC / 27.5 2020 on the other hand costs 10499$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Santa Cruz Nomad S / Aluminum / 27.5 price was 4299$. In conclusion, this bike price is 19.45% higher than the price of the average Enduro bike.
Nomad S / Aluminum / 27.5 components
Fork
Santa Cruz Nomad S / Aluminum / 27.5 2020 bike is equipped with the Fox Performance Float 36 fork, and has 170mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Select+ rear shock model, which has a travel of 170mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Nomad S / Aluminum / 27.5 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Nomad S / Aluminum / 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Nomad S / Aluminum / 27.5 comes in 10 sizes, that range from 142 cm – 195 cm (4.66 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Santa Cruz model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
