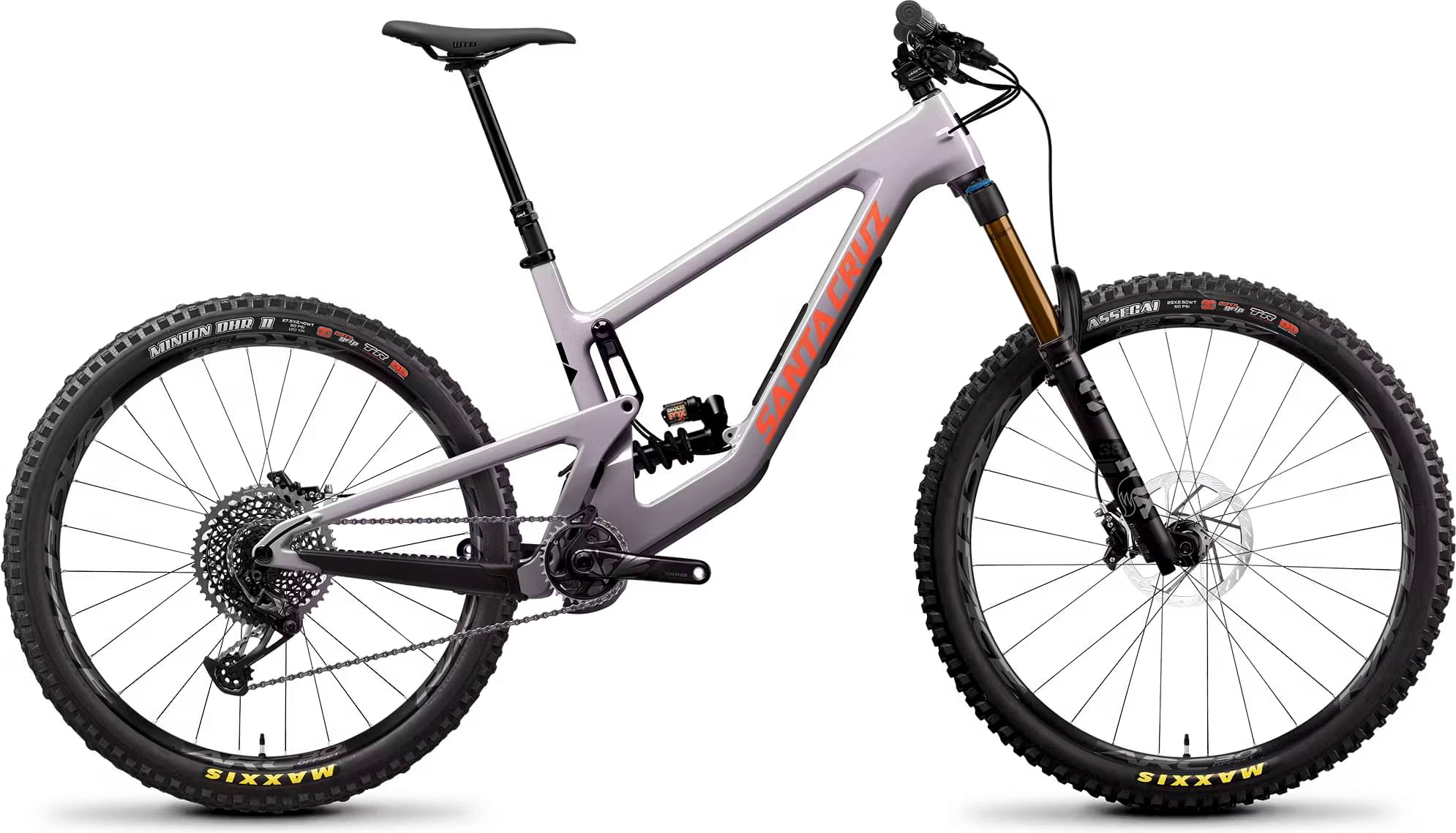

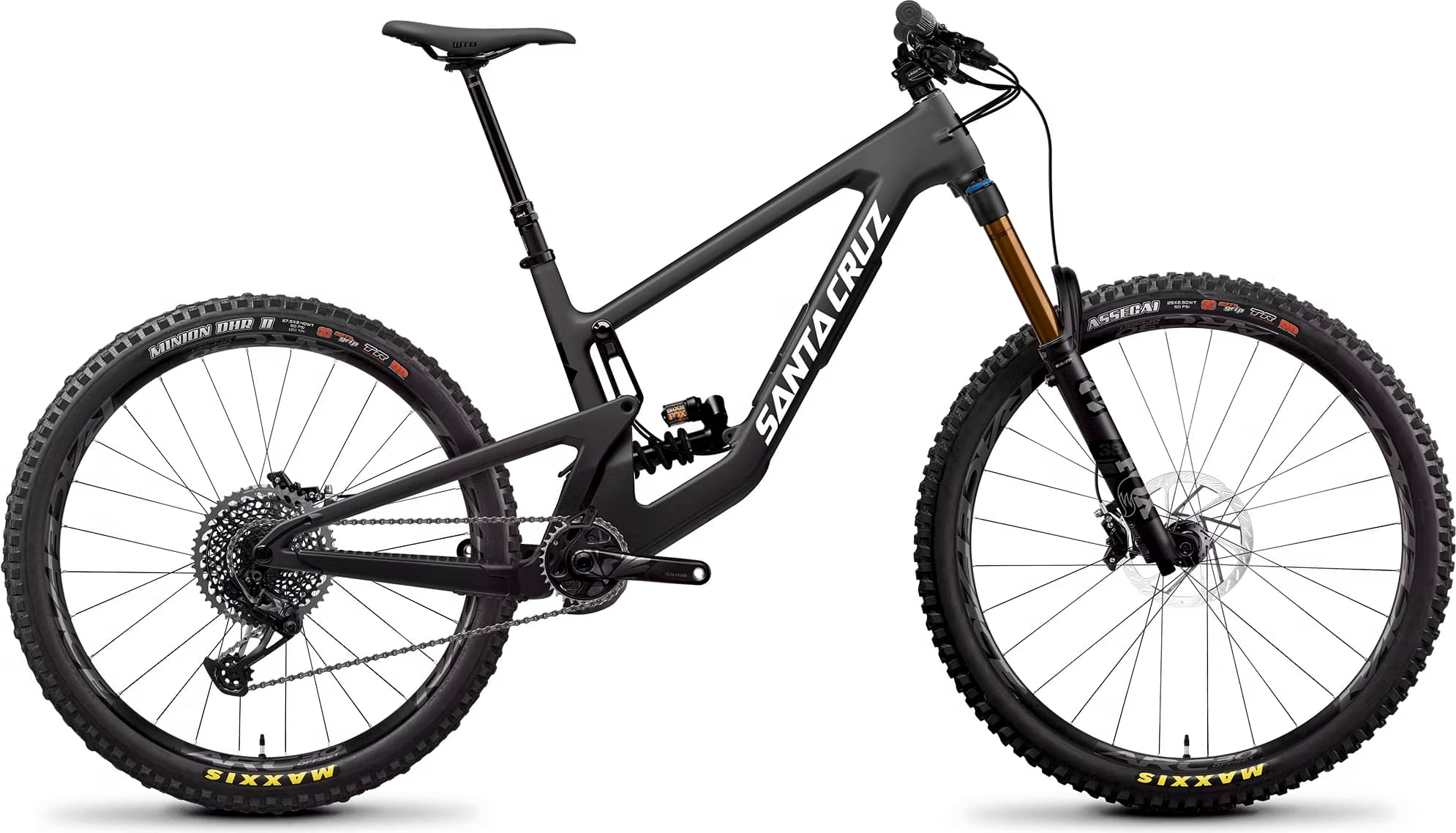

Santa Cruz NOMAD X01 Coil / Carbon CC 2023
2023 Mountain
Estimate price |
8,949$
Weight | 16.01 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NOMAD X01 Coil / Carbon CC
Suspension Fork
FOX 38 Float Factory, 170mm
Rear Shock
FOX Float DHX2 Factory, 230x65
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12spd
Shift Levers
SRAM X01 Eagle, 12spd
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM X1 Eagle Carbon 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
Front: i9 1/1, 15x110, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rear Hub
Front: i9 1/1, 15x110, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rims
Front: RaceFace ARC Offset 30 29", Rear: RaceFace ARC Offset 30 27.5"
Tires
Front: Maxxis Assegai 29"x2.5", 3C MaxxGRIP, Double Down, TR, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxGRIP, Double Down, TR
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Ti
Seatpost
RockShox Reverb Stealth, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.45 mm | 1.38 mm | 1.39 mm | 1.35 mm | 1.36 mm | 1.33 mm | 1.34 mm | 1.29 mm | 1.3 mm |
| Bottom Bracket Height | 346 mm | 343 mm | 346 mm | 343 mm | 346 mm | 343 mm | 346 mm | 343 mm | 346 mm | 343 mm |
| Front Center | 770 mm | 770 mm | 799 mm | 799 mm | 826 mm | 826 mm | 855 mm | 855 mm | 886 mm | 886 mm |
| Rake | 46 mm | 45 mm | 45 mm | 45 mm | 46 mm | 46 mm | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 133 mm | 136 mm | 134 mm | 136 mm | 133 mm | 135 mm | 133 mm | 135 mm | 134 mm | 136 mm |
| Stack | 613 mm | 615 mm | 622 mm | 624 mm | 635 mm | 637 mm | 653 mm | 655 mm | 667 mm | 669 mm |
| Reach | 427 mm | 424 mm | 452 mm | 449 mm | 472 mm | 469 mm | 492 mm | 489 mm | 517 mm | 514 mm |
| Top Tube Length | 567 mm | 568 mm | 591 mm | 591 mm | 609 mm | 610 mm | 634 mm | 635 mm | 663 mm | 664 mm |
| Seat Tube Angle | 77.2 ° | 77 ° | 77.4 ° | 77.2 ° | 77.9 ° | 77.6 ° | 77.8 ° | 77.5 ° | 77.7 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° | 63.8 ° | 63.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm | 150 mm | 150 mm |
| Chainstay Length | 436 mm | 437 mm | 437 mm | 438 mm | 440 mm | 441 mm | 443 mm | 444 mm | 447 mm | 448 mm |
| Wheelbase | 1206 mm | 1206 mm | 1236 mm | 1237 mm | 1266 mm | 1267 mm | 1298 mm | 1299 mm | 1333 mm | 1334 mm |
| Bottom Bracket Drop | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm | 27 mm | 30 mm |
| Standover Height | 706 mm | 702 mm | 713 mm | 710 mm | 720 mm | 716 mm | 719 mm | 714 mm | 722 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
About this model
NOMAD X01 Coil / Carbon CC completes the Santacruz Nomad model. There are 68 bikes that carry this model name. Take a sneak peek at all Santacruz Nomad bikes models from 2023, by clicking here.
Model range prices
Santa Cruz NOMAD R / Carbon C 2023 is the cheapest bike model and costs 5649$. Santa Cruz NOMAD X01 AXS / Air / RSV / Carbon CC / MX 2023 is the most expensive one and costs 11199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 8949$. In conclusion, this bike price is 148.65% higher than the price of the average Enduro bike.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14 kg (30.86 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 16.01 kg (35.3 lbs), the NOMAD X01 Coil / Carbon CC model is considerably heavier than average. In conclusion, the average Enduro bike weighs 14.36% less than NOMAD X01 Coil / Carbon CC.
Overview of components
Fork
The NOMAD X01 Coil / Carbon CC comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The NOMAD X01 Coil / Carbon CC has a rear shock with a travel of 170mm. The model FOX Float DHX2 Factory is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Santa Cruz NOMAD X01 Coil / Carbon CC 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz NOMAD X01 Coil / Carbon CC has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz NOMAD X01 Coil / Carbon CC bike has 10 sizes, in the range of 155 cm – 201 cm (5.09 ft – 6.59 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
