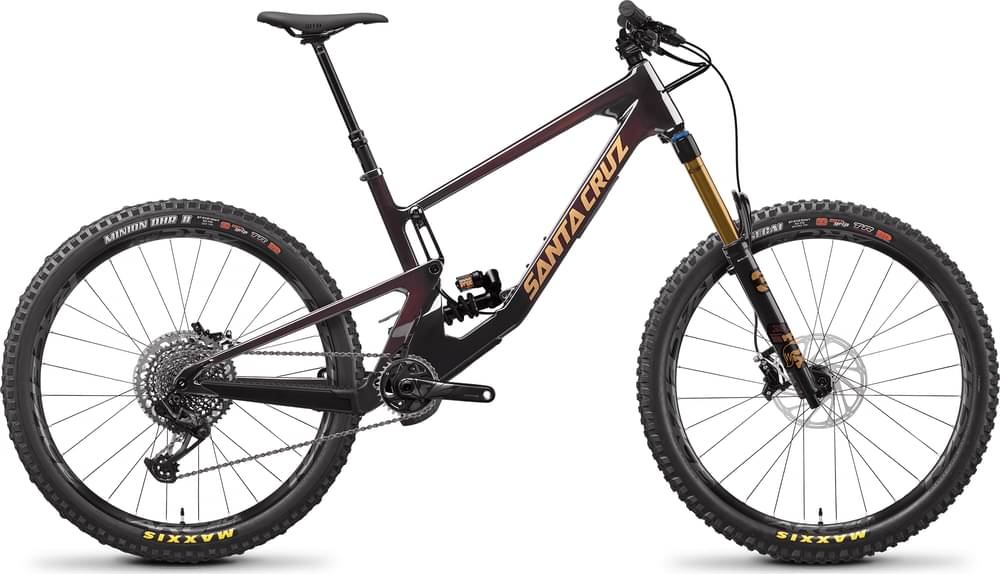

Santa Cruz Nomad X01 Coil / Carbon CC / 27.5 2021
2021 Mountain
Estimate price |
8,249$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 167cm
SM Low
154cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 193cm
XL Low
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nomad X01 Coil / Carbon CC / 27.5
Suspension Fork
FOX 38 Float Factory, 170mm, 27.5"
Rear Shock
Fox DH X2 Factory Coil 2-Position Lever (400 S, 450 M, 500 L-XL)
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG1295 Eagle 12spd 10-52t
Crank
SRAM X1 Eagle Carbon 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM X01 Eagle 12 SPD
Chain Guide
OneUp Bash
Wheels
Front Hub
DT 350 15x110 28H
Rear Hub
DT 350 148x12 28h XD
Rims
Race Face ARC Offset 30 27.5" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 27.5"x2.5", 3C, MaxxGRIP Double Down, TR, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C, MaxxGRIP, Double Down, TR
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Burgtec Enduro MK3
Handlebar
Santa Cruz Bicycles Carbon Riser Bar
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.37 mm | 1.38 mm | 1.31 mm | 1.33 mm | 1.29 mm | 1.31 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 760 mm | 760 mm | 792 mm | 792 mm | 821 mm | 821 mm | 857 mm | 857 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 127 mm | 129 mm | 127 mm | 129 mm | 127 mm | 129 mm | 127 mm | 129 mm |
| Stack | 598 mm | 600 mm | 611.5 mm | 614 mm | 620.4 mm | 623 mm | 642.9 mm | 645 mm |
| Reach | 422 mm | 419 mm | 447 mm | 444 mm | 472 mm | 469 mm | 497 mm | 494 mm |
| Top Tube Length | 548 mm | 549 mm | 578 mm | 579 mm | 606 mm | 607 mm | 640 mm | 641 mm |
| Seat Tube Angle | 78.2 ° | 77.9 ° | 78 ° | 77.7 ° | 77.9 ° | 77.5 ° | 77.6 ° | 77.2 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 64 ° | 63.7 ° | 64 ° | 63.7 ° | 64 ° | 63.7 ° | 64 ° | 63.7 ° |
| Head Tube Length | 115 mm | 115 mm | 130 mm | 130 mm | 140 mm | 140 mm | 165 mm | 165 mm |
| Chainstay Length | 422 mm | 423 mm | 427 mm | 428 mm | 432 mm | 433 mm | 437 mm | 438 mm |
| Wheelbase | 1182 mm | 1183 mm | 1219 mm | 1220 mm | 1253 mm | 1254 mm | 1294 mm | 1295 mm |
| Bottom Bracket Drop | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm |
| Standover Height | 707 mm | 703 mm | 729 mm | 724 mm | 730 mm | 725 mm | 729 mm | 724 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 193 cm | 193 cm |
Model Overview
Nomad X01 Coil / Carbon CC / 27.5 is part of the Santacruz Nomad model. Santa Cruz released 68 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Santa Cruz Nomad R / Carbon C / 27.5 2021 is the cheapest bike model and costs 4949$. Santa Cruz Nomad X01 Coil / Carbon CC / 27.5 2021 is the most expensive one and costs 8249$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8249$. Doing a quick comparison, we notice that Nomad X01 Coil / Carbon CC / 27.5 price is 129.2% higher than the average cost of an Enduro bike.
Overview of components
Fork
The Nomad X01 Coil / Carbon CC / 27.5 comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Nomad X01 Coil / Carbon CC / 27.5 has a rear shock with a travel of 170mm. The model Fox DH X2 Factory Coil 2-Position Lever (400 S is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Nomad X01 Coil / Carbon CC / 27.5 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Nomad X01 Coil / Carbon CC / 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 8 sizes. They vary from 154 cm – 193 cm (5.05 ft – 6.33 ft). In short, you can easily find one that suits you.
Dropper post
Santa Cruz Nomad X01 Coil / Carbon CC / 27.5 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
