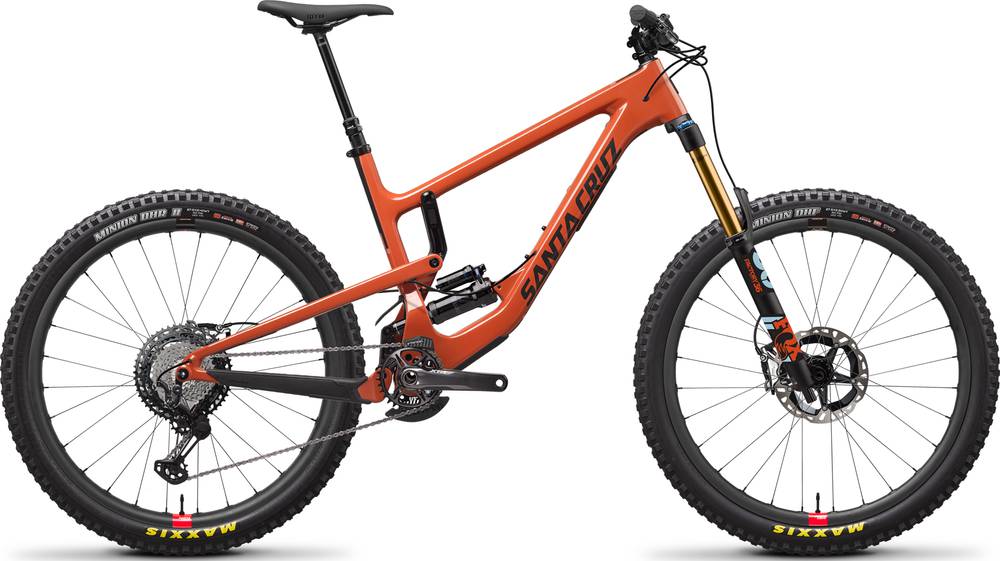

Santa Cruz Nomad XTR Reserve / Carbon CC / 27.5 2019
2019 Mountain
Estimate price |
9,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 36
-
Groupset XTR, e*thirteen LG1 Race -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nomad XTR Reserve / Carbon CC / 27.5
Suspension Fork
FOX 36 Float Factory 170
Rear Shock
RockShox Super Deluxe RCT
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS, 11/12spd
Shift Levers
Shimano XTR M9100 SL, 12spd, I-Spec
Cassette
Shimano XTR, 12spd, 10-51
Crank
E13 LG1r, 32T, Boost, 170mm
Chain
Shimano XTR, 12spd, w/Quick Link
Chain Guide
E13 TRS+ 1x Guide ISCG05
Wheels
Front Hub
DT Swiss 240, 15x110, Centerlock, 28h
Rear Hub
DT Swiss 240, 12x148, Micro Spline, 28h
Rims
Santa Cruz Reserve 30 Carbon Rim - 27.5 28h
Spokes
DT Competition Race (28)
Tires
Maxxis Minion DHF, 27.5"x2.5", 3C Silkshield
Brakes
Brakes
Shimano XTR M9120
Disk Rotors
Shimano XTR Ice. Tech Rotors, Centerlock, 203mm
Cockpit
Stem
Race Face Turbine R 50mm
Handlebar
SCB AM Carbon Bar 35x800
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 110 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
Rockshox Reverb Stealth, Discrete Lever, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.42 mm | 1.44 mm | 1.38 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm |
| Front Center | 704 mm | 704 mm | 738 mm | 738 mm | 762 mm | 762 mm | 787 mm | 787 mm | 821 mm | 821 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 43 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 122 mm | 119 mm | 122 mm | 119 mm | 121 mm | 119 mm | 122 mm | 119 mm | 122 mm |
| Stack | 576 mm | 579 mm | 585 mm | 588 mm | 594 mm | 597 mm | 603 mm | 606 mm | 612 mm | 615 mm |
| Reach | 382 mm | 378 mm | 412 mm | 408 mm | 432 mm | 428 mm | 452 mm | 448 mm | 482 mm | 478 mm |
| Top Tube Length | 532 mm | 533 mm | 565 mm | 566 mm | 588 mm | 590 mm | 611 mm | 613 mm | 645 mm | 646 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° |
| Seat Tube Length | 375 mm | 375 mm | 390 mm | 390 mm | 420 mm | 420 mm | 450 mm | 450 mm | 480 mm | 480 mm |
| Head Tube Angle | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm |
| Wheelbase | 1126 mm | 1127 mm | 1160 mm | 1161 mm | 1184 mm | 1186 mm | 1208 mm | 1210 mm | 1243 mm | 1244 mm |
| Bottom Bracket Drop | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm |
| Standover Height | 702 mm | 696 mm | 704 mm | 698 mm | 720 mm | 714 mm | 718 mm | 712 mm | 710 mm | 710 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Nomad XTR Reserve / Carbon CC / 27.5 belongs to the Santacruz Nomad model. There are 68 bikes that carry this model name. You can easily view all of the Santacruz Nomad bikes models from 2019, here.
Model range prices
Santa Cruz Nomad R / Aluminum / 27.5 2019 is the most affordable bike of this model and has a price of 3599$. On the other hand, Santa Cruz Nomad XTR Reserve / Carbon CC / 27.5 2019, is the most expensive and costs 9799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Santa Cruz released this model in 2019, its price was 9799$. If we compare this with the average Enduro bike cost we notice that the price is 172.27% more expensive.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe RCT model, with a travel of 170mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Nomad XTR Reserve / Carbon CC / 27.5 2019 bike is equipped with 27.5″ carbon wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Nomad XTR Reserve / Carbon CC / 27.5. Therefore, climbing or descending will be a breeze.
