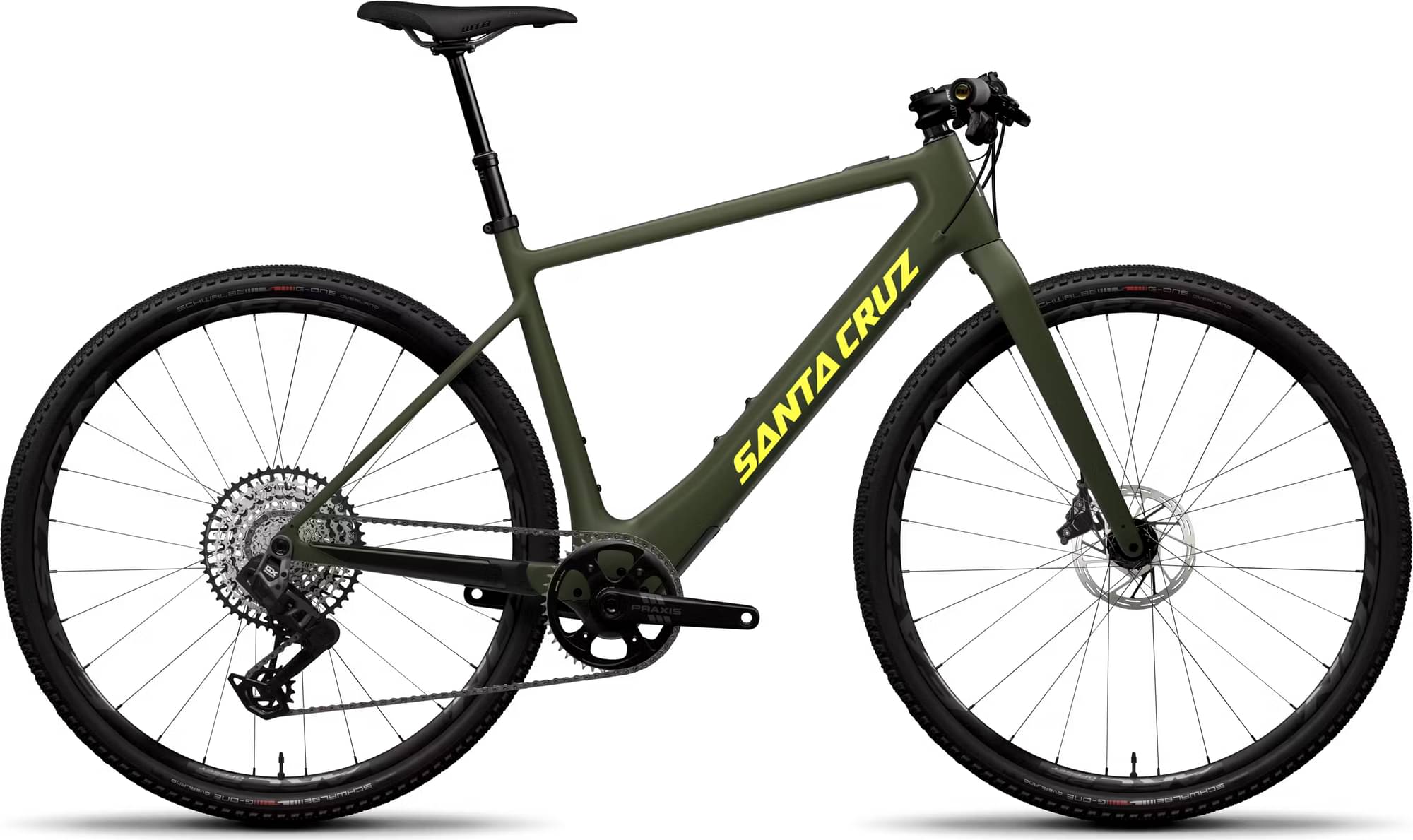

Santa Cruz SKITCH GX AXS Flat Bar / Carbon CC 2024
2024 E-bike
Estimate price |
7,299$
Weight | 13.67 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GX Eagle Transmission, RED AXS -
Suspension Rigid -
Motor Fazua mid-drive -
Battery Fazua 430 Wh Integrated Battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SKITCH GX AXS Flat Bar / Carbon CC
Suspension Fork
Carbon
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM GX Eagle T-Type, 10-52t
Crank
Praxis eTor AL
Chain
SRAM GX Eagle T-Type, 12spd
Wheels
Front Hub
DT Swiss 370, 12x100, Centerlock, 28h
Rear Hub
DT Swiss 370, 12x148, XD, Centerlock, 28h
Rims
Front: Easton ARC Offset 25 700c, Rear: Easton ARC Offset 25 700c
Tires
Front: Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip, Rear: Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Brakes
Brakes
SRAM Level Silver Stealth 2-Piston
Cockpit
Stem
SRAM Atmos Stem, 80mm
Handlebar
SRAM Atmos Flat Bar, 31.8x760
Grips
ESI Chunky Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
OneUp V2 Dropper Post, 27.2
Motor & Battery
Motor
Fazua Ride60
Battery
Fazua 430 Wh Integrated Battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.42 mm | 1.4 mm | 1.4 mm |
| Bottom Bracket Height | 279 mm | 281 mm | 281 mm | 283 mm | 283 mm |
| Front Center | 624 mm | 646 mm | 668 mm | 689 mm | 711 mm |
| Rake | 45 mm | 45 mm | 46 mm | 44 mm | 45 mm |
| Trail | 86 mm | 86 mm | 85 mm | 87 mm | 86 mm |
| Stack | 567 mm | 583 mm | 600 mm | 614 mm | 634 mm |
| Reach | 394 mm | 409 mm | 424 mm | 439 mm | 454 mm |
| Top Tube Length | 555 mm | 575 mm | 595 mm | 614 mm | 634 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 160 mm | 180 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1051 mm | 1074 mm | 1096 mm | 1116 mm | 1139 mm |
| Bottom Bracket Drop | 78 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Standover Height | 732 mm | 757 mm | 782 mm | 808 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
SKITCH GX AXS Flat Bar / Carbon CC completes the Santacruz E Skitch model. There are 4 e-bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Santa Cruz SKITCH Apex Flat Bar / Carbon CC 2024 is the cheapest e-bike model and costs 5999$. Santa Cruz SKITCH GX AXS / Carbon CC 2024 is the most expensive one and costs 7299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel e-bikes
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Santa Cruz released this model in 2024, its price was 7299$. Comparing this to the average Gravel e-bike price, we see that the price is 100.41% more expensive.
Average weight for Gravel e-bikes
Gravel e-bikes weigh an average of 14.21 kg (31.33 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 13.67 kg (30.14 lbs), Santa Cruz e-bike is slightly lighter than average. To sum up, it’s 3.95% lighter than the average weight of Gravel e-bikes.
SKITCH GX AXS Flat Bar / Carbon CC components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The SKITCH GX AXS Flat Bar / Carbon CC 2024 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The SKITCH GX AXS Flat Bar / Carbon CC has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the SKITCH GX AXS Flat Bar / Carbon CC. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
