Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon CC
Suspension Fork
Stigmata CC Cyclocross Fork
Drivetrain
Rear Derailleur
Shimano Ultegra 6800
Front Derailleur
Shimano Ultegra 6800
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra 6800; 11-32t
Crank
Shimano Ultegra, 50/34 tooth
Bottom Bracket
Included w/ crankset
Chain
Shimano SLX M7000
Wheels
Front Hub
DT Swiss 240 Centerlock
Rear Hub
DT Swiss 240 Centerlock
Rims
WTB Asym i19
Spokes
DT Swiss Competition Double-Butted
Tires
Maxxis Rambler TR 700Cx40mm
Brakes
Brakes
Shimano Ultegra
Disk Rotors
Shimano RT99; 140mm F/R
Cockpit
Stem
Zipp Service Course SL
Handlebar
Zipp Service Course SL
Grips
Santa Cruz Perforated
Headset
Cane Creek 110, Integrated
Seat
Saddle
WTB Silverado Road
Seatpost
Zipp SL Speed-20 Carbon, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.51 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 598 mm | 604 mm | 609 mm | 614 mm | 633 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 69 mm | 66 mm | 63 mm | 60 mm | 60 mm |
| Stack | 539 mm | 560 mm | 576 mm | 592 mm | 607 mm |
| Reach | 373 mm | 377 mm | 382 mm | 386 mm | 402 mm |
| Top Tube Length | 524 mm | 539 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 530 mm | 545 mm | 560 mm | 570 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 125 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1007 mm | 1013 mm | 1018 mm | 1023 mm | 1043 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 764 mm | 780 mm | 788 mm | 796 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

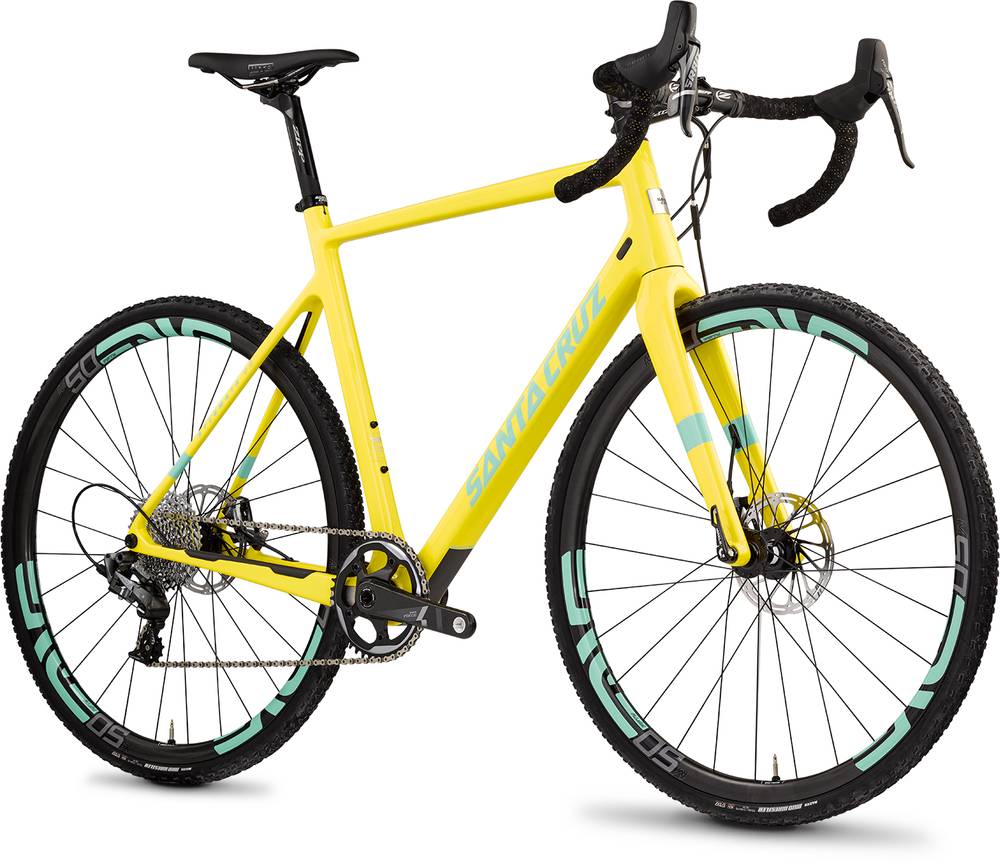

Stigmata CC Ult. is a Santacruz Stigmata model. 43 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Santa Cruz Stigmata C Rival 2017 is the most affordable bike of this model and has a price of 3299$. On the other hand, Santa Cruz Stigmata CC Ult. 2017, is the most expensive and costs 6800$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6800$. In conclusion, this bike price is 176.2% more expensive than the price of the average Gravel bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Santa Cruz Stigmata CC Ult. 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Stigmata CC Ult. has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
