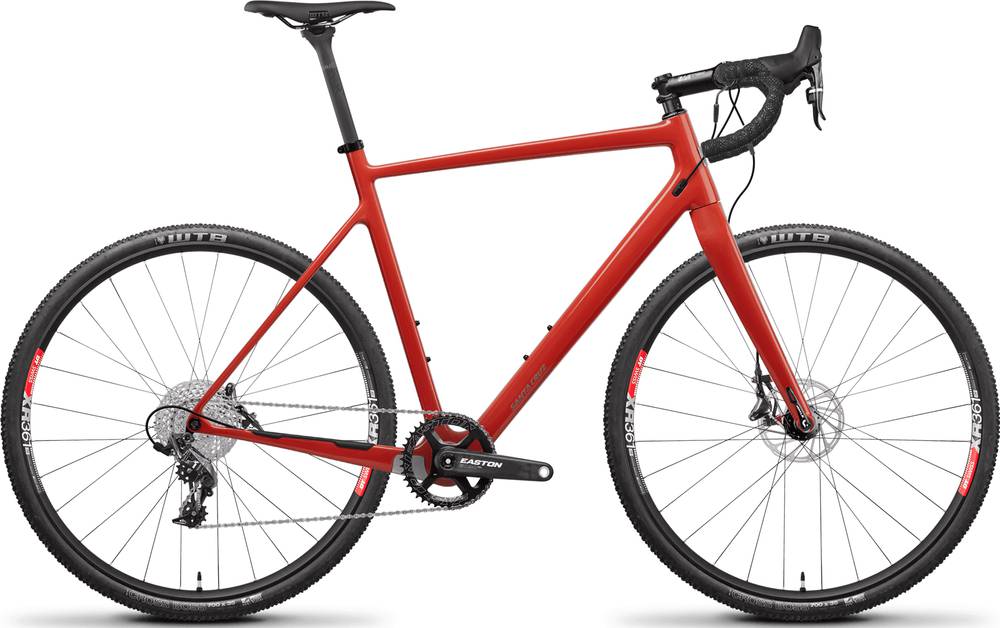

Santa Cruz Stigmata CX1 / Carbon CC 2019
2019 Road
Estimate price |
4,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force, Easton -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stigmata CX1 / Carbon CC
Drivetrain
Rear Derailleur
SRAM Force CX1 Long Cage
Shift Levers
SRAM Force CX1
Cassette
SRAM PG1170 11-36T
Crank
Easton EC90 SL 42T (52cm, 170mm; 53-56cm, 172.5mm; 58-60cm, 175mm)
Bottom Bracket
Easton BB PF 30
Chain
SRAM PC1170
Wheels
Front Hub
DT 350 15x100 Centerlock 28H
Rear Hub
DT 350 142x12 Centerlock 28H Rear Road
Rims
DT XR 361 Asym 29" 28h
Spokes
DT Competition Race (28)
Tires
WTB Cross Boss 700x35
Brakes
Brakes
SRAM Force CX1
Disk Rotors
SRAM CLX Center Lock, 160mm
Cockpit
Stem
Easton EA90
Handlebar
Easton EA70 RB
Grips
Velo Bar Tape
Seat
Saddle
WTB Silverado Road NiCro
Seatpost
Easton EC70 Zero 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.51 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 598 mm | 604 mm | 609 mm | 614 mm | 633 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 69 mm | 66 mm | 63 mm | 60 mm | 60 mm |
| Stack | 539 mm | 560 mm | 576 mm | 592 mm | 607 mm |
| Reach | 373 mm | 377 mm | 382 mm | 386 mm | 402 mm |
| Top Tube Length | 524 mm | 539 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 530 mm | 545 mm | 560 mm | 570 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 125 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1007 mm | 1013 mm | 1018 mm | 1023 mm | 1043 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 764 mm | 780 mm | 788 mm | 796 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Stigmata CX1 / Carbon CC is part of the Santacruz Stigmata model. There are 43 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Santa Cruz Stigmata Rival / Carbon CC 2019 is the cheapest bike model and costs 3699$. Santa Cruz Stigmata Ultegra / Carbon CC 2019 is the most expensive one and costs 4599$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2019 and its price was 4499$. Comparing the average cost of a Gravel bike to this one, you will see that Stigmata CX1 / Carbon CC price is 82.74% more expensive.
Stigmata CX1 / Carbon CC components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Stigmata CX1 / Carbon CC 2019 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stigmata CX1 / Carbon CC comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
