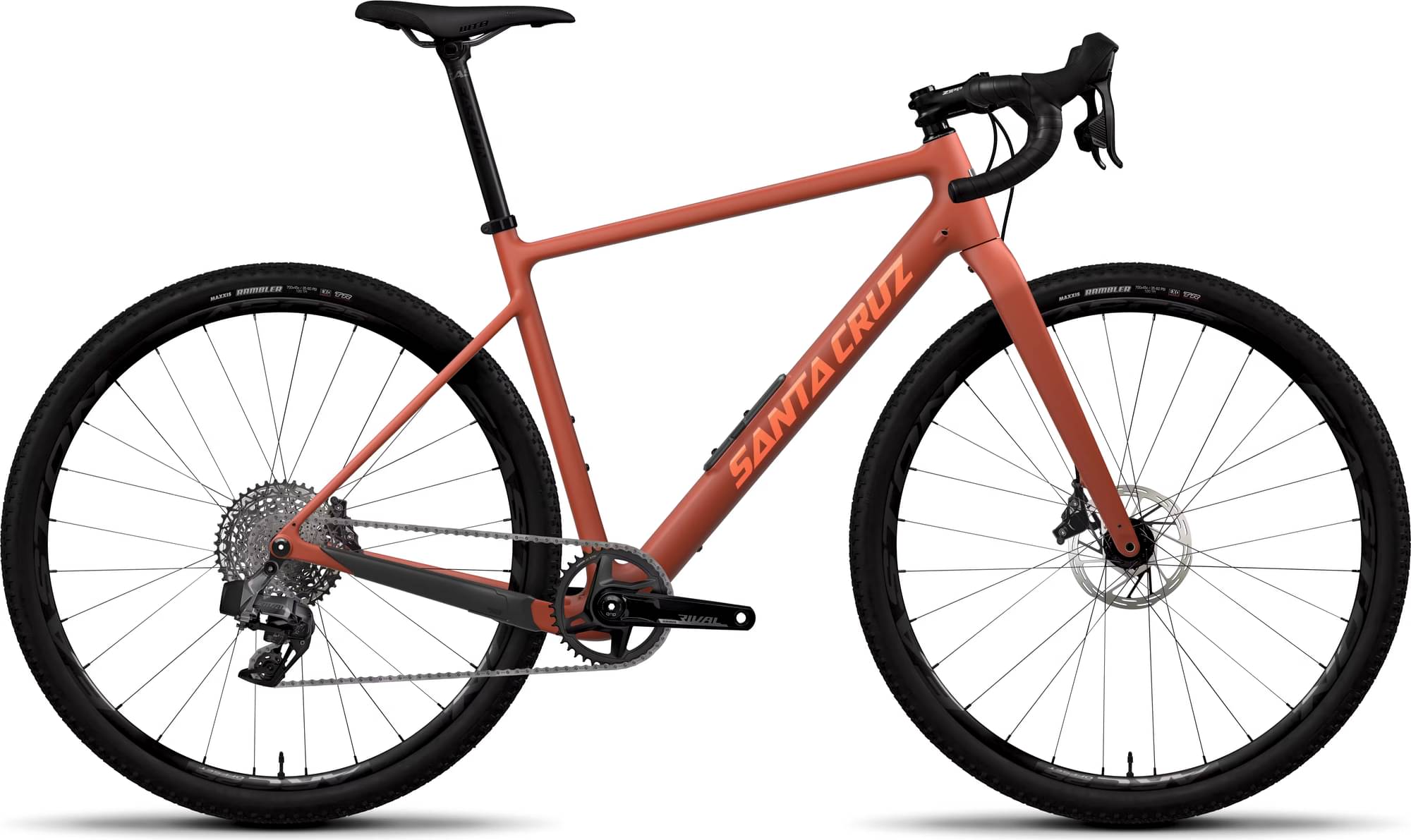

Santa Cruz STIGMATA Rival-1x AXS / Carbon CC 2024
2024 Road
Estimate price |
4,899$
Weight | 9.03 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
STIGMATA Rival-1x AXS / Carbon CC
Suspension Fork
Carbon
Drivetrain
Rear Derailleur
SRAM Rival XPLR AXS
Shift Levers
SRAM Rival AXS
Cassette
SRAM XG-1251 XPLR 10-44t
Crank
SRAM Rival 1 DUB Wide, 40t
Bottom Bracket
SRAM DUB 68mm Road Wide BB
Chain
SRAM Rival, 12spd
Wheels
Front Hub
DT Swiss 370, 12x100, Centerlock, 28h
Rear Hub
DT Swiss 370, 12x142, XDr, Centerlock, 28h
Rims
Front: Easton ARC Offset 25 700c, Rear: Easton ARC Offset 25 700c
Tires
Front: Maxxis Rambler, 700x45c, DC, EXO, TR, Rear: Maxxis Rambler, 700x45c, DC, EXO, TR
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Zipp Service Course Stem, 70mm
Handlebar
Zipp Service Course 70 XPLR AL Bar
Grips
Velo Bar Tape
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
Easton EC70, 27.2, Zero Offset, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.42 mm | 1.42 mm | 1.4 mm | 1.4 mm |
| Bottom Bracket Height | 278 mm | 280 mm | 280 mm | 282 mm | 282 mm |
| Front Center | 625 mm | 645 mm | 668 mm | 688 mm | 710 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm | 82 mm |
| Stack | 568 mm | 580 mm | 604 mm | 616 mm | 635 mm |
| Reach | 394 mm | 409 mm | 424 mm | 439 mm | 454 mm |
| Top Tube Length | 556 mm | 574 mm | 596 mm | 614 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 120 mm | 145 mm | 160 mm | 180 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1047 mm | 1067 mm | 1091 mm | 1112 mm | 1134 mm |
| Bottom Bracket Drop | 78 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Standover Height | 732 mm | 757 mm | 782 mm | 808 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
STIGMATA Rival-1x AXS / Carbon CC completes the Santacruz Stigmata model. 43 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
The most economical model, the Santa Cruz STIGMATA Apex / Carbon CC 2024 has a starting price of 3999$. Santa Cruz STIGMATA Force-1x AXS RSV / Carbon CC 2024 on the other hand is the most expensive at 7699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Santa Cruz released this model in 2024, its price was 4899$. If we compare this with the average Gravel bike cost we notice that the price is 98.98% higher.
Gravel bikes average weight
On a deeper look, we notice that the average weight of a Gravel bike is 8.45 kg (18.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Santa Cruz STIGMATA Rival-1x AXS / Carbon CC it’s weighing 9.03 kg (19.91 lbs). At this weight, is a bit heavier than average. In conclusion, the average Gravel bike weighs 6.86% less than STIGMATA Rival-1x AXS / Carbon CC.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on STIGMATA Rival-1x AXS / Carbon CC are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
