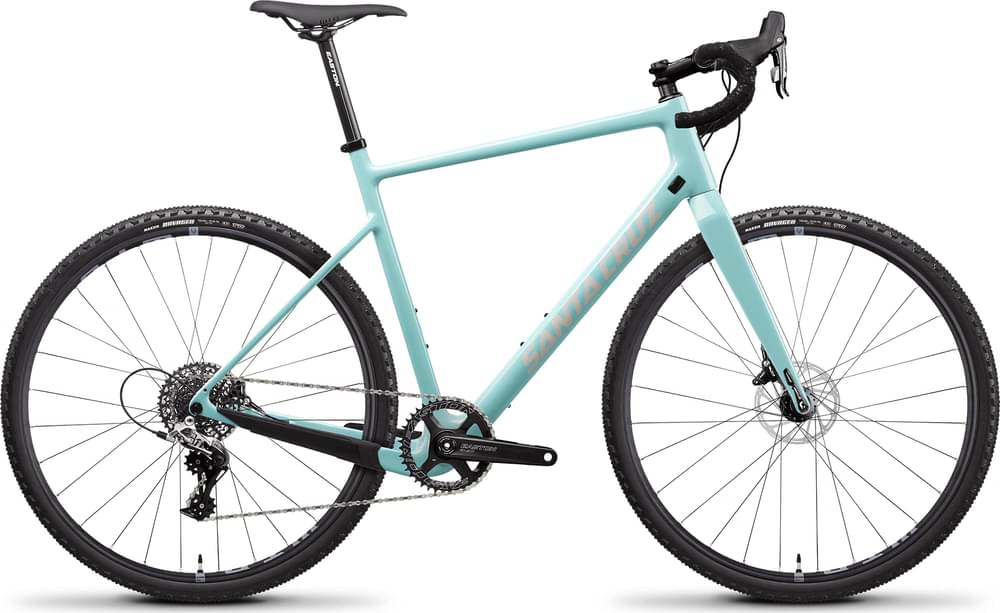

Santa Cruz Stigmata Rival / Carbon CC / 700c 2021
2021 Road
Estimate price |
3,849$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival 1, Easton -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 169cm
54cm
166cm - 177cm
56cm
174cm - 184cm
58cm
181cm - 189cm
60cm
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stigmata Rival / Carbon CC / 700c
Drivetrain
Rear Derailleur
Rival 1 Long Cage, 11sp
Shift Levers
SRAM Rival 1
Cassette
SRAM PG1150, 11spd, 10-42t
Crank
Easton EA90, 40t - 170mm (52), 172.5mm (54-56), 175mm (58-60)
Bottom Bracket
Easton BSA BB
Chain
SRAM PC1170
Wheels
Front Hub
DT Swiss 370 100X12
Rear Hub
DT Swiss 370,142x12, XD, 28h
Rims
WTB EZR i23p 700c
Spokes
Sapim Race
Tires
Front: Maxxis Ravager EXO, 700x40c, Rear: Maxxis Ravager EXO, 700x40c
Brakes
Brakes
SRAM Rival 1 Flat Mount
Disk Rotors
Avid Centerline 160mm
Cockpit
Stem
Easton EA50 Stem
Handlebar
Easton EA50 AX
Grips
Velo Bar Tape
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Pro
Seatpost
Easton EA50, 27.2, 12mm offset, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 277 mm | 279 mm | 279 mm | 281 mm | 281 mm |
| Front Center | 595 mm | 600 mm | 610 mm | 618 mm | 637 mm |
| Rake | 50 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 67 mm | 69 mm | 65 mm | 66 mm | 66 mm |
| Stack | 548 mm | 569 mm | 589 mm | 602 mm | 621 mm |
| Reach | 365 mm | 373 mm | 381 mm | 385 mm | 398 mm |
| Top Tube Length | 519 mm | 538 mm | 558 mm | 565 mm | 584 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 495 mm | 520 mm | 545 mm | 565 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1008 mm | 1018 mm | 1027 mm | 1046 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 747 mm | 769 mm | 790 mm | 809 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 166 cm | 174 cm | 181 cm | 187 cm |
| Rider Max Height | 169 cm | 177 cm | 184 cm | 189 cm | 195 cm |
Model Overview
Stigmata Rival / Carbon CC / 700c completes the Santacruz Stigmata model. Santa Cruz released 43 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Santa Cruz Stigmata Rival / Carbon CC / 700c 2021 is the cheapest bike model and costs 3849$. Santa Cruz Stigmata Force 1X / Carbon CC / 700c 2021 is the most expensive one and costs 6049$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Santa Cruz Stigmata Rival / Carbon CC / 700c price was 3849$. If we compare this with the average Gravel bike cost we notice that the price is 56.34% higher.
Stigmata Rival / Carbon CC / 700c components
Fork material
Stigmata Rival / Carbon CC / 700c has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Stigmata Rival / Carbon CC / 700c are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Stigmata Rival / Carbon CC / 700c is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Santa Cruz Stigmata Rival / Carbon CC / 700c bike has 5 sizes, in the range of 160 cm – 195 cm (5.25 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
