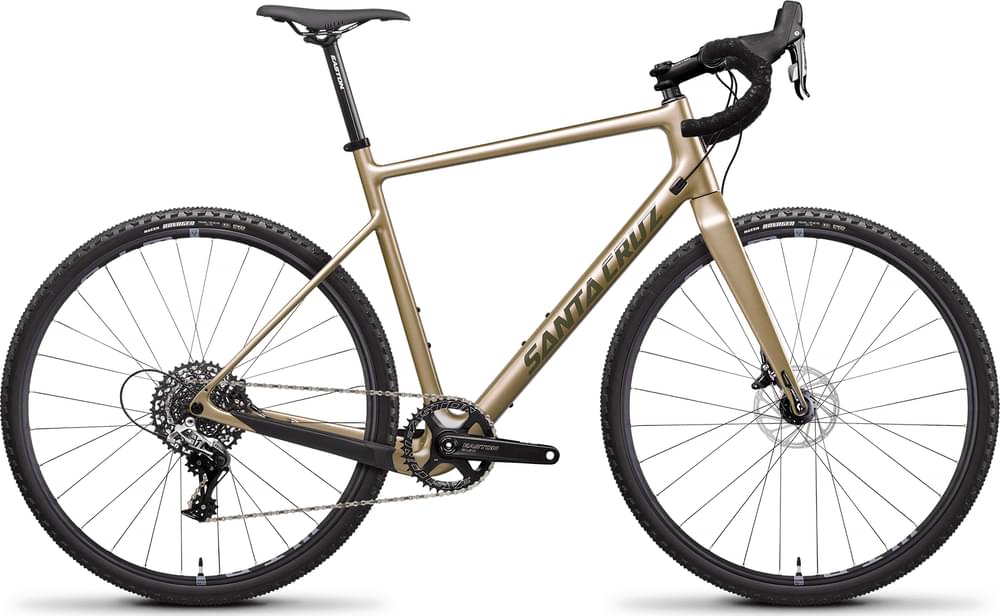

Santa Cruz Stigmata Rival / Carbon CC / 700c 2022
2022 Road
Estimate price |
4,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival 1, Easton -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 169cm
54cm
167cm - 176cm
56cm
174cm - 184cm
58cm
182cm - 189cm
60cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stigmata Rival / Carbon CC / 700c
Drivetrain
Rear Derailleur
Rival 1 Long Cage, 11sp
Shift Levers
SRAM Rival 1
Cassette
SRAM PG1150, 11spd, 10-42t
Crank
Easton EA90, 40t - 170mm (52), 172.5mm (54-56), 175mm (58-60)
Bottom Bracket
Easton BSA BB
Chain
SRAM PC1170
Wheels
Front Hub
DT Swiss 370 100X12
Rear Hub
DT Swiss 370,142x12, XD, 28h
Rims
WTB EZR i23p 700c
Spokes
Sapim Race
Tires
Front: Maxxis Ravager EXO, 700x40c, Rear: Maxxis Ravager EXO, 700x40c
Brakes
Brakes
SRAM Rival 1 Flat Mount
Disk Rotors
Avid Centerline 160mm
Cockpit
Stem
Easton EA50 Stem
Handlebar
Easton EA50 AX
Grips
Velo Bar Tape
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Pro Saddle or WTB Volt
Seatpost
Easton EA50, 27.2, 12mm offset, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 280 mm | 282 mm | 282 mm | 284 mm | 284 mm |
| Front Center | 595 mm | 600 mm | 610 mm | 618 mm | 637 mm |
| Rake | 50 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 67 mm | 69 mm | 65 mm | 66 mm | 66 mm |
| Stack | 548 mm | 569 mm | 589 mm | 602 mm | 621 mm |
| Reach | 365 mm | 373 mm | 381 mm | 385 mm | 398 mm |
| Top Tube Length | 519 mm | 538 mm | 558 mm | 565 mm | 584 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 495 mm | 520 mm | 545 mm | 565 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1008 mm | 1018 mm | 1027 mm | 1046 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 747 mm | 769 mm | 790 mm | 809 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 174 cm | 182 cm | 187 cm |
| Rider Max Height | 169 cm | 176 cm | 184 cm | 189 cm | 196 cm |
Model Overview
Stigmata Rival / Carbon CC / 700c is part of the Santacruz Stigmata model. Santa Cruz launched 43 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Santa Cruz Stigmata Rival / Carbon CC / 700c 2022 is the cheapest bike model and costs 4299$. Santa Cruz STIGMATA Force AXS / RSV / 1X / Carbon CC / 700c 2022 is the most expensive one and costs 8149$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4299$. Comparing the average cost of a Gravel bike to this one, you will see that Stigmata Rival / Carbon CC / 700c price is 74.61% more expensive.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Stigmata Rival / Carbon CC / 700c 2022 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Stigmata Rival / Carbon CC / 700c has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 160 cm – 196 cm (5.25 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
