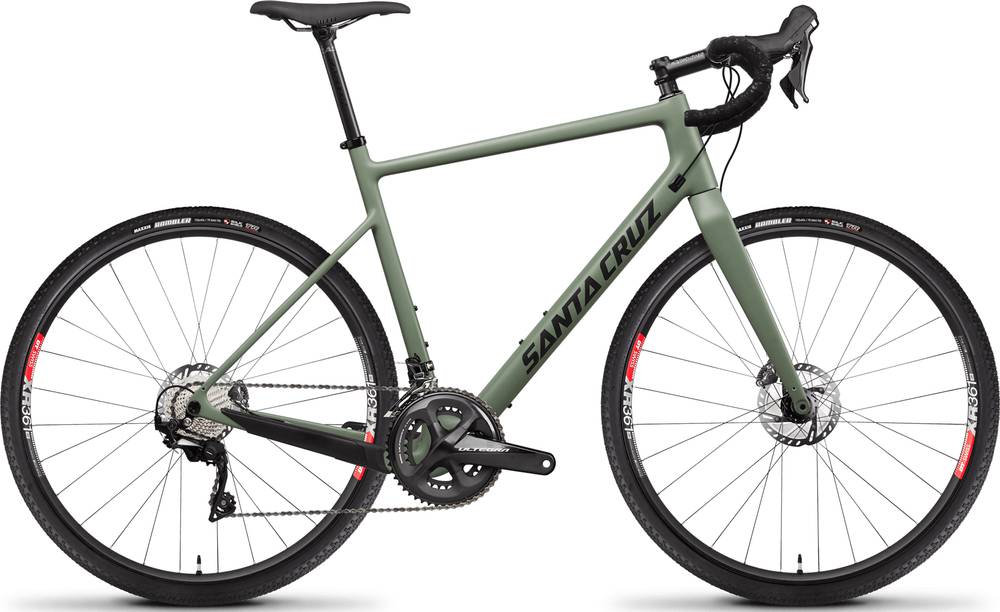

Santa Cruz Stigmata Ultegra / Carbon CC / 700c 2020
2020 Road
Estimate price |
4,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 169cm
54cm
166cm - 177cm
56cm
174cm - 184cm
58cm
181cm - 189cm
60cm
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stigmata Ultegra / Carbon CC / 700c
Drivetrain
Rear Derailleur
Shimano Ultegra RX 11spd
Front Derailleur
Shimano Ultegra Braze-On 11spd
Shift Levers
Shimano Ultegra 8020 Shifters
Cassette
Shimano Ultegra HG800 11-34t
Crank
Shimano Ultegra 11SPD 50/34 (52cm, 170mm; 54-56cm, 172.5mm; 58-60cm, 175mm)
Bottom Bracket
Shimano Ultegra BB
Chain
Shimano HG601 Chain
Wheels
Front Hub
DT 350 12x100 Centerlock 28h
Rear Hub
DT 350 12x142 11spd Centerlock 28h
Rims
DT XR 361 Asym 29" 28h
Spokes
DT Competition Race (28)
Tires
Front: Maxxis Rambler 700x40c, Rear: Maxxis Rambler 700x40c
Brakes
Brakes
Shimano Ultegra 8070 Flat Mount Brakes
Disk Rotors
Shimano RT-800 Ice Tech Centerlock 160mm
Cockpit
Stem
Easton EA90 Stem
Handlebar
Easton EA70 AX flare bar
Grips
Velo Bar Tape
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
Easton EC70 27.2 Zero Offset 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 277 mm | 279 mm | 279 mm | 281 mm | 281 mm |
| Front Center | 595 mm | 600 mm | 610 mm | 618 mm | 637 mm |
| Rake | 50 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 67 mm | 69 mm | 65 mm | 66 mm | 66 mm |
| Stack | 548 mm | 569 mm | 589 mm | 602 mm | 621 mm |
| Reach | 365 mm | 373 mm | 381 mm | 385 mm | 398 mm |
| Top Tube Length | 519 mm | 538 mm | 558 mm | 565 mm | 584 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 495 mm | 520 mm | 545 mm | 565 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1008 mm | 1018 mm | 1027 mm | 1046 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 747 mm | 769 mm | 790 mm | 809 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 166 cm | 174 cm | 181 cm | 187 cm |
| Rider Max Height | 169 cm | 177 cm | 184 cm | 189 cm | 195 cm |
Model Overview
Stigmata Ultegra / Carbon CC / 700c is a Santacruz Stigmata model. There are 43 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Santa Cruz Stigmata Rival / Carbon CC / 700c 2020 has a starting price of 3599$. Santa Cruz Stigmata Red AXS Reserve / Carbon CC / 700c 2020 on the other hand is the most expensive at 9899$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 4599$. If we compare this with the average Gravel bike cost we notice that the price is 86.8% more expensive.
Stigmata Ultegra / Carbon CC / 700c components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Stigmata Ultegra / Carbon CC / 700c 2020 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 160 cm – 195 cm (5.25 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
