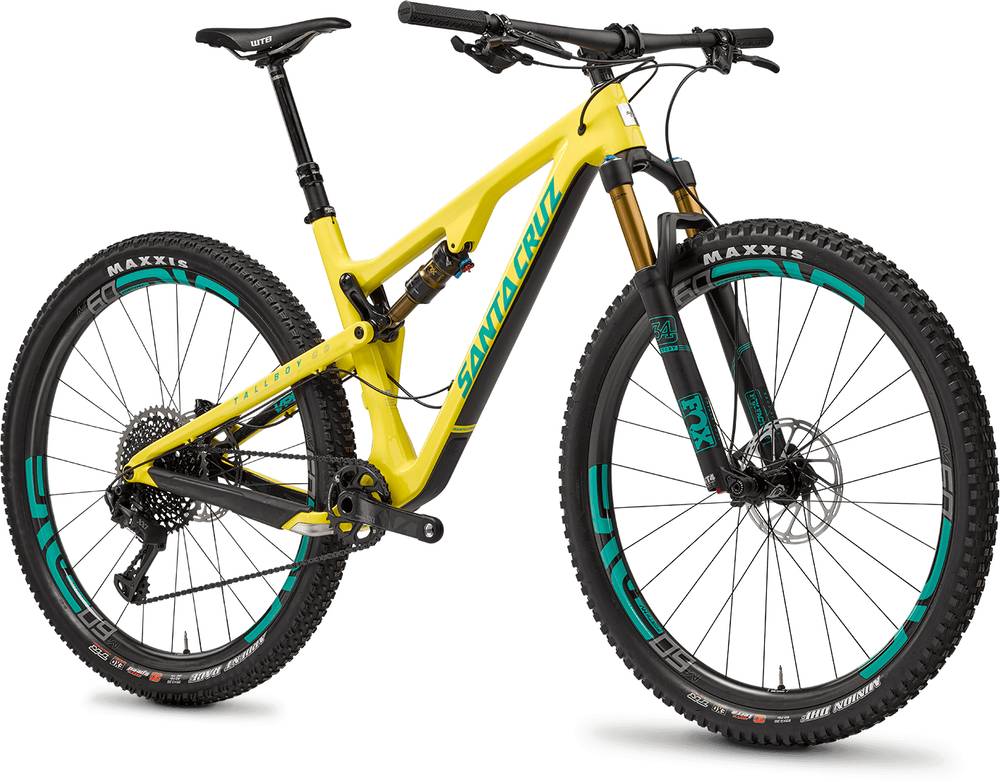

Santa Cruz Tallboy CC XX1 2017
2017 Mountain
Estimate price |
7,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox Sektor
-
Groupset NX, XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Rock Shox Sektor Silver RL 130
Rear Shock
Fox Float Performance
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
Shimano XT M8020 Side Swing
Shift Levers
SRAM NX
Cassette
SRAM PG1130; 11-42t
Crank
Race Face Aeffect, 30 Tooth
Bottom Bracket
Included w/ crankset
Chain
SRAM PC1110
Wheels
Front Hub
Novatec D711; Torque Cap; 15x110mm
Rear Hub
Novatec D712; 12x148mm
Rims
Race Face AR 40
Spokes
DT Swiss Champion
Tires
Maxxis Rekon EXO 3C, Tubeless Ready, 27.5x2.8
Brakes
Brakes
SRAM Level
Disk Rotors
Avid Centerline; 180mm
Cockpit
Stem
Race Face Ride, 35mm clamp
Handlebar
Race Face Ride Lo-Rise; 760mm; 35mm clamp
Grips
Santa Cruz Palmdale Lock-on
Headset
Cane Creek 10 Series; integrated
Seat
Saddle
WTB Volt Sport
Seatpost
Race Face Ride 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 684 mm | 713 mm | 733 mm | 763 mm | 799 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 601 mm | 610 mm | 610 mm | 624 mm | 638 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm | 512 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm | 660 mm | 696 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1152 mm | 1172 mm | 1202 mm | 1238 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 712 mm | 713 mm | 714 mm | 716 mm | 711 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
Tallboy CC XX1 completes the Santacruz Tallboy model. 64 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Santa Cruz Tallboy D 2017 is the most economical model, with a starting price of 2599$. Santa Cruz Tallboy CC XT 2017 on the other hand costs 8000$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Santa Cruz released this model in 2017, its price was 7999$. If we compare this with the average Trail bike cost we notice that the price is 189.61% more expensive.
Tallboy CC XX1 components
Fork
The fork installed on this bike is the RockShox Sektor model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on Tallboy CC XX1 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
