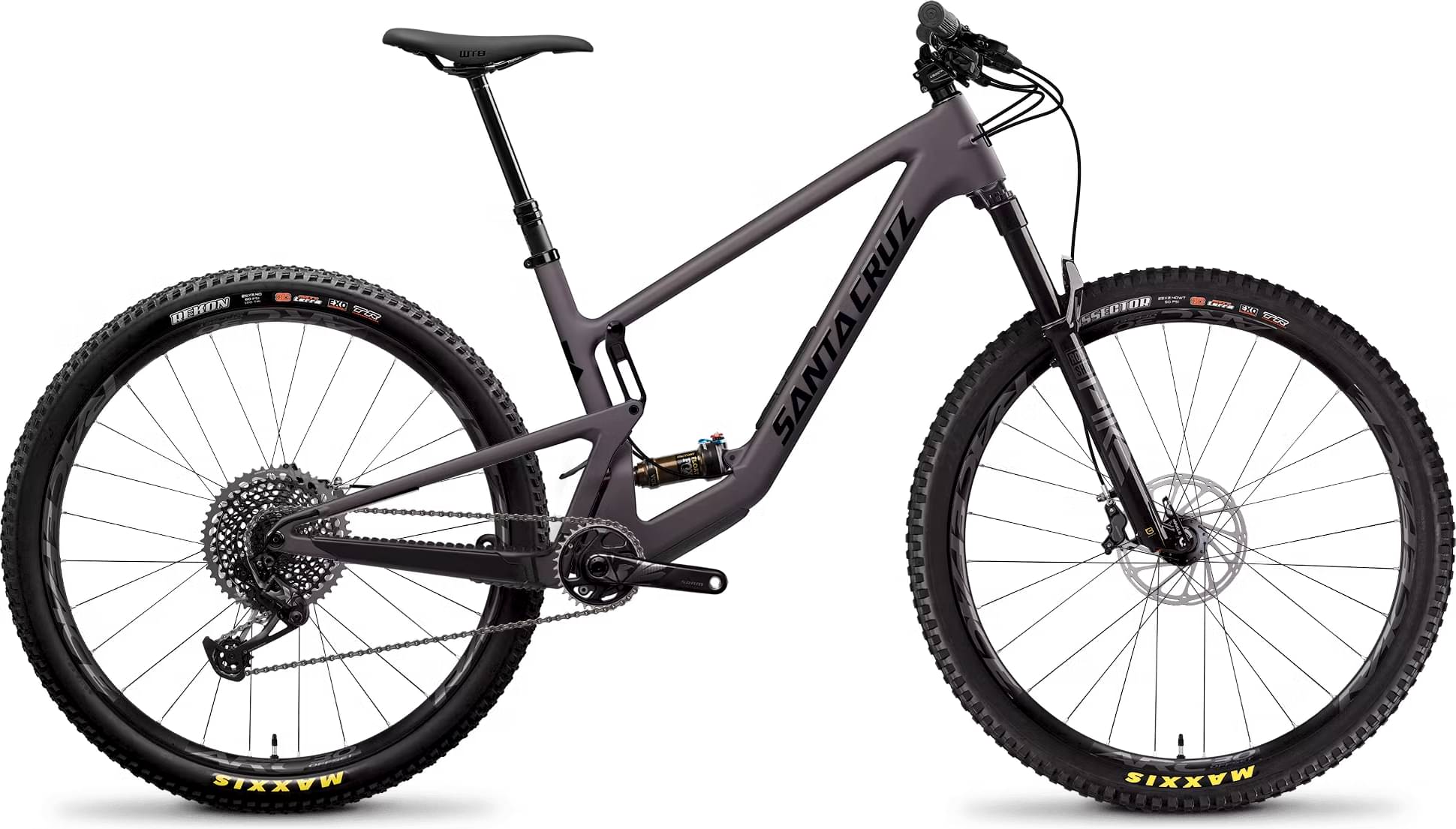

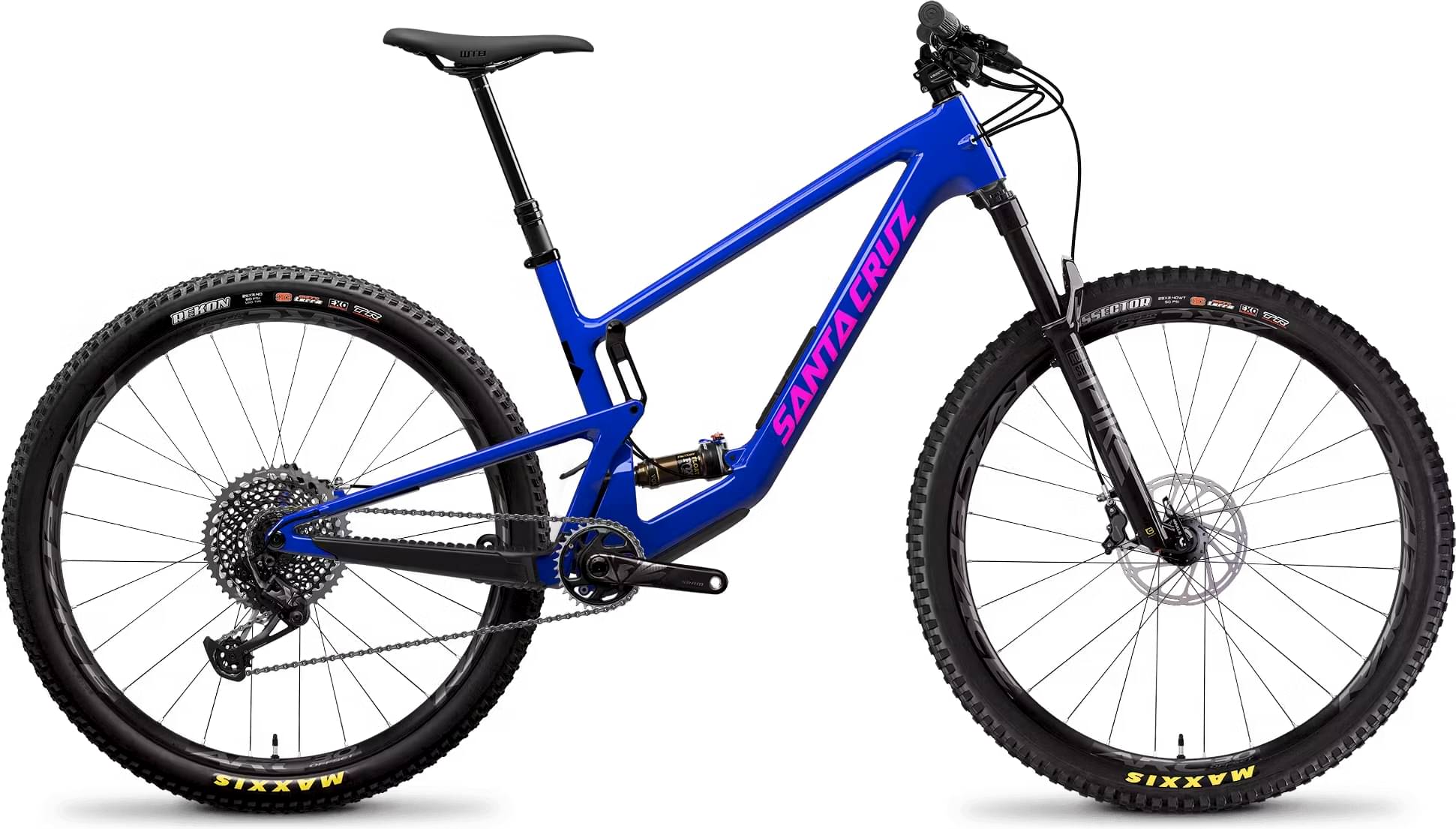

Santa Cruz TALLBOY X01 / Carbon CC 2023
2023 Mountain
Estimate price |
8,249$
Weight | 13.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TALLBOY X01 / Carbon CC
Suspension Fork
RockShox Pike Ultimate, 130mm
Rear Shock
FOX Float Factory DPS 190x45
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12spd
Shift Levers
SRAM X01 Eagle, 12spd
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM X1 Carbon Eagle 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
Front: i9 1/1, 15x110, Torque Cap, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rear Hub
Front: i9 1/1, 15x110, Torque Cap, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rims
Front: RaceFace ARC Offset 30 29", Rear: RaceFace ARC Offset 30 29"
Tires
Front: Maxxis Dissector 29"x2.4"WT, 3C MaxxTerra, EXO, TR, Rear: Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO, TR
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Ti
Seatpost
RockShox Reverb Stealth, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.43 mm | 1.36 mm | 1.37 mm | 1.32 mm | 1.33 mm | 1.3 mm | 1.31 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 708 mm | 708 mm | 737 mm | 737 mm | 766 mm | 766 mm | 790 mm | 790 mm | 818 mm | 818 mm | 847 mm | 847 mm |
| Rake | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 119 mm | 121 mm | 119 mm | 121 mm | 119 mm | 121 mm | 119 mm | 121 mm | 119 mm | 120 mm | 120 mm | 121 mm |
| Stack | 605 mm | 607 mm | 614 mm | 616 mm | 623 mm | 625 mm | 632 mm | 634 mm | 650 | 652 mm | 660 mm | 662 mm |
| Reach | 409 mm | 407 mm | 434 mm | 432 mm | 459 mm | 457 mm | 479 mm | 477 mm | 499 mm | 497 mm | 524 mm | 522 mm |
| Top Tube Length | 559 mm | 560 mm | 583 mm | 584 mm | 606 mm | 607 mm | 626 mm | 627 mm | 648 mm | 649 mm | 675 mm | 675 mm |
| Seat Tube Angle | 76 ° | 75.7 ° | 76.3 ° | 76 ° | 76.7 ° | 76.4 ° | 76.8 ° | 76.6 ° | 77 ° | 76.8 ° | 77.1 ° | 76.8 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 145 mm | 145 mm | 155 mm | 155 mm |
| Chainstay Length | 434 mm | 435 mm | 434 mm | 435 mm | 437 mm | 438 mm | 441 mm | 442 mm | 443 mm | 444 mm | 447 mm | 448 mm |
| Wheelbase | 1142 mm | 1142 mm | 1171 mm | 1171 mm | 1203 mm | 1203 mm | 1231 mm | 1231 mm | 1261 mm | 1262 mm | 1294 mm | 1295 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 684 mm | 680 mm | 697 mm | 695 mm | 700 | 697 mm | 702 mm | 699 mm | 702 mm | 699 mm | 705 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
About this model
TALLBOY X01 / Carbon CC is part of the Santacruz Tallboy model. There are 64 bikes that carry this model name. Take a sneak peek at all Santacruz Tallboy bikes models from 2023, by clicking here.
Model range prices
Santa Cruz TALLBOY R / Carbon C 2023 is the most economical model, with a starting price of 5299$. Santa Cruz TALLBOY X01 AXS RSV / Carbon CC 2023 on the other hand costs 10049$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8249$. In conclusion, this bike price is 198.66% higher than the price of the average Trail bike.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.88 kg (28.4 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Santa Cruz TALLBOY X01 / Carbon CC it’s weighing 13.3 kg (29.32 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.26% heavier than the average weight of Trail bikes.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX Float Factory DPS 190×45 rear shock model, which has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Santa Cruz TALLBOY X01 / Carbon CC 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz TALLBOY X01 / Carbon CC is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 12 sizes available for this model. Rider height can be anywhere between 142 cm – 201 cm (4.66 ft – 6.59 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
