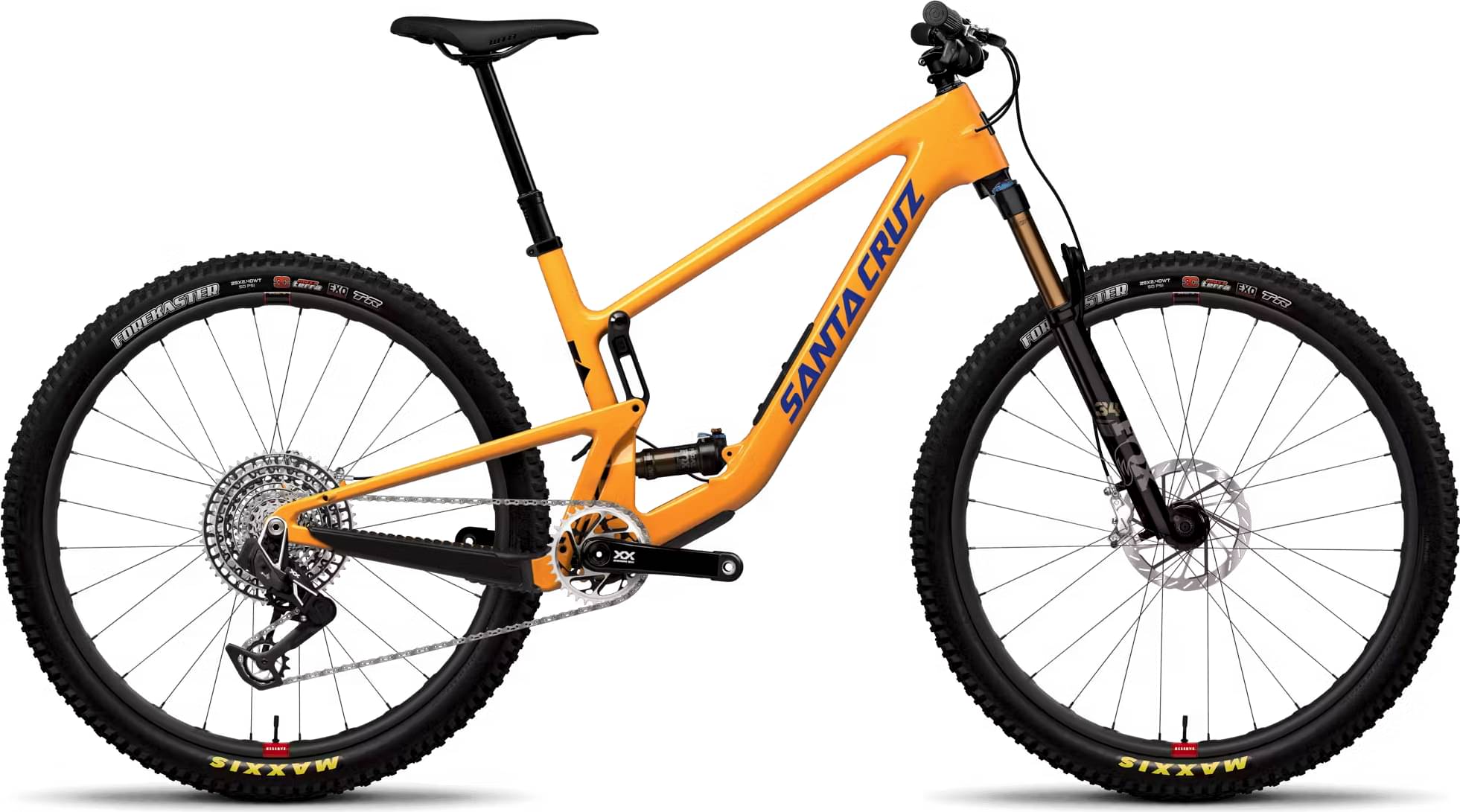

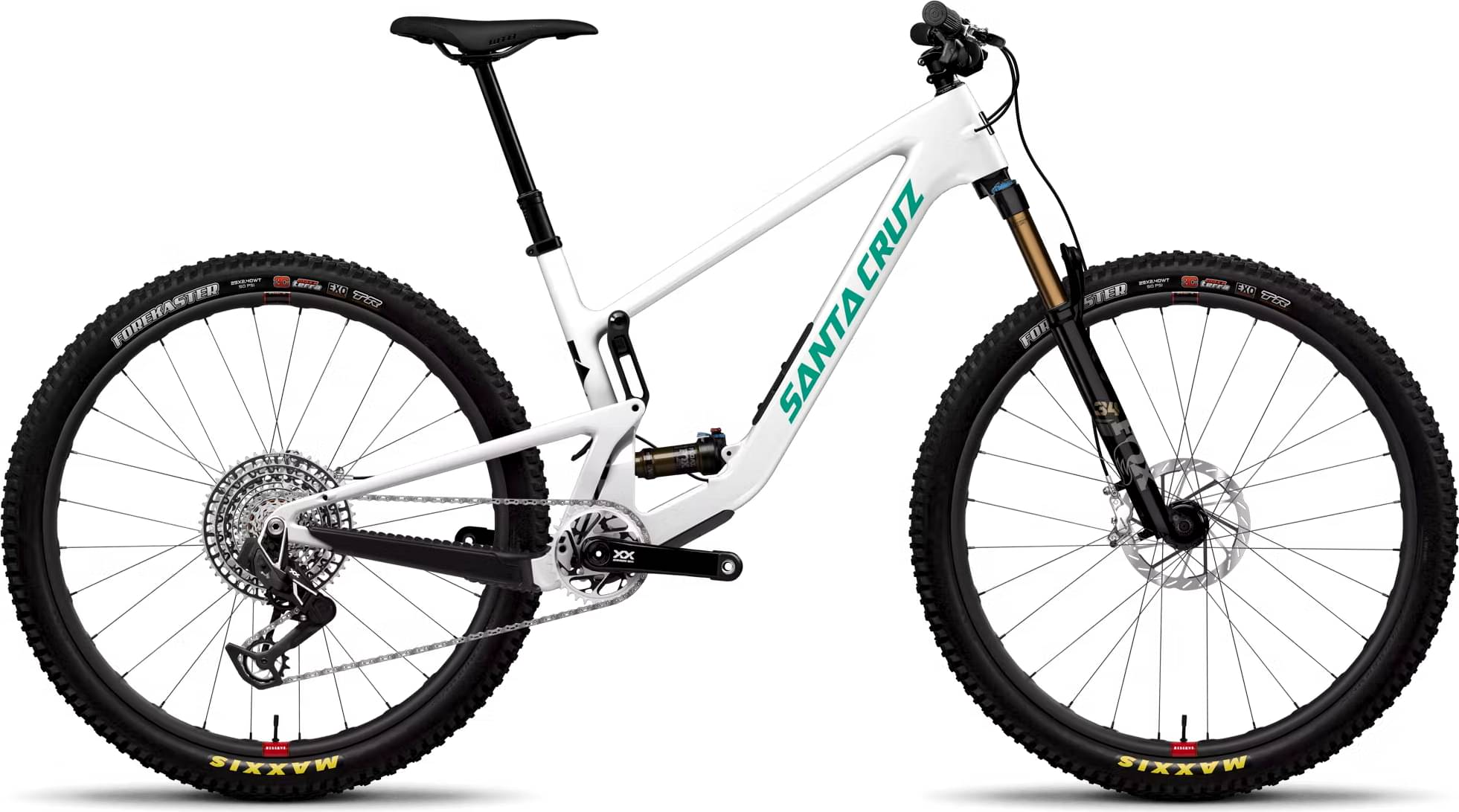

Santa Cruz TALLBOY XX AXS RSV / Carbon CC 2024
2024 Mountain
Estimate price |
10,999$
Weight | 12.97 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX SL Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TALLBOY XX AXS RSV / Carbon CC
Suspension Fork
FOX 34 Float Factory, Grip2, 130mm
Rear Shock
FOX Float Factory, 190x45
Drivetrain
Rear Derailleur
SRAM XX SL Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Ultimate Bridge
Cassette
SRAM XX SL Eagle T-Type, 10-52t
Crank
SRAM XX SL Eagle DUB T-Type Crankset, 32t
Bottom Bracket
SRAM DUB BSA MTB 68/73mm, 4.5mm spacer
Chain
SRAM XX SL Eagle T-Type, Flattop, 12spd
Wheels
Front Hub
Front: Industry Nine Hydra, 15x110, 6-Bolt 28h, Rear: Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h
Rear Hub
Front: Industry Nine Hydra, 15x110, 6-Bolt 28h, Rear: Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h
Rims
Front: Reserve 30|SL 29", Rear: Reserve 30|SL 29"
Tires
Front: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO, Rear: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
Brakes
Brakes
SRAM Level Ultimate Stealth 4-Piston
Cockpit
Stem
Industry Nine A35, 40mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Grips
Santa Cruz Bicycles House Grips
Headset
Chris King DropSet 3 Integrated Headset
Seat
Saddle
WTB Silverado Medium, Ti
Seatpost
OneUp V2 Dropper Post, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.43 mm | 1.36 mm | 1.37 mm | 1.32 mm | 1.33 mm | 1.3 mm | 1.31 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 708 mm | 708 mm | 737 mm | 737 mm | 766 mm | 766 mm | 790 mm | 790 mm | 818 mm | 818 mm | 847 mm | 847 mm |
| Rake | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 119 mm | 121 mm | 119 mm | 121 mm | 119 mm | 121 mm | 119 mm | 121 mm | 119 mm | 120 mm | 120 mm | 121 mm |
| Stack | 605 mm | 607 mm | 614 mm | 616 mm | 623 mm | 625 mm | 632 mm | 634 mm | 650 | 652 mm | 660 mm | 662 mm |
| Reach | 409 mm | 407 mm | 434 mm | 432 mm | 459 mm | 457 mm | 479 mm | 477 mm | 499 mm | 497 mm | 524 mm | 522 mm |
| Top Tube Length | 559 mm | 560 mm | 583 mm | 584 mm | 606 mm | 607 mm | 626 mm | 627 mm | 648 mm | 649 mm | 675 mm | 675 mm |
| Seat Tube Angle | 76 ° | 75.7 ° | 76.3 ° | 76 ° | 76.7 ° | 76.4 ° | 76.8 ° | 76.6 ° | 77 ° | 76.8 ° | 77.1 ° | 76.8 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 145 mm | 145 mm | 155 mm | 155 mm |
| Chainstay Length | 434 mm | 435 mm | 434 mm | 435 mm | 437 mm | 438 mm | 441 mm | 442 mm | 443 mm | 444 mm | 447 mm | 448 mm |
| Wheelbase | 1142 mm | 1142 mm | 1171 mm | 1171 mm | 1203 mm | 1203 mm | 1231 mm | 1231 mm | 1261 mm | 1262 mm | 1294 mm | 1295 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 684 mm | 680 mm | 697 mm | 695 mm | 700 | 697 mm | 702 mm | 699 mm | 702 mm | 699 mm | 705 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
Model Overview
TALLBOY XX AXS RSV / Carbon CC completes the Santacruz Tallboy model. Santa Cruz launched 64 bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Santa Cruz TALLBOY R / Carbon C 2024 is the cheapest bike model and costs 4799$. Santa Cruz TALLBOY XX AXS RSV / Carbon CC 2024 is the most expensive one and costs 10999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2024 for 10999$. If we compare this with the average Trail bike cost we notice that the price is 298.23% higher.
Trail bikes average weight
The average weight for Trail bikes is 12.88 kg (28.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 12.97 kg (28.59 lbs), Santa Cruz bike is slightly heavier than average. In other words, this model is 0.7% heavier than the average Trail bike.
TALLBOY XX AXS RSV / Carbon CC components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float Factory, with a travel distance of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the TALLBOY XX AXS RSV / Carbon CC model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz TALLBOY XX AXS RSV / Carbon CC has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 12 sizes. They vary from 142 cm – 201 cm (4.66 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the TALLBOY XX AXS RSV / Carbon CC. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
