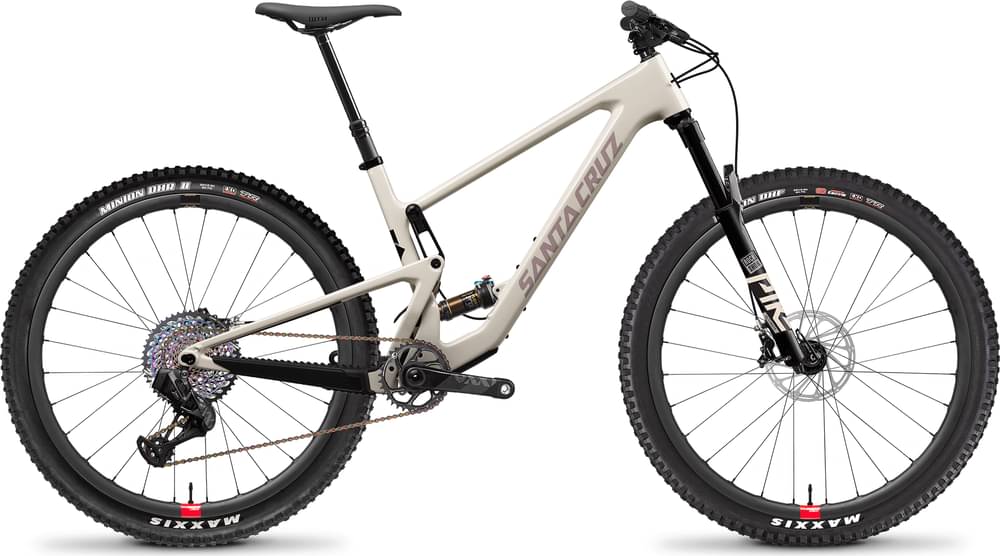

Santa Cruz Tallboy XX1 RSV / Carbon CC / 29 2021
2021 Mountain
Estimate price |
11,549$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 200cm
XXL Low
192cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tallboy XX1 RSV / Carbon CC / 29
Suspension Fork
RockShox Pike Ultimate, 130mm, 29"
Rear Shock
FOX Float Factory DPS
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS, 12spd
Shift Levers
SRAM XX1 Eagle AXS, 12spd
Cassette
SRAM XG1299 Eagle, 12spd, 10-52
Crank
SRAM XX1 Eagle AXS 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM XX1 Eagle, 12spd
Wheels
Front Hub
i9 Hydra, 15x110, Torque Cap, 28h
Rear Hub
I9 Hydra 12x148 XD 28H
Rims
Reserve 27 29" Carbon
Spokes
Sapim D-light
Tires
Front: Maxxis Minion DHF, 29"x2.3", 3C EXO TR, Rear: Maxxis Minion DHR II 29"x2.3" EXO TR
Brakes
Brakes
SRAM G2 Ultimate
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
i9 A35
Handlebar
Santa Cruz Bicycles Carbon Riser
Grips
Santa Cruz Palmdale Grips
Headset
Chris King DropSet 3 Integrated
Seat
Saddle
WTB Silverado Team
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.31 mm | 1.32 mm | 1.3 mm | 1.31 mm | 1.27 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 699 mm | 698 mm | 728 mm | 727 mm | 757 mm | 757 mm | 781 mm | 781 mm | 809 mm | 809 mm | 842 mm | 842 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 119 mm | 120 mm | 119 mm | 121 mm | 119 mm | 120 mm | 119 mm | 120 mm | 119 mm | 120 mm | 120 mm | 120 mm |
| Stack | 596 mm | 597 mm | 605 mm | 607 mm | 614 mm | 616 mm | 623 mm | 625 mm | 641 mm | 643 mm | 660 mm | 661 mm |
| Reach | 404 mm | 402 mm | 429 mm | 427 mm | 454 mm | 452 mm | 474 mm | 472 mm | 494 mm | 492 mm | 519 mm | 517 mm |
| Top Tube Length | 543 mm | 544 mm | 571 mm | 572 mm | 600 mm | 601 mm | 623 mm | 626 mm | 650 | 651 mm | 682 mm | 683 mm |
| Seat Tube Angle | 76.8 ° | 76.5 ° | 76.7 ° | 76.4 ° | 76.6 ° | 76.3 ° | 76.4 ° | 76.2 ° | 76.2 ° | 76 ° | 76 ° | 75.8 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 140 mm | 140 mm | 160 mm | 160 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1133 mm | 1132 mm | 1162 mm | 1161 mm | 1191 mm | 1191 mm | 1215 mm | 1215 mm | 1243 mm | 1243 mm | 1276 mm | 1276 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 685 mm | 682 mm | 700 | 696 mm | 712 mm | 708 mm | 710 mm | 707 mm | 706 mm | 702 mm | 706 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 194 cm | 194 cm | 200 cm | 200 cm |
Model Overview
Tallboy XX1 RSV / Carbon CC / 29 completes the Santacruz Tallboy model. 64 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Santa Cruz Tallboy D / Aluminum / 29 2021 is the cheapest bike model and costs 3099$. Santa Cruz Tallboy XX1 RSV / Carbon CC / 29 2021 is the most expensive one and costs 11549$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2021 and its price was 11549$. Doing a quick comparison, we notice that Tallboy XX1 RSV / Carbon CC / 29 price is 318.14% higher than the average cost of a Trail bike.
Overview of components
Fork
Santa Cruz Tallboy XX1 RSV / Carbon CC / 29 2021 bike is equipped with the RockShox Pike Ultimate fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float Factory DPS, with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Tallboy XX1 RSV / Carbon CC / 29 are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Tallboy XX1 RSV / Carbon CC / 29 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 12 sizes available for this model. Rider height can be anywhere between 142 cm – 200 cm (4.66 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Santa Cruz Tallboy XX1 RSV / Carbon CC / 29 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
