Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Fork Fox Factory Float 40 -
Groupset X01, Race Face -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon CC
Suspension Fork
Fox 40 Float RC2 27.5 Factory Flat Crown
Rear Shock
Fox DHX2 Factory
Drivetrain
Rear Derailleur
SRAM X01 DH 7-Speed
Shift Levers
SRAM X01 DH 7-Speed
Cassette
SRAM X01 DH 7-Speed
Crank
Raceface SIXC Carbon 165mm, 36 tooth
Bottom Bracket
Included w/ crankset
Chain
SRAM XX1, 11sp
Chain Guide
E13 LG1+
Wheels
Front Hub
DT Swiss 240 110x20
Rear Hub
DT Swiss 240 157x12
Rims
E13 LG1+
Spokes
DT Swiss Competition Double-Butted
Tires
Maxxis High Roller 2 DH 3C TR; 27.5x2.4
Brakes
Brakes
SRAM Guide RSC
Disk Rotors
Avid Centerline; 203mm Front, 200mm Rear
Cockpit
Stem
Santa Cruz Direct-Mount Stem; 35mm clamp
Handlebar
Santa Cruz Carbon 800mm Bar, 35mm clamp
Grips
Santa Cruz Palmdale Lock-on
Headset
Cane Creek 40
Seat
Saddle
WTB High Tail Team
Seatpost
Thomson Elite, 30.9x287mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.48 mm | 1.43 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm | 360 mm | 360 mm |
| Stack | 585.9 mm | 585.9 mm | 594.8 mm | 603.9 mm | 612.5 mm |
| Reach | 376.8 mm | 396 mm | 417.3 mm | 444.3 mm | 468.5 mm |
| Top Tube Length | 563.5 mm | 588.5 mm | 618.5 mm | 648.5 mm | 675.5 mm |
| Seat Tube Angle | 59 ° | 59 ° | 58 ° | 57.5 ° | 57.5 ° |
| Seat Tube Length | 444.5 mm | 457.2 mm | 463.6 mm | 469.9 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 443 mm |
| Wheelbase | 1166 mm | 1185 mm | 1211 mm | 1242 mm | 1271 mm |
| Bottom Bracket Drop | -5 mm | -5 mm | -5 mm | -5 mm | -5 mm |
| Standover Height | 724 mm | 724 mm | 722 mm | 721 mm | 721 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview

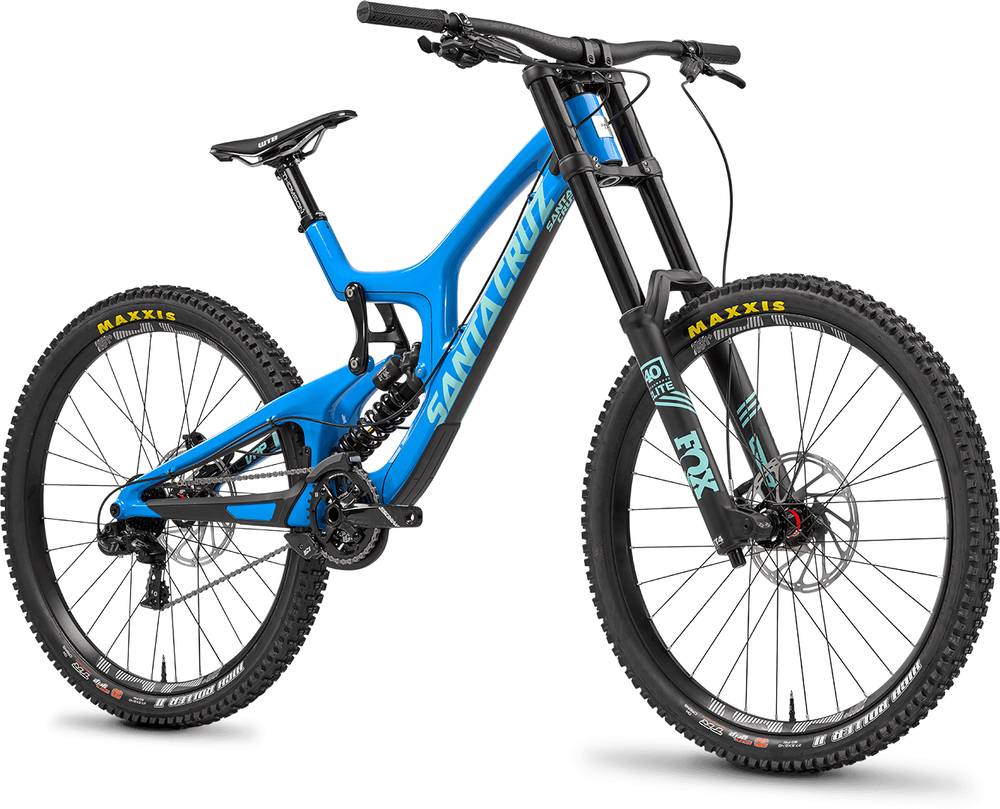

V10 C S is a Santacruz V10 model. Santa Cruz launched 36 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Santa Cruz V10 C S 2017 is the most economical model, with a starting price of 5499$. Santa Cruz V10 CC X01 2017 on the other hand costs 8699$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Santa Cruz V10 C S price was 5499$. Comparing this to the average Downhill bike price, we see that the price is 62.16% higher.
V10 C S components
Fork
Santa Cruz V10 C S 2017 bike is equipped with the Fox Factory Float 40 fork, and has mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The V10 C S 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
