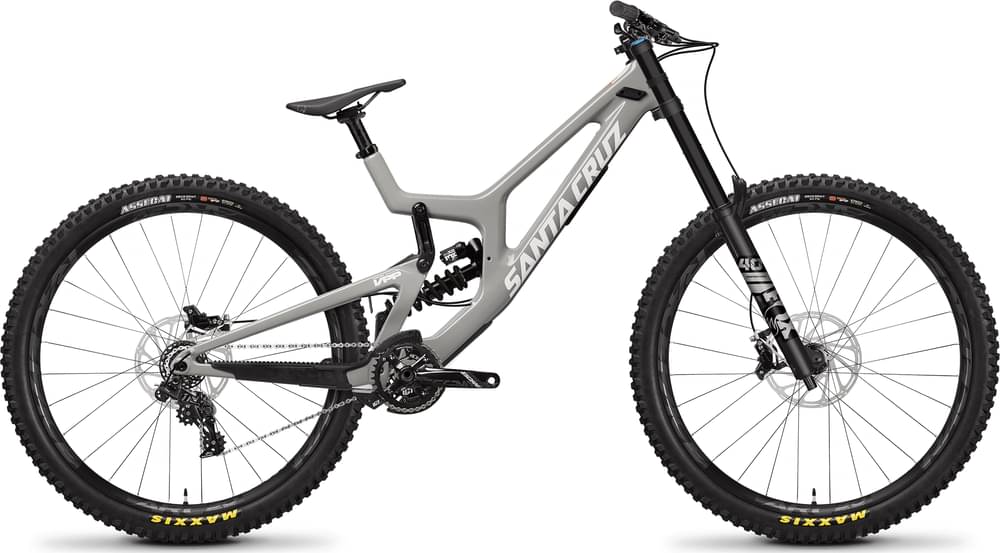

Santa Cruz V10 DH S / Carbon CC / 29 2021
2021 Mountain
Estimate price |
6,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 215mm -
Fork Fox Performance Float 40
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD Low
170cm - 177cm
MD High
170cm - 177cm
LG Low
175cm - 187cm
LG High
175cm - 187cm
XL Low
184cm - 195cm
XL High
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
V10 DH S / Carbon CC / 29
Suspension Fork
Fox 40 Performance, 203mm, 29"
Rear Shock
Fox DHX2 Performance Elite Coil
Drivetrain
Rear Derailleur
SRAM GX DH, 7spd
Shift Levers
SRAM GX, 7spd
Cassette
SRAM PG720 DH, 11-25t
Crank
SRAM Descendant DH, 165mm, 34t
Bottom Bracket
SRAM DUB 83mm
Chain
SRAM PC1110, 11spd
Chain Guide
E13 LG1+
Wheels
Front Hub
DT Swiss 350, 20x110, Boost, 32h
Rear Hub
DT Swiss 350 ISO, 12x157, HG, 32h
Rims
RaceFace ARC HD 30 29"
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Rear: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP
Brakes
Brakes
SRAM Code R
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Santa Cruz Direct Mount
Handlebar
Burgtec RideWide DH Alloy
Grips
Burgtec Bartender Pro Grip Minnar
Headset
Cane Creek 40 Hellbender, ZS49 upper/ EC49 lower
Seat
Saddle
Fizik Alpaca Gravita X5
Seatpost
RaceFace Chester
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD Low | MD High | LG Low | LG High | XL Low | XL High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.45 mm | 1.39 mm | 1.38 mm | 1.31 mm | 1.31 mm |
| Bottom Bracket Height | 351 mm | 356 mm | 351 mm | 356 mm | 351 mm | 356 mm |
| Front Center | 806 mm | 806 mm | 833 mm | 833 mm | 865 mm | 865 mm |
| Rake | 59 mm | 58 mm | 59 mm | 58 mm | 58 mm | 58 mm |
| Trail | 122 mm | 120 mm | 122 mm | 120 mm | 123 mm | 120 mm |
| Stack | 625 mm | 626 mm | 629 mm | 631 mm | 634 mm | 635 mm |
| Reach | 429 mm | 431 mm | 454 mm | 456 mm | 484 mm | 486 mm |
| Seat Tube Length | 445 mm | 445 mm | 455 mm | 455 mm | 465 mm | 465 mm |
| Head Tube Angle | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 105 mm | 110 mm | 110 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 444 mm | 444 mm |
| Wheelbase | 1246 mm | 1245 mm | 1273 mm | 1272 mm | 1310 mm | 1309 mm |
| Bottom Bracket Drop | 21 mm | 16 mm | 21 mm | 16 mm | 21 mm | 16 mm |
| Standover Height | 707 mm | 712 mm | 708 mm | 713 mm | 708 mm | 713 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 170 cm | 170 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 177 cm | 177 cm | 187 cm | 187 cm | 195 cm | 195 cm |
Model Overview
V10 DH S / Carbon CC / 29 completes the Santacruz V10 model. 36 bikes variations carry this model name so far. Take a sneak peek at all Santacruz V10 bikes models from 2021, by clicking here.
Model range prices
Santa Cruz V10 DH S / Carbon CC / 29 2021 is the most affordable bike of this model and has a price of 6599$. On the other hand, Santa Cruz V10 DH X01 / Carbon CC / 27.5 2021, is the most expensive and costs 8799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Santa Cruz released this model in 2021, its price was 6599$. In conclusion, this bike price is 94.6% more expensive than the price of the average Downhill bike.
Overview of components
Fork
The Fox Performance Float 40 is included from the factory. It has a travel distance of 203mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the Fox DHX2 Performance Elite Coil model, with a travel of 215mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the V10 DH S / Carbon CC / 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz V10 DH S / Carbon CC / 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 6 sizes. They vary from 170 cm – 195 cm (5.58 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
