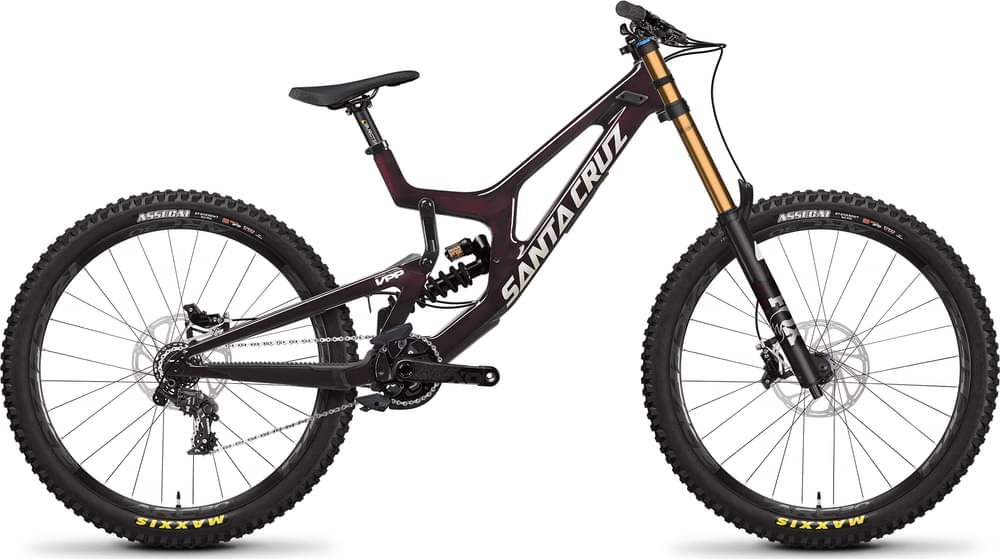

Santa Cruz V10 DH X01 / Carbon CC / 27.5 2022
2022 Mountain
Estimate price |
8,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 215mm -
Fork Fox Factory Float 40
-
Groupset X01 -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
152cm - 169cm
SM High
152cm - 169cm
MD Low
167cm - 178cm
MD High
167cm - 178cm
LG Low
175cm - 185cm
LG High
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
V10 DH X01 / Carbon CC / 27.5
Suspension Fork
FOX 40 Factory, 203mm, 27.5"
Rear Shock
Fox DHX2 Factory Coil
Drivetrain
Rear Derailleur
SRAM X01 DH, 7spd
Shift Levers
SRAM X01 DH
Cassette
SRAM X01 DH, 7spd
Crank
SRAM X01 DH, DUB 83, 165mm, 36t
Bottom Bracket
SRAM DUB 83mm
Chain
SRAM PC1170, 11spd
Chain Guide
E13 Vario DH Guide
Wheels
Front Hub
DT Swiss 350, 20x110, Boost, 32h
Rear Hub
DT Swiss 350 ISO, 12x157, XD, 32h
Rims
RaceFace ARC HD 30 27.5" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 27.5"x2.5", 3C, MaxxGRIP, Rear: Maxxis Assegai 27.5"x2.5", 3C, MaxxGRIP
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline Rotor 203mm (F) / 200mm (R)
Cockpit
Stem
Santa Cruz Direct Mount 35x45/50
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Burgtec Bartender Pro Grip Minnar or VP VPG-101A
Headset
Cane Creek 40 ZS49/EC49 Headset
Seat
Saddle
Fizik Alpaca Gravita X5 Saddle or WTB Volt
Seatpost
Burgtec Xpress Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM High | MD Low | MD High | LG Low | LG High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.4 mm | 1.4 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 351 mm | 356 mm | 351 mm | 356 mm | 351 mm | 356 mm |
| Front Center | 769 mm | 769 mm | 798 mm | 798 mm | 825 mm | 825 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 121 mm | 118 mm | 121 mm | 118 mm | 121 mm | 118 mm |
| Stack | 603 mm | 604 mm | 611 mm | 613 mm | 616 mm | 617 mm |
| Reach | 411 mm | 413 mm | 436 mm | 438 mm | 461 mm | 463 mm |
| Seat Tube Length | 435 mm | 435 mm | 445 mm | 445 mm | 455 mm | 455 mm |
| Head Tube Angle | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 115 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 436 mm | 436 mm | 441 mm | 441 mm |
| Wheelbase | 1201 mm | 1200 mm | 1235 mm | 1234 mm | 1267 mm | 1266 mm |
| Bottom Bracket Drop | 3 mm | -2 mm | 3 mm | -2 mm | 3 mm | -2 mm |
| Standover Height | 708 mm | 713 mm | 708 mm | 713 mm | 708 mm | 713 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 152 cm | 167 cm | 167 cm | 175 cm | 175 cm |
| Rider Max Height | 169 cm | 169 cm | 178 cm | 178 cm | 185 cm | 185 cm |
About this model
V10 DH X01 / Carbon CC / 27.5 is part of the Santacruz V10 model. 36 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Santa Cruz V10 DH S / Carbon CC / MX 2022 is the most affordable bike of this model and has a price of 6699$. On the other hand, Santa Cruz V10 DH X01 / Carbon CC / MX 2022, is the most expensive and costs 8899$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8899$. Comparing this to the average Downhill bike price, we see that the price is 162.43% higher.
Overview of components
Fork
The V10 DH X01 / Carbon CC / 27.5 comes factory-installed with the Fox Factory Float 40 fork. This has a travel range of 203mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the Fox DHX2 Factory Coil model, with a travel of 215mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The V10 DH X01 / Carbon CC / 27.5 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz V10 DH X01 / Carbon CC / 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz V10 DH X01 / Carbon CC / 27.5 bike has 6 sizes, in the range of 152 cm – 185 cm (4.99 ft – 6.07 ft). In short, you can easily find one that suits you.
