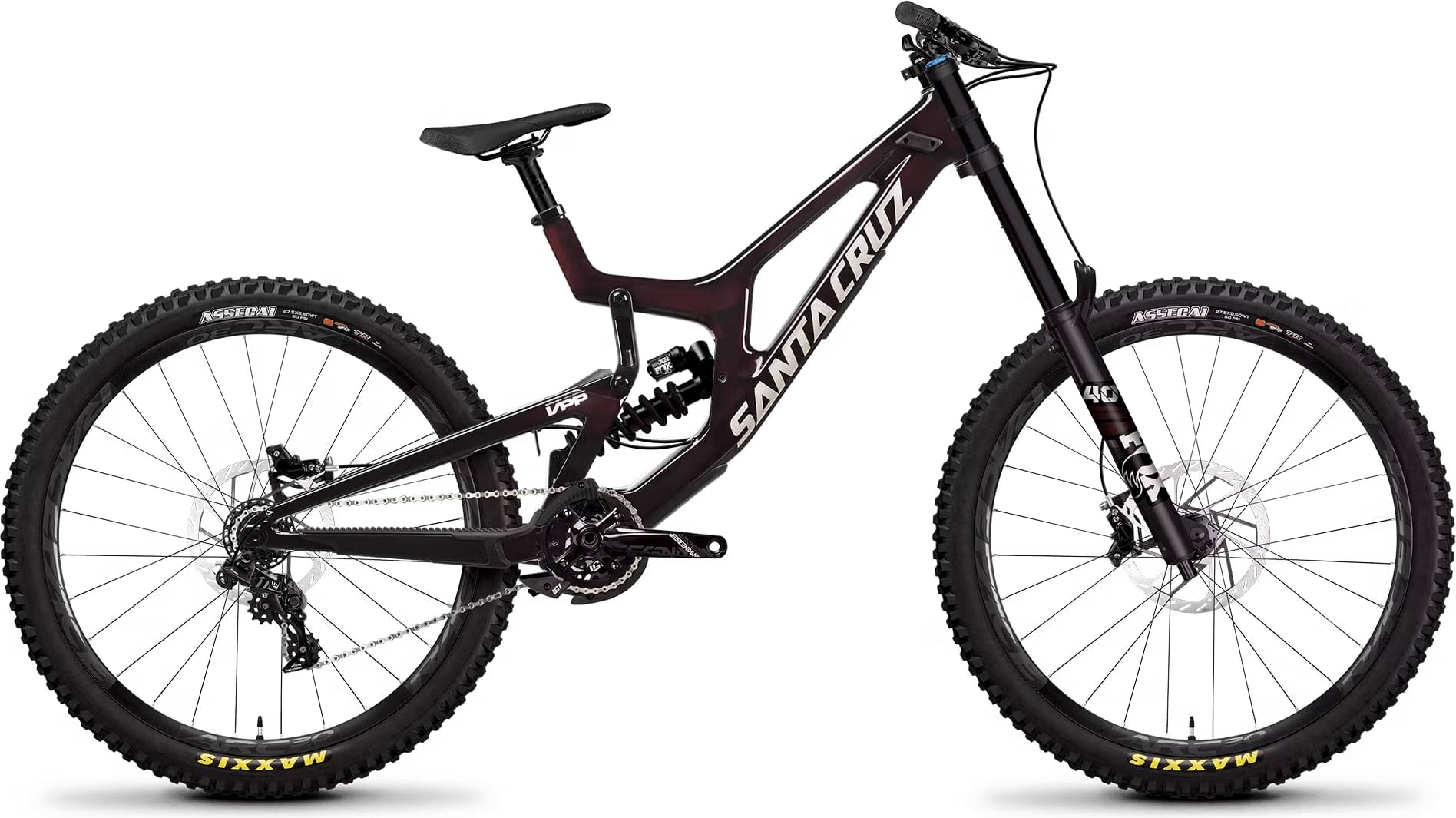

Santa Cruz V10 S 27.5 / Carbon CC 2023
2023 Mountain
Estimate price |
7,149$
Weight | 16.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 215mm -
Fork Fox Performance Float 40
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
152cm - 169cm
SM High
152cm - 169cm
MD Low
167cm - 178cm
MD Low
167cm - 178cm
MD High
167cm - 178cm
MD High
167cm - 178cm
LG Low
175cm - 186cm
LG Low
175cm - 186cm
LG High
175cm - 186cm
LG High
175cm - 186cm
XL Low
184cm - 196cm
XL High
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
V10 S 27.5 / Carbon CC
Suspension Fork
FOX 40 Performance, 203mm
Rear Shock
FOX DHX2 Performance Elite Coil
Drivetrain
Rear Derailleur
SRAM GX DH, 7spd
Shift Levers
SRAM GX, 7spd
Cassette
SRAM PG720 DH, 11-25t
Crank
SRAM Descendant DH, 165mm, 36t
Bottom Bracket
SRAM DUB 83mm Threaded BB
Chain
SRAM PC1110, 11spd
Chain Guide
E13 Vario DH Guide
Wheels
Front Hub
Front: DT Swiss 350, 20x110, Boost, 32h, Rear: DT Swiss 350 ISO, 12x157, HG, 32h
Rear Hub
Front: DT Swiss 350, 20x110, Boost, 32h, Rear: DT Swiss 350 ISO, 12x157, HG, 32h
Rims
Front: RaceFace ARC HD 30 27.5" Rims, Rear: RaceFace ARC HD 30 27.5" Rims
Tires
Front: Maxxis Assegai 27.5"x2.5", 3C, MaxxGRIP, Rear: Maxxis Assegai 27.5"x2.5", 3C, MaxxGRIP
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Santa Cruz Direct Mount 35x45/50
Handlebar
Burgtec RideWide DH Alloy Bar
Grips
Burgtec Bartender Pro Grip Minnar
Headset
Cane Creek 40 ZS49/EC49 Headset
Seat
Saddle
Fizik Alpaca Gravita X5 Saddle
Seatpost
RaceFace Chester, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM High | MD Low | MD Low | MD High | MD High | LG Low | LG Low | LG High | LG High | XL Low | XL High |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.45 mm | 1.45 mm | 1.45 mm | 1.45 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 351 mm | 356 mm | 351 mm | 351 mm | 356 mm | 356 mm | 351 mm | 351 mm | 356 mm | 356 mm | 351 mm | 356 mm |
| Front Center | 769 mm | 769 mm | 806 mm | 806 mm | 806 mm | 806 mm | 833 mm | 833 mm | 833 mm | 833 mm | 865 mm | 865 mm |
| Rake | 52 mm | 52 mm | 59 mm | 58 mm | 58 mm | 58 mm | 59 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Trail | 121 mm | 118 mm | 122 mm | 114 mm | 120 mm | 111 mm | 122 mm | 114 mm | 120 mm | 111 mm | 123 mm | 120 mm |
| Stack | 603 mm | 604 mm | 632 mm | 632 mm | 633 mm | 633 mm | 636 mm | 636 mm | 638 mm | 638 mm | 641 mm | 642 mm |
| Reach | 411 mm | 413 mm | 436 mm | 436 mm | 438 mm | 438 mm | 461 mm | 461 mm | 463 mm | 463 mm | 491 mm | 493 mm |
| Seat Tube Length | 435 mm | 435 mm | 445 mm | 445 mm | 445 mm | 445 mm | 455 mm | 455 mm | 455 mm | 455 mm | 465 mm | 465 mm |
| Head Tube Angle | 63.3 ° | 63.7 ° | 63.3 ° | 63.3 ° | 63.7 ° | 63.7 ° | 63.3 ° | 63.3 ° | 63.7 ° | 63.7 ° | 63.3 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 105 mm | 105 mm | 110 mm | 110 mm |
| Chainstay Length | 431 mm | 431 mm | 446 mm | 447 mm | 446 mm | 446 mm | 446 mm | 447 mm | 446 mm | 446 mm | 451 mm | 451 mm |
| Wheelbase | 1201 mm | 1200 mm | 1253 mm | 1253 mm | 1252 mm | 1252 mm | 1280 mm | 1280 mm | 1279 mm | 1279 mm | 1317 mm | 1316 mm |
| Bottom Bracket Drop | 3 mm | -2 mm | 21 mm | 21 mm | 16 mm | 16 mm | 21 mm | 21 mm | 16 mm | 16 mm | 21 mm | 16 mm |
| Standover Height | 708 mm | 713 mm | 714 mm | 714 mm | 719 mm | 719 mm | 715 mm | 715 mm | 720 mm | 720 mm | 715 mm | 720 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 152 cm | 152 cm | 167 cm | 167 cm | 167 cm | 167 cm | 175 cm | 175 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 169 cm | 169 cm | 178 cm | 178 cm | 178 cm | 178 cm | 186 cm | 186 cm | 186 cm | 186 cm | 196 cm | 196 cm |
About this model
V10 S 27.5 / Carbon CC is a Santacruz V10 model. Santa Cruz launched 36 bikes of this model so far. You can easily view all of the Santacruz V10 bikes models from 2023, here.
Model range prices
The most economical model, the Santa Cruz V10 S 27.5 / Carbon CC 2023 has a starting price of 7149$. Santa Cruz V10 X01 MX / Carbon CC 2023 on the other hand is the most expensive at 9149$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7149$. In conclusion, this bike price is 110.82% more expensive than the price of the average Downhill bike.
Downhill bikes average weight
The average weight for Downhill bikes is 15.95 kg (35.16 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
V10 S 27.5 / Carbon CC weighs 16.2 kg (35.71 lbs) and is slightly heavier than the average. In other words, this model is 1.57% heavier than the average Downhill bike.
Overview of components
Fork
This bike has the Fox Performance Float 40 fork installed. The fork’s travel is 203mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Santa Cruz V10 S 27.5 / Carbon CC bike has the FOX DHX2 Performance Elite Coil model installed, and has a travel of 215mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Santa Cruz V10 S 27.5 / Carbon CC 2023, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Santa Cruz V10 S 27.5 / Carbon CC bike has 12 sizes, in the range of 152 cm – 196 cm (4.99 ft – 6.43 ft). In short, you can easily find one that suits you.
