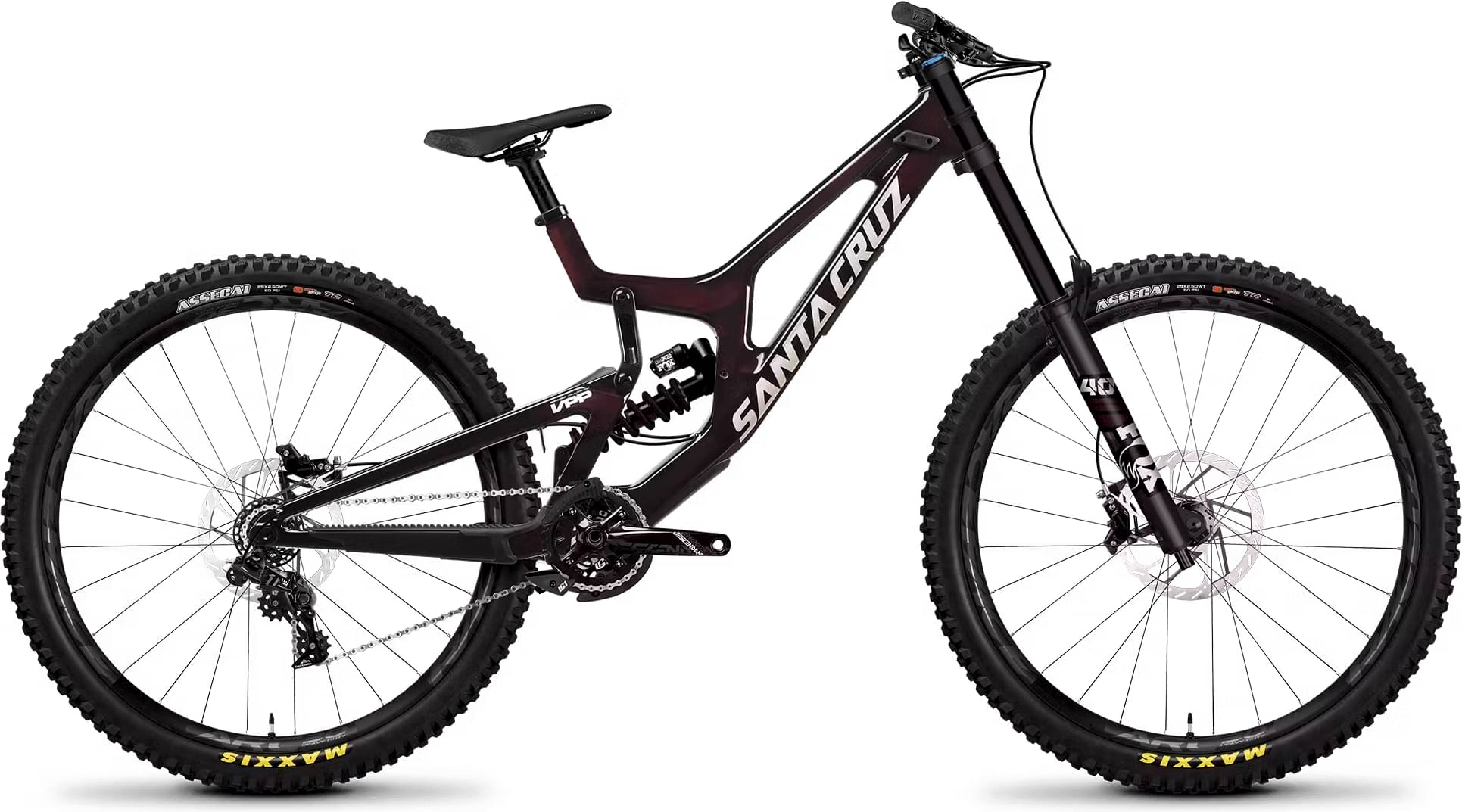

Santa Cruz V10 S 29 / Carbon CC 2024
2024 Mountain
Weight | 17.07 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 215mm -
Fork Fox Performance Float 40
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
152cm - 169cm
SM High
152cm - 169cm
MD Low
167cm - 178cm
MD Low
167cm - 178cm
MD High
167cm - 178cm
MD High
167cm - 178cm
LG Low
175cm - 186cm
LG Low
175cm - 186cm
LG High
175cm - 186cm
LG High
175cm - 186cm
XL Low
184cm - 196cm
XL High
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
V10 S 29 / Carbon CC
Suspension Fork
FOX 40 Performance, 203mm
Rear Shock
FOX DHX2 Performance Elite Coil
Drivetrain
Rear Derailleur
SRAM GX DH, 7spd
Shift Levers
SRAM GX, 7spd
Cassette
SRAM PG720 DH, 11-25t
Crank
SRAM Descendant DH, 165mm, 34t
Bottom Bracket
SRAM DUB 83mm Threaded BB
Chain
SRAM PC1110, 11spd
Chain Guide
E13 Vario DH Guide
Wheels
Front Hub
DT Swiss 350, 20x110, Boost, 32h
Rear Hub
DT Swiss 350 ISO, 12x157, HG, 32h
Rims
Front: RaceFace ARC HD 30 29" Rims, Rear: RaceFace ARC HD 30 29" Rims
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Rear: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Santa Cruz Direct Mount 35x45/50
Handlebar
Burgtec RideWide DH Alloy Bar
Grips
Burgtec Bartender Pro Grip Minnar
Headset
Cane Creek 40 ZS49/EC49 Headset
Seat
Saddle
Fizik Alpaca Gravita X5 Saddle
Seatpost
RaceFace Chester, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM High | MD Low | MD Low | MD High | MD High | LG Low | LG Low | LG High | LG High | XL Low | XL High |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.45 mm | 1.45 mm | 1.45 mm | 1.45 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 351 mm | 356 mm | 351 mm | 351 mm | 356 mm | 356 mm | 351 mm | 351 mm | 356 mm | 356 mm | 351 mm | 356 mm |
| Front Center | 769 mm | 769 mm | 806 mm | 806 mm | 806 mm | 806 mm | 833 mm | 833 mm | 833 mm | 833 mm | 865 mm | 865 mm |
| Rake | 52 mm | 52 mm | 59 mm | 58 mm | 58 mm | 58 mm | 59 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Trail | 121 mm | 118 mm | 122 mm | 114 mm | 120 mm | 111 mm | 122 mm | 114 mm | 120 mm | 111 mm | 123 mm | 120 mm |
| Stack | 603 mm | 604 mm | 632 mm | 632 mm | 633 mm | 633 mm | 636 mm | 636 mm | 638 mm | 638 mm | 641 mm | 642 mm |
| Reach | 411 mm | 413 mm | 436 mm | 436 mm | 438 mm | 438 mm | 461 mm | 461 mm | 463 mm | 463 mm | 491 mm | 493 mm |
| Seat Tube Length | 435 mm | 435 mm | 445 mm | 445 mm | 445 mm | 445 mm | 455 mm | 455 mm | 455 mm | 455 mm | 465 mm | 465 mm |
| Head Tube Angle | 63.3 ° | 63.7 ° | 63.3 ° | 63.3 ° | 63.7 ° | 63.7 ° | 63.3 ° | 63.3 ° | 63.7 ° | 63.7 ° | 63.3 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 105 mm | 105 mm | 110 mm | 110 mm |
| Chainstay Length | 431 mm | 431 mm | 446 mm | 447 mm | 446 mm | 446 mm | 446 mm | 447 mm | 446 mm | 446 mm | 451 mm | 451 mm |
| Wheelbase | 1201 mm | 1200 mm | 1253 mm | 1253 mm | 1252 mm | 1252 mm | 1280 mm | 1280 mm | 1279 mm | 1279 mm | 1317 mm | 1316 mm |
| Bottom Bracket Drop | 3 mm | -2 mm | 21 mm | 21 mm | 16 mm | 16 mm | 21 mm | 21 mm | 16 mm | 16 mm | 21 mm | 16 mm |
| Standover Height | 708 mm | 713 mm | 714 mm | 714 mm | 719 mm | 719 mm | 715 mm | 715 mm | 720 mm | 720 mm | 715 mm | 720 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 152 cm | 152 cm | 167 cm | 167 cm | 167 cm | 167 cm | 175 cm | 175 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 169 cm | 169 cm | 178 cm | 178 cm | 178 cm | 178 cm | 186 cm | 186 cm | 186 cm | 186 cm | 196 cm | 196 cm |
About this model
V10 S 29 / Carbon CC belongs to the Santacruz V10 model. 36 bikes variations carry this model name so far. Take a sneak peek at all Santacruz V10 bikes models from 2024, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Downhill bikes average weight
On a deeper look, we notice that the average weight of a Downhill bike is 15.95 kg (35.16 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, V10 S 29 / Carbon CC has a weight of 17.07 kg (37.63 lbs). In conclusion, the average Downhill bike weighs 7.02% less than V10 S 29 / Carbon CC.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 40 model. The travel on this model is 203mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Santa Cruz V10 S 29 / Carbon CC bike has the FOX DHX2 Performance Elite Coil model installed, and has a travel of 215mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Santa Cruz V10 S 29 / Carbon CC 2024, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The V10 S 29 / Carbon CC comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
V10 S 29 / Carbon CC comes in 12 sizes, that range from 152 cm – 196 cm (4.99 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
