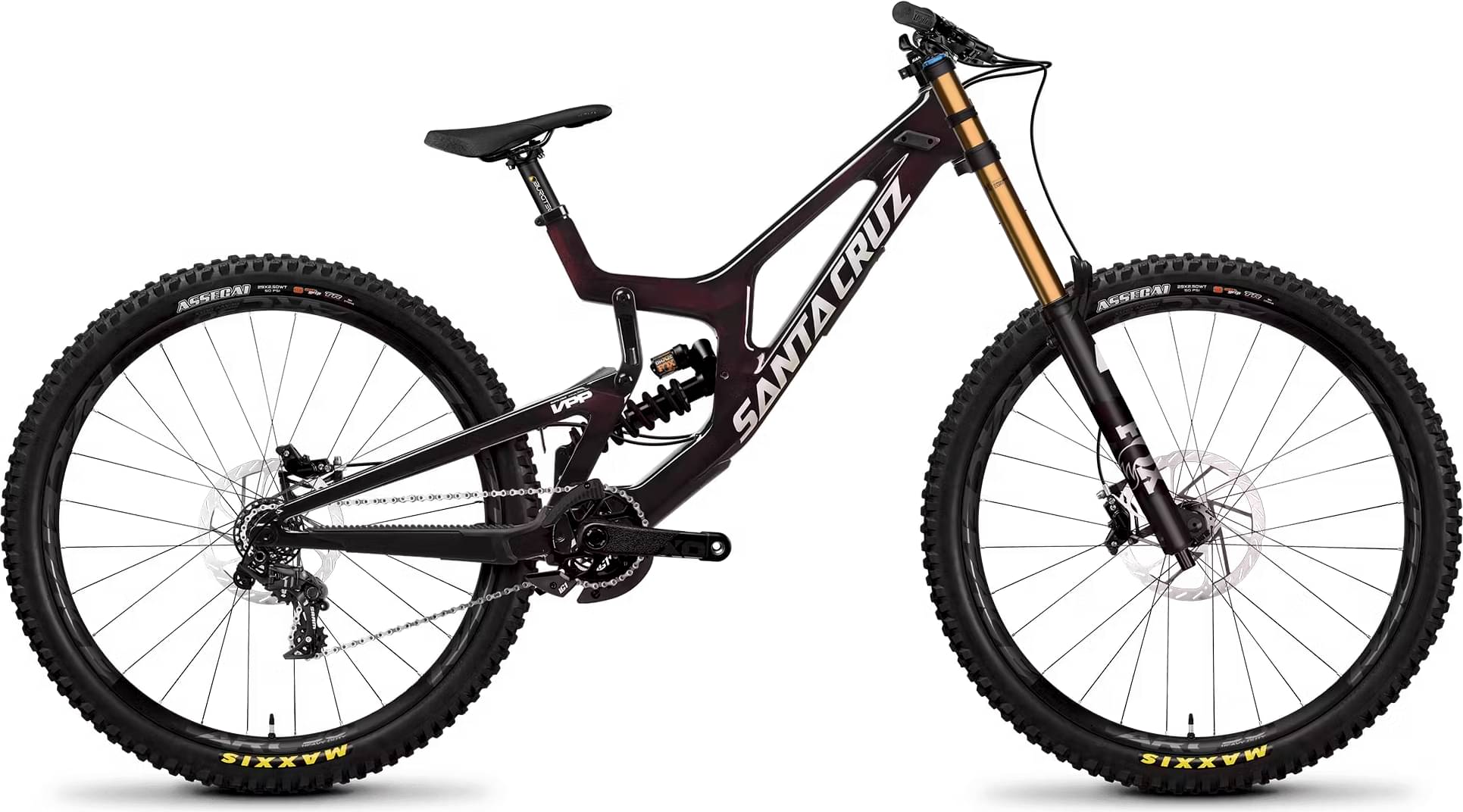

Santa Cruz V10 X01 29 / Carbon CC 2024
2024 Mountain
Weight | 16.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 215mm -
Fork Fox Factory Float 40
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
152cm - 169cm
SM High
152cm - 169cm
MD Low
167cm - 178cm
MD Low
167cm - 178cm
MD High
167cm - 178cm
MD High
167cm - 178cm
LG Low
175cm - 186cm
LG Low
175cm - 186cm
LG High
175cm - 186cm
LG High
175cm - 186cm
XL Low
184cm - 196cm
XL High
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
V10 X01 29 / Carbon CC
Suspension Fork
FOX 40 Factory, 203mm
Rear Shock
FOX DHX2 Factory Coil- 450 (S), 500 (M), 550 (L), 600 (XL)
Drivetrain
Rear Derailleur
SRAM X01 DH, 7spd
Shift Levers
SRAM X01 DH
Cassette
SRAM X01 DH, 7spd
Crank
SRAM X01 DH, DUB 83, 165mm, 34t
Bottom Bracket
SRAM DUB 83mm Threaded BB
Chain
SRAM PC1170, 11spd
Chain Guide
E13 Vario DH Guide
Wheels
Front Hub
DT Swiss 350, 20x110, Boost, 32h
Rear Hub
DT Swiss 350 ISO, 12x157, XD, 32h
Rims
Front: RaceFace ARC HD 30 29" Rims, Rear: RaceFace ARC HD 30 29" Rims
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Rear: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Santa Cruz Direct Mount 35x45/50
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Burgtec Bartender Pro Grip Minnar
Headset
Cane Creek 40 ZS49/EC49 Headset
Seat
Saddle
Fizik Alpaca Gravita X5 Saddle
Seatpost
Burgtec Xpress Carbon Post, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM High | MD Low | MD Low | MD High | MD High | LG Low | LG Low | LG High | LG High | XL Low | XL High |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.45 mm | 1.45 mm | 1.45 mm | 1.45 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 351 mm | 356 mm | 351 mm | 351 mm | 356 mm | 356 mm | 351 mm | 351 mm | 356 mm | 356 mm | 351 mm | 356 mm |
| Front Center | 769 mm | 769 mm | 806 mm | 806 mm | 806 mm | 806 mm | 833 mm | 833 mm | 833 mm | 833 mm | 865 mm | 865 mm |
| Rake | 52 mm | 52 mm | 59 mm | 58 mm | 58 mm | 58 mm | 59 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Trail | 121 mm | 118 mm | 122 mm | 114 mm | 120 mm | 111 mm | 122 mm | 114 mm | 120 mm | 111 mm | 123 mm | 120 mm |
| Stack | 603 mm | 604 mm | 632 mm | 632 mm | 633 mm | 633 mm | 636 mm | 636 mm | 638 mm | 638 mm | 641 mm | 642 mm |
| Reach | 411 mm | 413 mm | 436 mm | 436 mm | 438 mm | 438 mm | 461 mm | 461 mm | 463 mm | 463 mm | 491 mm | 493 mm |
| Seat Tube Length | 435 mm | 435 mm | 445 mm | 445 mm | 445 mm | 445 mm | 455 mm | 455 mm | 455 mm | 455 mm | 465 mm | 465 mm |
| Head Tube Angle | 63.3 ° | 63.7 ° | 63.3 ° | 63.3 ° | 63.7 ° | 63.7 ° | 63.3 ° | 63.3 ° | 63.7 ° | 63.7 ° | 63.3 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 105 mm | 105 mm | 110 mm | 110 mm |
| Chainstay Length | 431 mm | 431 mm | 446 mm | 447 mm | 446 mm | 446 mm | 446 mm | 447 mm | 446 mm | 446 mm | 451 mm | 451 mm |
| Wheelbase | 1201 mm | 1200 mm | 1253 mm | 1253 mm | 1252 mm | 1252 mm | 1280 mm | 1280 mm | 1279 mm | 1279 mm | 1317 mm | 1316 mm |
| Bottom Bracket Drop | 3 mm | -2 mm | 21 mm | 21 mm | 16 mm | 16 mm | 21 mm | 21 mm | 16 mm | 16 mm | 21 mm | 16 mm |
| Standover Height | 708 mm | 713 mm | 714 mm | 714 mm | 719 mm | 719 mm | 715 mm | 715 mm | 720 mm | 720 mm | 715 mm | 720 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 152 cm | 152 cm | 167 cm | 167 cm | 167 cm | 167 cm | 175 cm | 175 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 169 cm | 169 cm | 178 cm | 178 cm | 178 cm | 178 cm | 186 cm | 186 cm | 186 cm | 186 cm | 196 cm | 196 cm |
Model Overview
V10 X01 29 / Carbon CC is part of the Santacruz V10 model. 36 bikes variations carry this model name so far. Take a sneak peek at all Santacruz V10 bikes models from 2024, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Downhill bikes average weight
If we make a quick analysis of the average weight of a Downhill bike, we get 15.95 kg (35.16 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
V10 X01 29 / Carbon CC weighs 16.38 kg (36.11 lbs) and is slightly heavier than the average. To sum up, it’s 2.7% heavier than the average weight of Downhill bikes.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 40 model. The travel on this model is 203mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX DHX2 Factory Coil- 450 (S), with a travel distance of 215mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on V10 X01 29 / Carbon CC are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The V10 X01 29 / Carbon CC has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 12 sizes available for this model. Rider height can be anywhere between 152 cm – 196 cm (4.99 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
