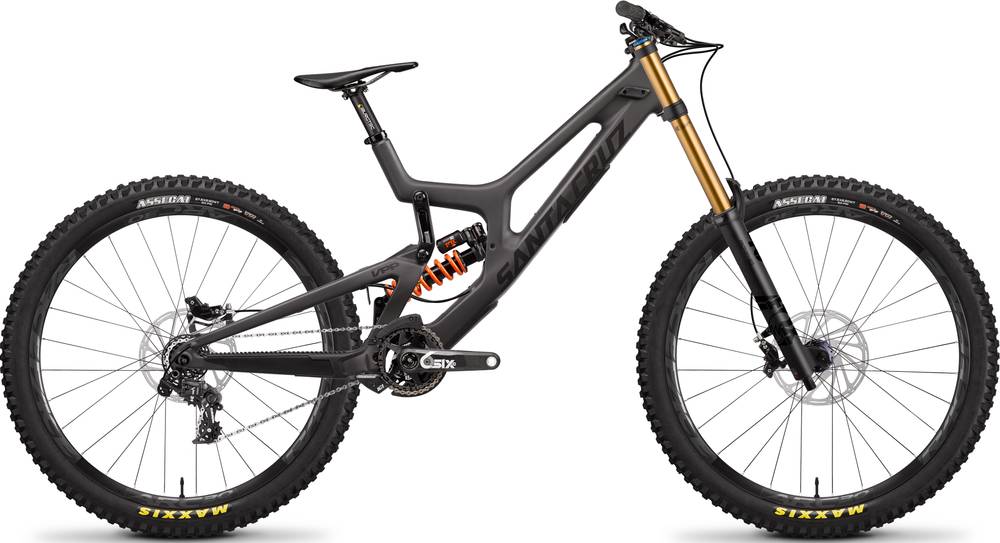

Santa Cruz V10 X01 / Carbon CC / 27.5 2019
2019 Mountain
Estimate price |
8,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 215mm -
Fork Fox Factory Float 40
-
Groupset X01, Race Face -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
154cm - 167cm
SM High
154cm - 167cm
MD Low
170cm - 177cm
MD High
170cm - 177cm
LG Low
175cm - 185cm
LG High
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
V10 X01 / Carbon CC / 27.5
Suspension Fork
FOX 40 Factory, 203mm, 27.5"
Rear Shock
FOX DHX2 Factory SLS Coil 400 (S) 450 (M) 500 (L)
Drivetrain
Rear Derailleur
SRAM X01 DH 7sp
Shift Levers
SRAM X01 DH
Cassette
SRAM X01 DH Cassette 7 Spd
Crank
Race Face SIXC Crank 83/165mm, 36t
Bottom Bracket
Race Face BSA 83mm BB
Chain
SRAM XX1
Chain Guide
E13 LG1+
Wheels
Front Hub
DT 350 20x110 32H
Rear Hub
DT 350 12x157 XD 32H
Rims
Race Face ARC HD 30 27.5" Rims
Spokes
DT Competition (32)
Tires
Front: Maxxis Assegai 27.5x2.5 MaxxGRIP 3C, Rear: Maxxis Assegai 27.5x2.5 MaxxGRIP 3C
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline, 203mm Front, 200mm Rear
Cockpit
Stem
Santa Cruz Direct Mount 35x45/50
Handlebar
Santa Cruz Bicycles AM Carbon Bar 35x800
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 Hellbender, ZS49 upper/ EC49 lower
Seat
Saddle
Ergon SMD2 Pro Ti
Seatpost
Burgtec Xpress Carbon Post, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM High | MD Low | MD High | LG Low | LG High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.4 mm | 1.4 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 351 mm | 356 mm | 351 mm | 356 mm | 351 mm | 356 mm |
| Front Center | 769 mm | 769 mm | 798 mm | 798 mm | 825 mm | 825 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 121 mm | 118 mm | 121 mm | 118 mm | 121 mm | 118 mm |
| Stack | 603 mm | 604 mm | 611 mm | 613 mm | 616 mm | 617 mm |
| Reach | 411 mm | 413 mm | 436 mm | 438 mm | 461 mm | 463 mm |
| Seat Tube Length | 435 mm | 435 mm | 445 mm | 445 mm | 455 mm | 455 mm |
| Head Tube Angle | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 115 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 436 mm | 436 mm | 441 mm | 441 mm |
| Wheelbase | 1201 mm | 1200 mm | 1235 mm | 1234 mm | 1267 mm | 1266 mm |
| Bottom Bracket Drop | 3 mm | -2 mm | 3 mm | -2 mm | 3 mm | -2 mm |
| Standover Height | 708 mm | 713 mm | 708 mm | 713 mm | 708 mm | 713 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 154 cm | 170 cm | 170 cm | 175 cm | 175 cm |
| Rider Max Height | 167 cm | 167 cm | 177 cm | 177 cm | 185 cm | 185 cm |
About this model
V10 X01 / Carbon CC / 27.5 is part of the Santacruz V10 model. Santa Cruz launched 36 bikes of this model so far. Take a sneak peek at all Santacruz V10 bikes models from 2019, by clicking here.
Model range prices
Santa Cruz V10 S / Carbon CC / 29 2019 is the most economical model, with a starting price of 5999$. Santa Cruz V10 X01 / Carbon CC / 27.5 2019 on the other hand costs 8299$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill bikes
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2019 and its price was 8299$. In conclusion, this bike price is 144.74% more expensive than the price of the average Downhill bike.
V10 X01 / Carbon CC / 27.5 components
Fork
Santa Cruz V10 X01 / Carbon CC / 27.5 2019 bike is equipped with the Fox Factory Float 40 fork, and has 203mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The V10 X01 / Carbon CC / 27.5 has a rear shock with a travel of 215mm. The model FOX DHX2 Factory SLS Coil 400 (S) 450 (M) 500 (L) is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the V10 X01 / Carbon CC / 27.5 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Santa Cruz V10 X01 / Carbon CC / 27.5 bike has 6 sizes, in the range of 154 cm – 185 cm (5.05 ft – 6.07 ft). In short, it won’t be difficult to find the right one for you.
