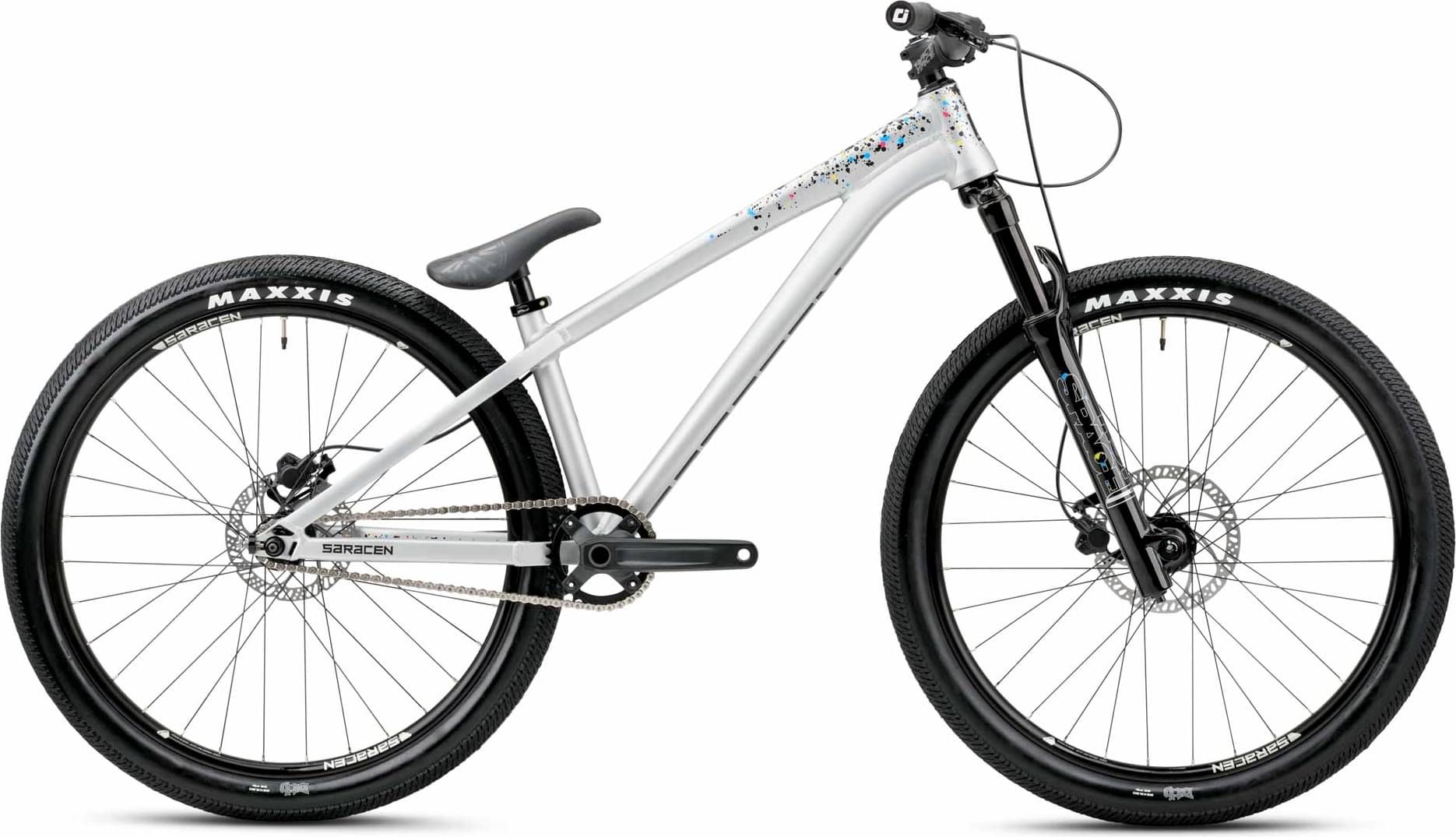

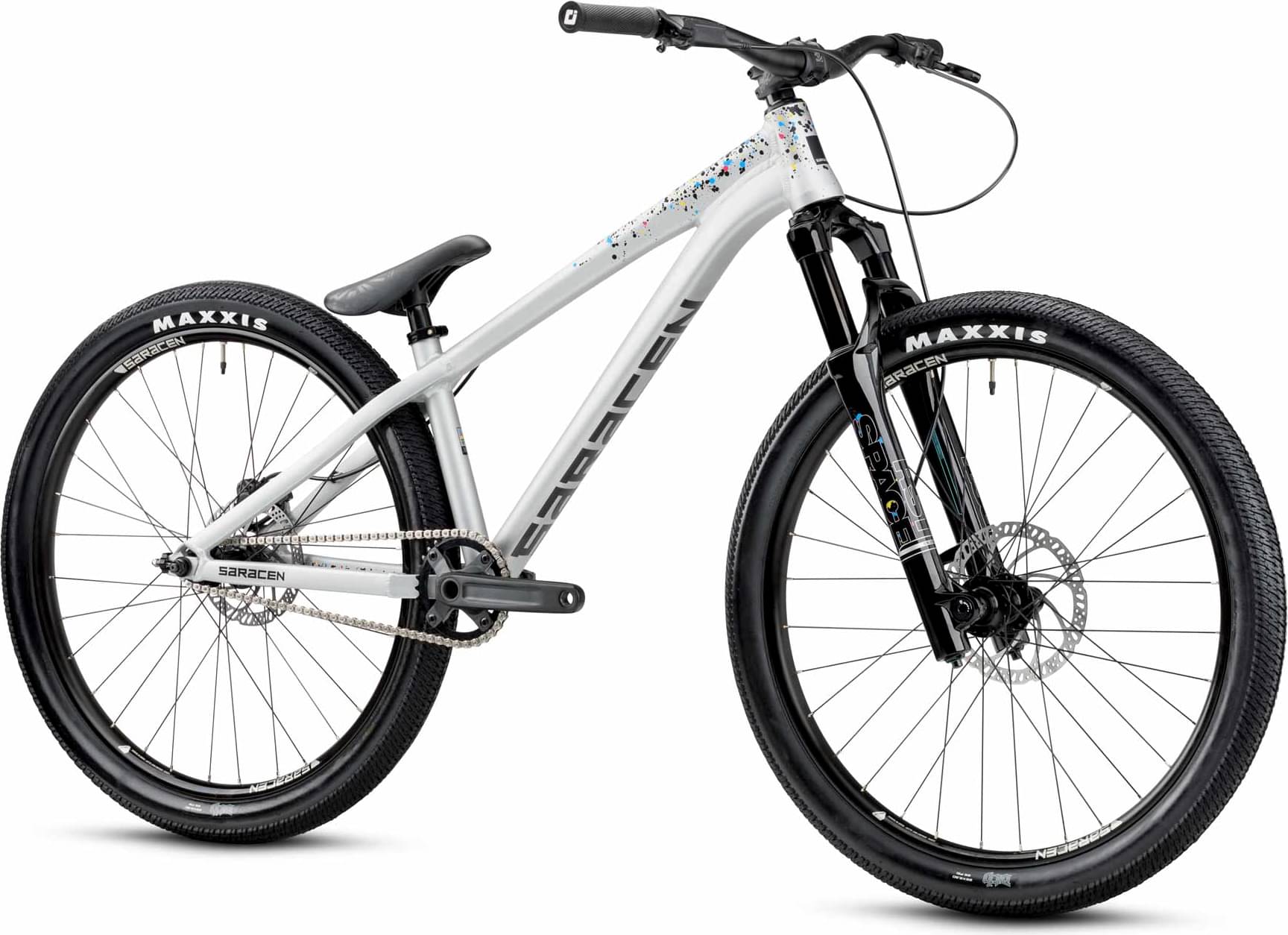

Saracen Amplitude AL Team 2023
2023 Mountain
Estimate price |
1,286$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RST SPACE
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
154cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY TUBESET. Headtube: ZS44-ZS56 tapered headtube. Dropout Design: singlespeed specific.
Suspension Fork
RST SPACE JUMP AIR. Travel: 100mm. Technology: Rebound adjust. Axle: 20mm thru-axle.
Drivetrain
Cassette
STEEL 12T. Speed: singlespeed.
Crank
SAMOX ALLOY 2-PC. Chain Ring: 32T. Crank Length: 170mm.
Bottom Bracket
SAMOX SEALED CARTRIDGE.
Chain
KMC HL1.
Wheels
Front Hub
FORMULA. Front: Formula DHL-92. Rear: Formula DC-52N. Brake Fitting: 6-bolt. Front Axle Type: 20 x 110. Rear Axle Type: 10 x 135 Nutted axle. Hole: 32H.
Rear Hub
FORMULA. Front: Formula DHL-92. Rear: Formula DC-52N. Brake Fitting: 6-bolt. Front Axle Type: 20 x 110. Rear Axle Type: 10 x 135 Nutted axle. Hole: 32H.
Rims
JALCO DD32. Hole: 32H. Size: 26''. Tubeless Ready: No.
Spokes
STEEL 14G.
Tires
MAXXIS. Model: DTH wire bead. Size: 26 x 2.3.
Brakes
Brakes
TEKTRO. Model: HD-M275. Brake Type: Hydraulic two piston. Rotor Size: 160/160mm.
Brake Levers
TEKTRO HD-M275.
Cockpit
Stem
RACEFACE CHESTER. Length: 35mm. Rise: 0 degree. Clamp: 35mm. Type: Ahead.
Handlebar
RACEFACE CHESTER. Width: 780mm. Rise: 35mm. Bar Bore: 35mm.
Grips
ODI ELITE MOTION.
Headset
FSA NO.9M.
Seat
Saddle
SARACEN CUSTOM INTEGRATED.
Seatpost
SARACEN. Type: Integrated with saddle. Size: 27.2mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.55 mm |
| Bottom Bracket Height | 328 mm |
| Front Center | 650 |
| Rake | 6 mm |
| Trail | 132 mm |
| Stack | 613 mm |
| Reach | 395 mm |
| Top Tube Length | 575 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 310 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 115 mm |
| Chainstay Length | 385 mm |
| Wheelbase | 1035 mm |
| Bottom Bracket Drop | 15 mm |
| Wheels | 26" |
| Rider Min Height | 154 cm |
| Rider Max Height | 184 cm |
About this model
Amplitude AL Team is a Saracen Amplitude model. There are 11 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Saracen Amplitude CR2 – blue 2023 is the most economical model, with a starting price of 729$. Saracen Amplitude AL Team 2023 on the other hand costs 1156$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Dirt Jump bikes
If you want an acceptable Dirt Jump bike you should know that the average price is 863$. However, even if your budget is less than the average, you might still be able to get a top-quality Dirt Jump bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1156$. Comparing the average cost of a Dirt Jump bike to this one, you will see that Amplitude AL Team price is 33.95% more expensive.
Overview of components
Fork
This bike has the RST SPACE fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Amplitude AL Team 2023 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Amplitude AL Team comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike has one size only, so it might not fit you. In conclusion, double-check its size to make sure it’s a good fit for you.
