Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Marzocchi Bomber Z1
-
Groupset SLX, Deore -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS 8035, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Marzocchi Bomber Z1, GRIP damper, Sweep Adjust, rebound adjust, 44mm offset
Rear Shock
FOX FLOAT DPX2 Performance Elite, EVOL, 3-position lever, rebound adjust, 230mm x 65mm
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
None
Shift Levers
Shimano Deore M6100, 12-speed, RAPIDFIRE PLUS
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT E8000, 165mm length
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC E12, 12-speed
Chain Guide
Shimano CDE80 upper slider
Pedals
None
Wheels
Front Hub
KT, sealed bearings, DHLF1L2 110x15mm Boost front, DCR2S5 157x12mm SuperBoost rear with MICRO SPLINE driver
Rear Hub
KT, sealed bearings, DHLF1L2 110x15mm Boost front, DCR2S5 157x12mm SuperBoost rear with MICRO SPLINE driver
Rims
DT Swiss H552, 30mm internal width, 32 hole, tubeless ready
Spokes
Double-butted stainless steel
Tires
Front: Maxxis Minion DHR II, EXO, TR, 29" x 2.4", Rear: Maxxis Minion DHR II, EXO, TR, 27.5" x 2.3" (SM/MD) or 29" x 2.4" (LG/XL)
Brakes
Brakes
Shimano Deore M6100, 2-piston, 203mm CENTER LOCK rotors
Brake Levers
Shimano Deore M6100
Cockpit
Stem
Race Face Chester, 40mm length, 0° rise, 35mm bar clamp
Handlebar
Race Face Chester, 780mm width, 35mm rise, 35mm clamp diameter
Grips
ODI Elite Motion
Headset
Prestine PT-F13, ZS44 upper, ZS56 lower
Seat
Saddle
Saracen Custom MTB, CrMo rails
Seatpost
KS Rage-i dropper, Westy remote lever, Drop: 125mm (SM), 150mm (MD/LG/XL)
Motor & Battery
Motor
Shimano STEPS E-7000, 60Nm max torque, 250W
Battery
Shimano STEPS 8035, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.31 mm | 1.27 mm | 1.25 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 636 mm | 636 mm | 645 mm | 659 mm |
| Reach | 459 mm | 484 mm | 509 mm | 529 mm |
| Top Tube Length | 616 mm | 641 mm | 669 mm | 692 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 115 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm | 469 mm |
| Wheelbase | 1254 mm | 1279 mm | 1308 mm | 1334 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Standover Height | 798 mm | 798 mm | 797 mm | 797 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

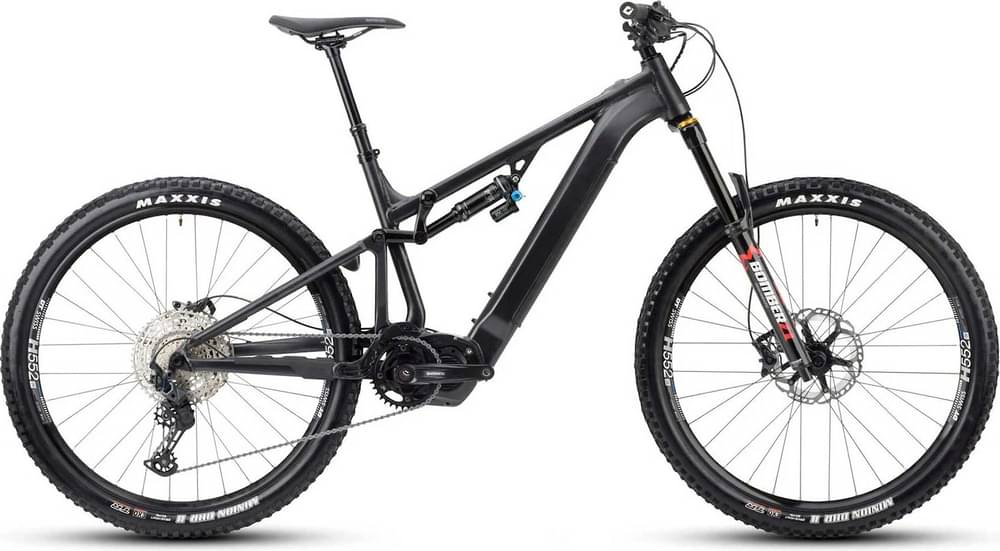

Ariel 50E is part of the Saracen E Ariel model. 4 e-bikes variations carry this model name so far. You can easily view all of the Saracen E Ariel e-bikes models from 2021, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Enduro e-bikes
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 24.2 kg (53.35 lbs), the Ariel 50E model is slightly heavier than average. In other words, this model is 3.33% heavier than the average Enduro e-bike.
Ariel 50E components
Fork
This e-bike has the Marzocchi Bomber Z1 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the FOX FLOAT DPX2 Performance Elite model, with a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Ariel 50E e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ariel 50E comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Saracen Ariel 50E e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Saracen model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
