Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery Shimano STEPS 8035, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38-E Factory, GRIP2 damper, high/low-speed compression adjust, high/low-speed rebound adjust, 44mm offset
Rear Shock
FOX DHX2 Factory, 2-position lever, high/low-speed compression adjust, high/low-speed rebound adjust, SLS spring, 230mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed, RAPIDFIRE PLUS
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT M8150, 165mm length
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC E12, 12-speed
Chain Guide
Shimano CDE80 upper slider
Pedals
None
Wheels
Front Hub
Shimano Deore XT, M8110 110x15mm Boost front, M8130 157x12mm SuperBoost rear with MICRO SPLINE driver
Rear Hub
Shimano Deore XT, M8110 110x15mm Boost front, M8130 157x12mm SuperBoost rear with MICRO SPLINE driver
Rims
DT Swiss HX 531, 30mm internal width, 32 hole, tubeless ready
Spokes
Double-butted stainless steel
Tires
Front: Maxxis Minion DHR II, EXO, TR, 29" x 2.4", Rear: Maxxis Minion DHR II, EXO, TR, 27.5" x 2.3" (SM/MD) or 29" x 2.4" (LG/XL)
Brakes
Brakes
Shimano Deore XT M8120, 4-piston, 203mm CENTER LOCK rotors
Brake Levers
Shimano Deore XT M8120
Cockpit
Stem
Race Face Turbine R, 40mm length, 0° rise, 35mm bar clamp
Handlebar
Race Face Next R Carbon, 780mm width, 35mm rise, 35mm clamp diameter
Grips
ODI Elite Motion
Headset
Prestine PT-F13, ZS44 upper, ZS56 lower
Seat
Saddle
Saracen Custom MTB, CrMo rails
Seatpost
KS LEV Integra dropper, Southpaw remote lever, Drop: 125mm (SM), 150mm (MD/LG/XL)
Motor & Battery
Motor
Shimano STEPS EP-800, 85Nm max torque
Battery
Shimano STEPS 8035, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.31 mm | 1.27 mm | 1.25 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 636 mm | 636 mm | 645 mm | 659 mm |
| Reach | 459 mm | 484 mm | 509 mm | 529 mm |
| Top Tube Length | 616 mm | 641 mm | 669 mm | 692 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 115 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm | 469 mm |
| Wheelbase | 1254 mm | 1279 mm | 1308 mm | 1334 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Standover Height | 798 mm | 798 mm | 797 mm | 797 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

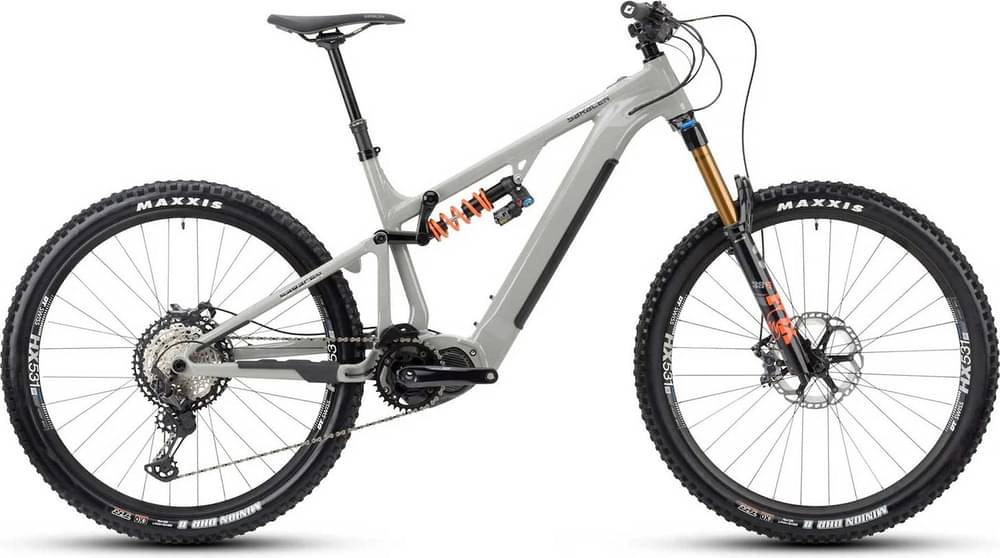

Ariel 50E Elite belongs to the Saracen E Ariel model. There are 4 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Saracen Ariel 50E Elite it’s weighing 23.9 kg (52.69 lbs). At this weight, is slightly heavier than average. In short, the average Enduro e-bike weight is 2.05% lower than this one.
Overview of components
Fork
The Ariel 50E Elite comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the FOX DHX2 Factory model, with a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Ariel 50E Elite model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ariel 50E Elite has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Ariel 50E Elite. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
