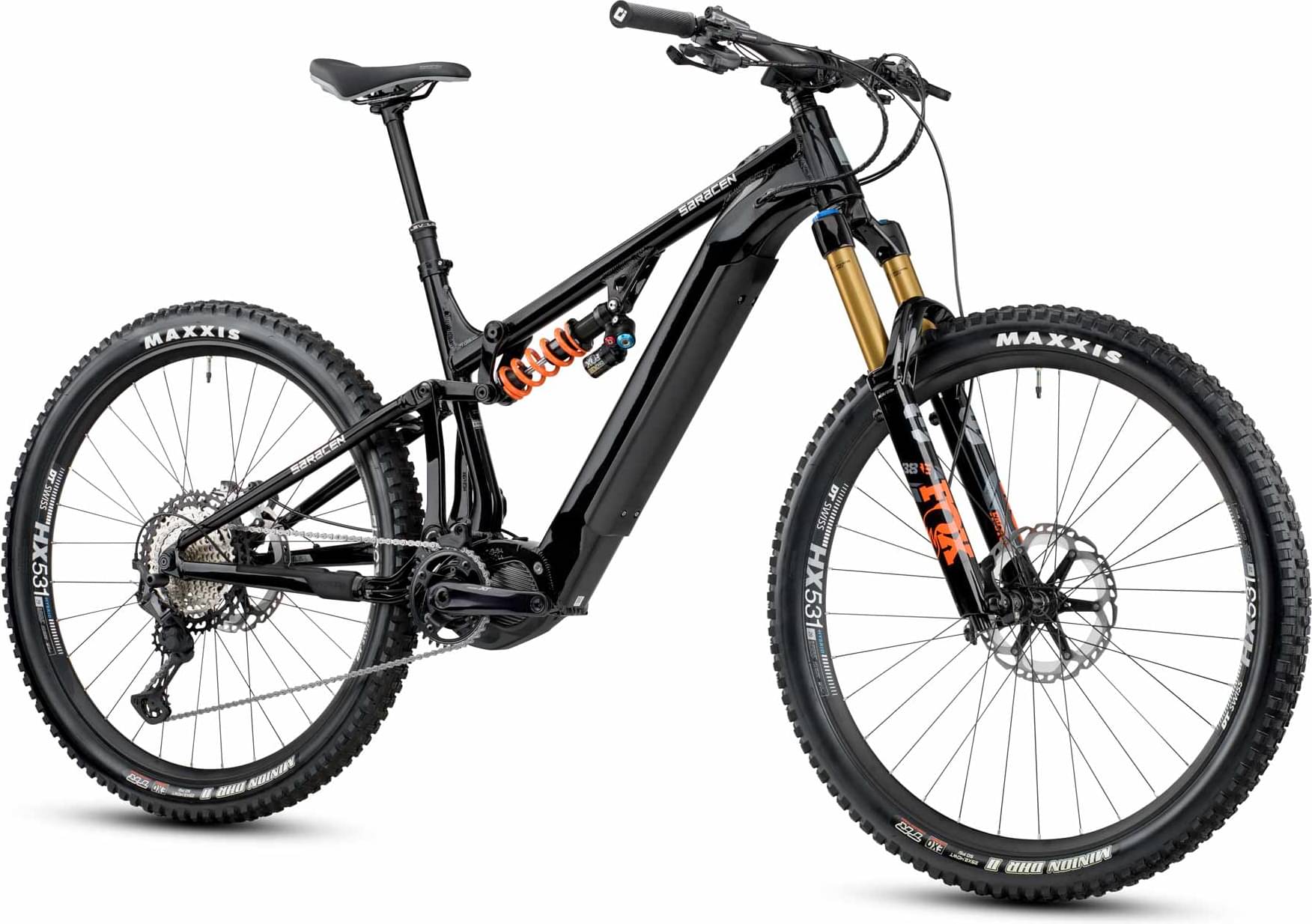

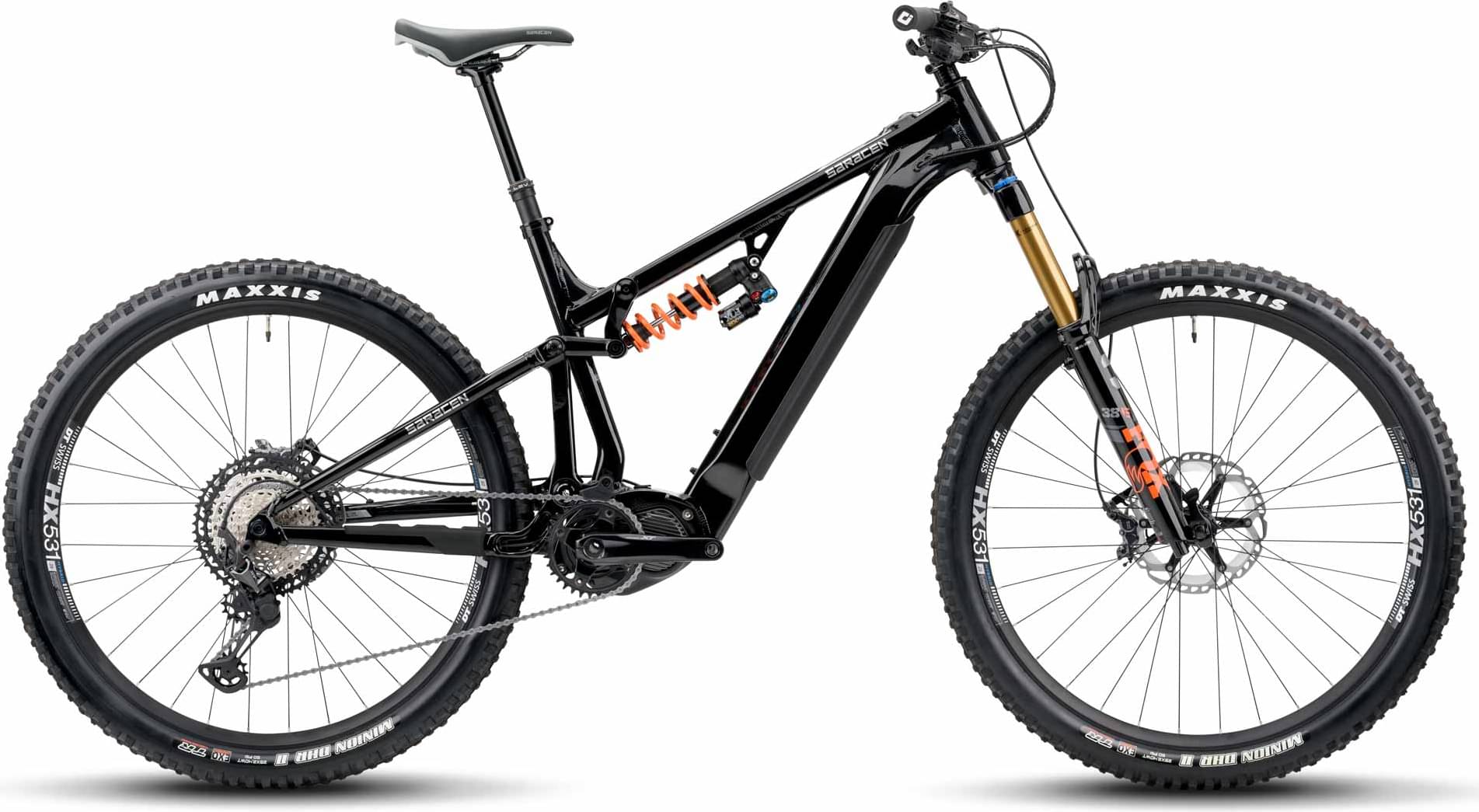

Saracen Ariel 50E Elite 2023
2023 E-bike
Estimate price |
9,483$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON. Model: fully integrated. Power: 720Wh. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 172cm
MD
170cm - 180cm
LG
178cm - 188cm
XL
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY FRONT TRIANGLE AND SWINGARM. Design: Integrated battery and motor mount / Integrated charger port. Headtube: ZS44-ZS56 tapered headtube. Bearings: 37mm main pivot bearings / 28mm linkage bearings. Linkage: Convertible CNC linkage included for both mullet and 29er setups. Suspension: Signature TRL suspension design. Cable Routing: Internal. Axle: 12 x 157mm SuperBoost dropout system. Rear Travel: 150mm.
Suspension Fork
FOX 38-E FACTORY. Travel: 160mm. Technology: Tapered steerer / HSC LSC HSR LSR adjust / Grip2 damper. Axle: 15x110 Boost. : 44mm.
Rear Shock
FOX FLOAT DHX2 FACTORY. Model: HSC LSC HSR LSR adjust / 2 position adjust / SLS Spring, weight by size: Small 400lbs, Medium 425lbs, Large 450lbs, XLarge 475lbs. Adjustment: 230 x 65.
Drivetrain
Rear Derailleur
SHIMANO XT. Model: M8100 SGS Shadow Plus. Speed: 12 speed.
Shift Levers
SHIMANO XT. Model: M8100 Rapidfire Plus 2-way release. Speed: 1x12 speed.
Cassette
SHIMANO DEORE. Model: M8100. Speed: 12 speed. Ratio: 10-51T.
Crank
SHIMANO XT. Model: FC-M8150. Chain Ring: 34T. Crank Length: 165mm.
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC E12.
Wheels
Front Hub
SHIMANO. Front: SLX HB-M8110 32H. Rear: SLX FH-M8130 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H.
Rear Hub
SHIMANO. Front: SLX HB-M8110 32H. Rear: SLX FH-M8130 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H.
Rims
DT SWISS HX 531. Hole: 32H. Size: 29'' Front / 29'' Rear (Sizes Large / XL) 29'' Front / 27.5'' Rear (Sizes Small / Medium). Tubeless Ready: Yes.
Spokes
DOUBLE-BUTTED STAINLESS STEEL.
Tires
MAXXIS MINION DHRII. Model: EXO TR. Size: 29 x 2.4 Front & Rear (Sizes Large / XL) / 29 x 2.4 Front / 27.5 x 2.3 Rear (Sizes Small / Medium).
Brakes
Brakes
SHIMANO XT. Brake Type: BR-M8120. Rotor Size: Hydraulic four piston. : 203/203mm.
Brake Levers
SHIMANO XT.
Cockpit
Stem
RACEFACE TURBINE R 35. Length: 40mm. Clamp: 0 degree. Type: 35mm. : Ahead.
Handlebar
RACEFACE NEXT R CARBON 35. Width: 780mm. Rise: 35mm. Bend: 35mm.
Grips
ODI ELITE MOTION.
Headset
PRESTINE PT-F13.
Seat
Saddle
SARACEN CUSTOM CRMO E-MTB.
Seatpost
KS LEV INTEGRA. Size: Internal. Length: 30.9mm. : 150mm, 125mm on size small. : Southpaw remote.
Motor & Battery
Motor
SHIMANO STEPS. Model: Shimano EP-800. Assistance: Up to 25Km/h.
Battery
DARFON. Model: fully integrated. Power: 720Wh.
Charger
DARFON. Model: UK Charger.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.31 mm | 1.27 mm | 1.25 mm |
| Front Center | 786 mm | 811 mm | 840 mm | 866 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 127 mm | 127 mm | 127 mm | 127 mm |
| Stack | 636 mm | 636 mm | 645 mm | 659 mm |
| Reach | 459 mm | 484 mm | 509 mm | 529 mm |
| Top Tube Length | 616 mm | 641 mm | 669 mm | 692 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 115 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm | 469 mm |
| Wheelbase | 1254 mm | 1279 mm | 1308 mm | 1334 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 798 mm | 798 mm | 797 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 170 cm | 178 cm | 186 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 198 cm |
About this model
Ariel 50E Elite is part of the Saracen E Ariel model. Saracen released 7 e-bikes variations of this model so far. Take a sneak peek at all Saracen E Ariel e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Saracen Ariel 50E 2023 has a starting price of 6088$. Saracen Ariel 50E Elite 2023 on the other hand is the most expensive at 8524$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 8524$. Comparing this to the average Enduro e-bike price, we see that the price is 78.14% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Ariel 50E Elite components
Fork
The Ariel 50E Elite comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Saracen Ariel 50E Elite e-bike has the FOX FLOAT DHX2 FACTORY. Model: HSC model installed, and has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Ariel 50E Elite e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Saracen Ariel 50E Elite has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 198 cm (5.05 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
