Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Factory, GRIP2 damper, high/low-speed compression adjust, high/low-speed rebound adjust, 44mm offset
Rear Shock
FOX DHX2 Factory, 2-position lever, high/low-speed compression adjust, high/low-speed rebound adjust, SLS spring, 230mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed, RAPIDFIRE PLUS
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT M8130, 170mm length
Bottom Bracket
Shimano MT800, 73mm English/BSA threaded
Chain
KMC X12, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano Deore XT, M8110 110x15mm Boost front, M8130 157x12mm SuperBoost rear with MICRO SPLINE driver
Rear Hub
Shimano Deore XT, M8110 110x15mm Boost front, M8130 157x12mm SuperBoost rear with MICRO SPLINE driver
Rims
DT Swiss EX 511, 30mm internal width, 32 hole, tubeless ready
Spokes
Double-butted stainless steel
Tires
Front: Maxxis Minion DHR II, EXO, TR, 29" x 2.4", Rear: Maxxis Minion DHR II, EXO, TR, 27.5" x 2.3" (SM/MD) or 29" x 2.4" (LG/XL)
Brakes
Brakes
Shimano Deore XT M8120, 4-piston, CENTER LOCK rotors (203mm front, 180mm rear)
Brake Levers
Shimano Deore XT M8120
Cockpit
Stem
Race Face Turbine R, 40mm length, 0° rise, 35mm bar clamp
Handlebar
Race Face Next R Carbon, 780mm width, 35mm rise, 35mm clamp diameter
Grips
ODI Elite Motion
Headset
Prestine PT-F13, ZS44 upper, ZS56 lower
Seat
Saddle
Saracen Custom MTB, CrMo rails
Seatpost
KS LEV Integra dropper, Southpaw remote lever, Drop: 125mm (SM), 150mm (MD/LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.26 mm | 1.23 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 612 mm | 617 mm | 630 mm | 644 mm |
| Reach | 449 mm | 474 mm | 499 mm | 524 mm |
| Top Tube Length | 597 mm | 618 mm | 646 mm | 674 mm |
| Seat Tube Angle | 76.4 ° | 76 ° | 75.7 ° | 75.4 ° |
| Seat Tube Length | 360 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 105 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1214 mm | 1241 mm | 1272 mm | 1304 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Standover Height | 729 mm | 729 mm | 730 mm | 730 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

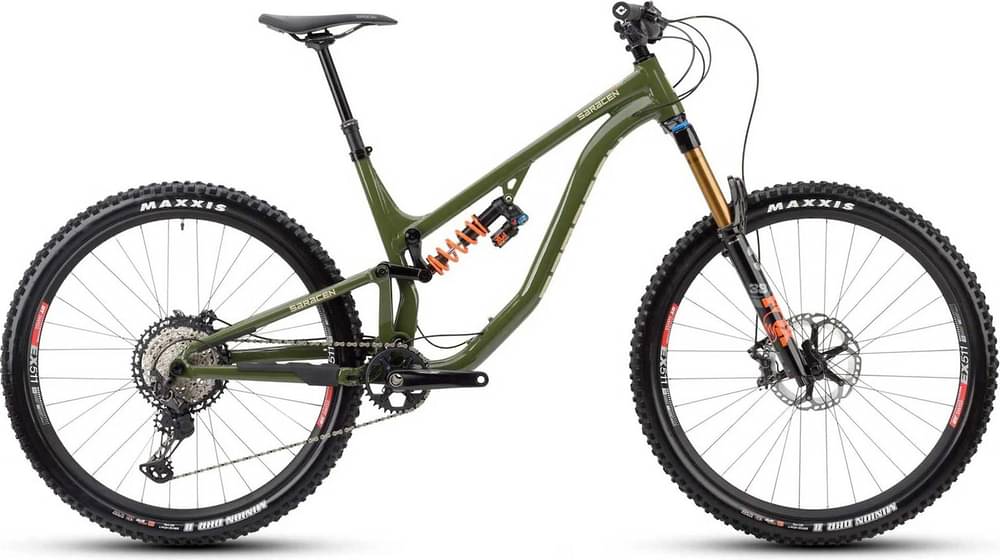

About this model
Ariel 60 Elite completes the Saracen Ariel model. 11 bikes variations carry this model name so far. Take a sneak peek at all Saracen Ariel bikes models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Ariel 60 Elite weighs 15.75 kg (34.72 lbs) and is considerably heavier than the average. In other words, this model is 10.37% heavier than the average Enduro bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX DHX2 Factory model, with a travel of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Ariel 60 Elite 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Saracen Ariel 60 Elite is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
