Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 38
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Performance Elite, GRIP2 damper, high/low-speed compression adjust, high/low-speed rebound adjust, 44mm offset
Rear Shock
FOX FLOAT X2 Performance Elite, 2-position lever, high/low-speed compression adjust, high/low-speed rebound adjust, 230mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed, RAPIDFIRE PLUS
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Crank
Shimano SLX M7130, 170mm length
Bottom Bracket
Shimano MT800, 73mm English/BSA threaded
Chain
KMC X12, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano SLX, M7110 110x15mm Boost front, M7130 157x12mm SuperBoost rear with MICRO SPLINE driver
Rear Hub
Shimano SLX, M7110 110x15mm Boost front, M7130 157x12mm SuperBoost rear with MICRO SPLINE driver
Rims
DT Swiss E532, 30mm internal width, 32 hole, tubeless ready
Spokes
Double-butted stainless steel
Tires
Front: Maxxis Minion DHR II, EXO, TR, 29" x 2.4", Rear: Maxxis Minion DHR II, EXO, TR, 27.5" x 2.3" (SM/MD) or 29" x 2.4" (LG/XL)
Brakes
Brakes
Shimano Deore M6120, 4-piston, CENTER LOCK rotors (203mm front, 180mm rear)
Brake Levers
Shimano Deore M6120
Cockpit
Stem
Race Face Chester, 40mm length, 0° rise, 35mm bar clamp
Handlebar
Race Face Atlas, 820mm width, 35mm rise, 35mm clamp diameter
Grips
ODI Elite Motion
Headset
Prestine PT-F13, ZS44 upper, ZS56 lower
Seat
Saddle
Saracen Custom MTB, CrMo rails
Seatpost
KS Rage-i dropper, Westy remote lever, Drop: 125mm (SM), 150mm (MD/LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.26 mm | 1.23 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 612 mm | 617 mm | 630 mm | 644 mm |
| Reach | 449 mm | 474 mm | 499 mm | 524 mm |
| Top Tube Length | 597 mm | 618 mm | 646 mm | 674 mm |
| Seat Tube Angle | 76.4 ° | 76 ° | 75.7 ° | 75.4 ° |
| Seat Tube Length | 360 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 105 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1214 mm | 1241 mm | 1272 mm | 1304 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Standover Height | 729 mm | 729 mm | 730 mm | 730 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

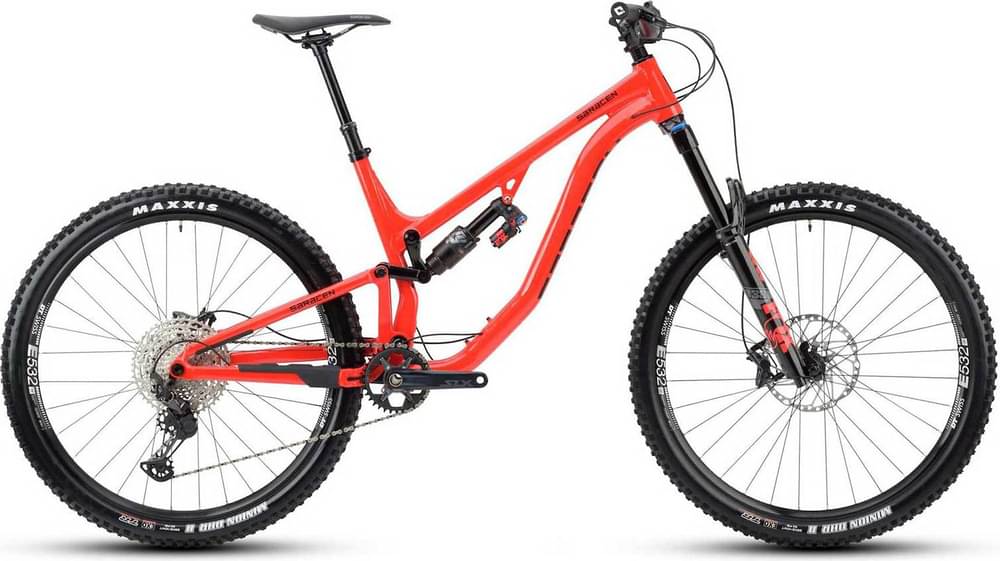

Model Overview
Ariel 60 Pro completes the Saracen Ariel model. There are 11 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Enduro bikes average weight
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Saracen Ariel 60 Pro it’s weighing 16 kg (35.27 lbs). At this weight, is considerably heavier than average. In other words, this model is 12.12% heavier than the average Enduro bike.
Ariel 60 Pro components
Fork
The Fox Performance Elite Float 38 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT X2 Performance Elite, with a travel distance of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Ariel 60 Pro 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Saracen Ariel 60 Pro has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Saracen Ariel 60 Pro comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
