Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox Yari RC
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Yari DebonAir, low speed compression, rebound adjust, 15mm x 110mm Maxle Stealth
Rear Shock
FOX Float DPX2 Performance EVOL, 3-position compression and rebound, 230mm x 60mm
Drivetrain
Rear Derailleur
Shimano XT M8000 Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000 Rapidfire Plus, 11-speed
Cassette
Shimano SLX CS-M7000, 11-46 tooth, 11-speed
Crank
Shimano FC-M7000, 170mm or 175mm
Bottom Bracket
Shimano BB-MT800B
Chain
KMC X11, 11-speed
Chain Guide
MRP 1x V3
Pedals
None included
Wheels
Front Hub
Front: Formula DC-711, 6 bolt, 15mm x 110mm, Rear: Formula DCL-348S, 6 bolt, 12mm x 148mm
Rear Hub
Front: Formula DC-711, 6 bolt, 15mm x 110mm, Rear: Formula DCL-348S, 6 bolt, 12mm x 148mm
Rims
Kore Realm 3.0, UST tubeless compatible, 32 hole
Spokes
DT Swiss double butted
Tires
Maxxis Minnion DHR II, 3C, EXO, TR, 27.5 x 2.3"
Brakes
Brakes
Shimano BR-M501 dual piston caliper hydraulic disc, 180mm rotors
Brake Levers
Shimano M501
Cockpit
Stem
Saracen 6061 CNC Alloy, 31.8mm, 0 degree rise, 45mm length
Handlebar
Saracen OS 6061 double butted alloy, 5 degree up, 9 degree back, 15mm rise, 780mm width
Grips
Saracen Lock-on
Headset
Prestine PT-F13
Seat
Saddle
Kore Fuze II
Seatpost
X-Fusion Manic, internal cable routing, 125mm travel (S), 150mm travel (M, L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 736 mm | 237 mm | 791 mm | 824 mm |
| Rake | 44 mm | -862 mm | 45 mm | 45 mm |
| Trail | 117 mm | 1117 mm | 116 mm | 116 mm |
| Stack | 593 mm | 598 mm | 602 mm | 620 mm |
| Reach | 414 mm | 439 mm | 464 mm | 489 mm |
| Top Tube Length | 578 mm | 612 mm | 637 mm | 667 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 365 mm | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1170 mm | mm | 1225 mm | 1258 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

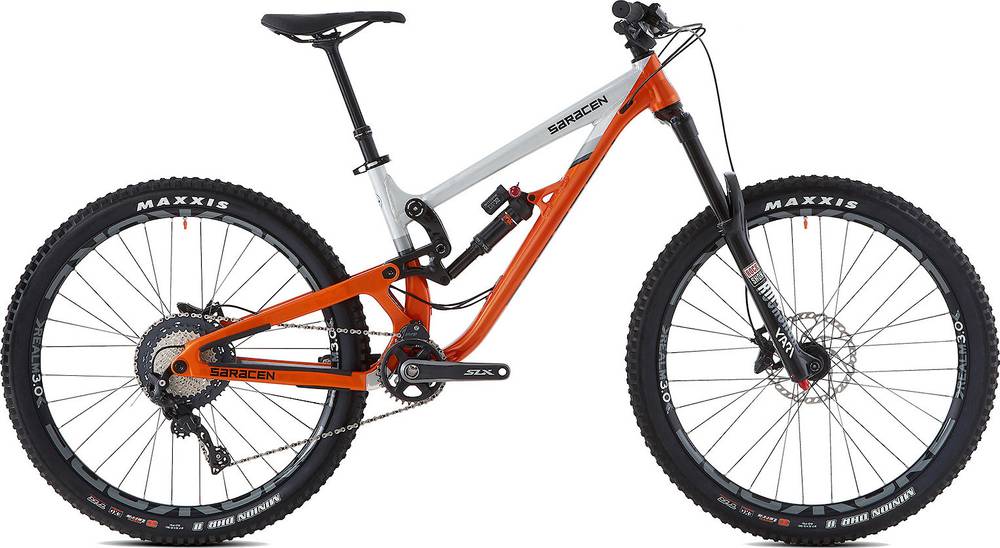

Ariel Elite is part of the Saracen Ariel model. 11 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Ariel Elite components
Fork
This bike has the RockShox Yari RC fork installed. The fork’s travel is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the FOX Float DPX2 Performance EVOL rear shock model, which has a travel of 165mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Ariel Elite 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ariel Elite comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Saracen Ariel Elite comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
