Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Float Factory, Kashima, GRIP2, 4-way, high and low speed compression, 15QR x 110mm Boost
Rear Shock
FOX Float X2 Factory EVOL, Kashima, 2-position, LSC, HSC, LSR, HSR, 230mm x 60mm
Drivetrain
Rear Derailleur
Shimano XT M8000 Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000 Rapidfire Plus, 11-speed
Cassette
Shimano SLX CS-M7000, 11-46 tooth, 11-speed
Crank
Shimano FC-M8000, 170mm or 175mm
Bottom Bracket
Shimano BB-MT800B
Chain
KMC X11, 11-speed
Chain Guide
MRP 1x V3
Pedals
None included
Wheels
Front Hub
DT Swiss E1900 Spline 30, Center Lock, 15mm x 110mm thru axle front, 12mm Saracen Taper Lock axle rear
Rear Hub
DT Swiss E1900 Spline 30, Center Lock, 15mm x 110mm thru axle front, 12mm Saracen Taper Lock axle rear
Rims
DT Swiss EW1900 Spline 30, 28 hole
Spokes
DT Swiss double butted
Tires
Maxxis Minnion DHR II, 3C, EXO, TR, 27.5 x 2.3"
Brakes
Brakes
Shimano XT BR-M8000 hydraulic disc, 180mm rotors
Brake Levers
Shimano XT M8000
Cockpit
Stem
Saracen 6061 CNC Alloy, 31.8mm, 0 degree rise, 45mm length
Handlebar
Race Face Atlas, 4 degree up, 8 degree back, 12.7mm rise, 785mm width
Grips
Saracen Lock-on
Headset
Saracen Offset
Seat
Saddle
Kore Fuze II
Seatpost
X-Fusion Manic, internal cable routing, 125mm travel (S), 150mm travel (M, L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 736 mm | 763 mm | 791 mm | 824 mm |
| Rake | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 117 mm | 117 mm | 116 mm | 116 mm |
| Stack | 593 mm | 598 mm | 602 mm | 620 mm |
| Reach | 414 mm | 439 mm | 464 mm | 489 mm |
| Top Tube Length | 578 mm | 612 mm | 637 mm | 667 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 365 mm | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1170 mm | 1197 mm | 1225 mm | 1258 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

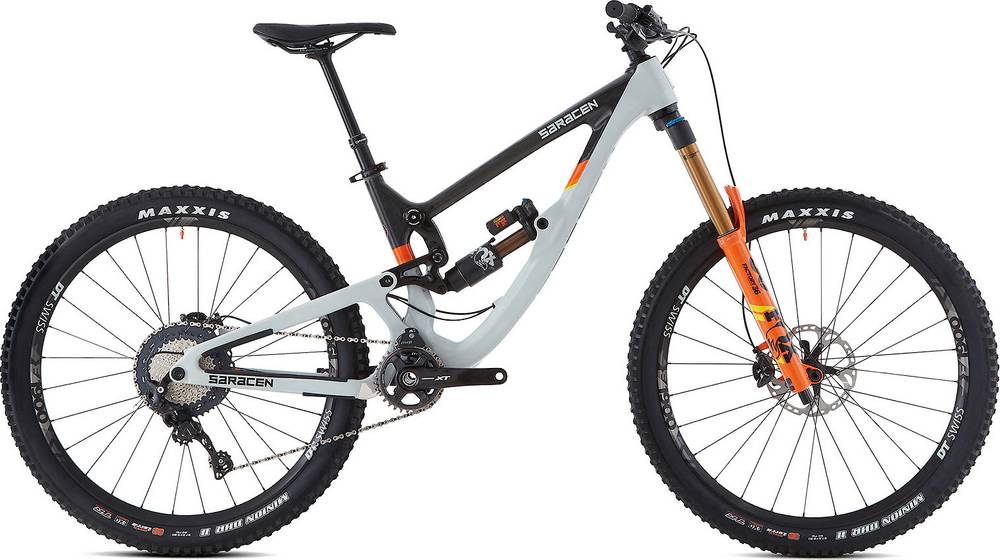

Ariel LT belongs to the Saracen Ariel model. Saracen launched 11 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Ariel LT components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float X2 Factory EVOL, with a travel distance of 165mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Saracen Ariel LT 2019, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ariel LT has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Saracen model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
