Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox 35 Gold RL
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox FS-35 Gold RL, SoloAir, rebound adjustment, 15mm x 110mm Boost axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle PG-1230, 11-50 tooth, 12-speed
Crank
SRAM Stylo 6K Eagle, 170mm on S/M, 175mm on L/XL
Bottom Bracket
SRAM DUB, BSA 73mm
Chain
KMC X-12
Chain Guide
None
Pedals
Alloy MTB
Wheels
Front Hub
Front: Formula DC-711, 6-bolt, Boost 15mm x 110mm, Rear: Formula DCL-348S, 6-bolt, 12mm x 148mm
Rear Hub
Front: Formula DC-711, 6-bolt, Boost 15mm x 110mm, Rear: Formula DCL-348S, 6-bolt, 12mm x 148mm
Rims
Jalco MHL32OS, 27.5", 32 hole
Spokes
Double butted stainless steel
Tires
Vee Rubber Flow Snap, 29" x 2.6", Tackee compound, tubeless ready
Brakes
Brakes
Shimano BR-MT500, 180mm rotors
Brake Levers
Shimano BL-MT501
Cockpit
Stem
Saracen 6061 Die Cast Alloy, 40mm
Handlebar
Saracen OS 6061 DB Alloy, 6° bend, 12mm rise, 780mm width, 31.8mm diameter
Grips
Saracen Lock-On
Headset
FSA
Seat
Saddle
Saracen Custom
Seatpost
TranzX Dropper, internal cable routing, 125mm of travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.31 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 743 mm | 768 mm | 801 mm | 825 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 603 mm | 603 mm | 621 mm | 630 mm |
| Reach | 434 mm | 459 mm | 484 mm | 504 mm |
| Top Tube Length | 597 mm | 622 mm | 652 mm | 674 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 360 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 105 mm | 125 mm | 135 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1172 mm | 1197 mm | 1230 mm | 1254 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm | 52 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

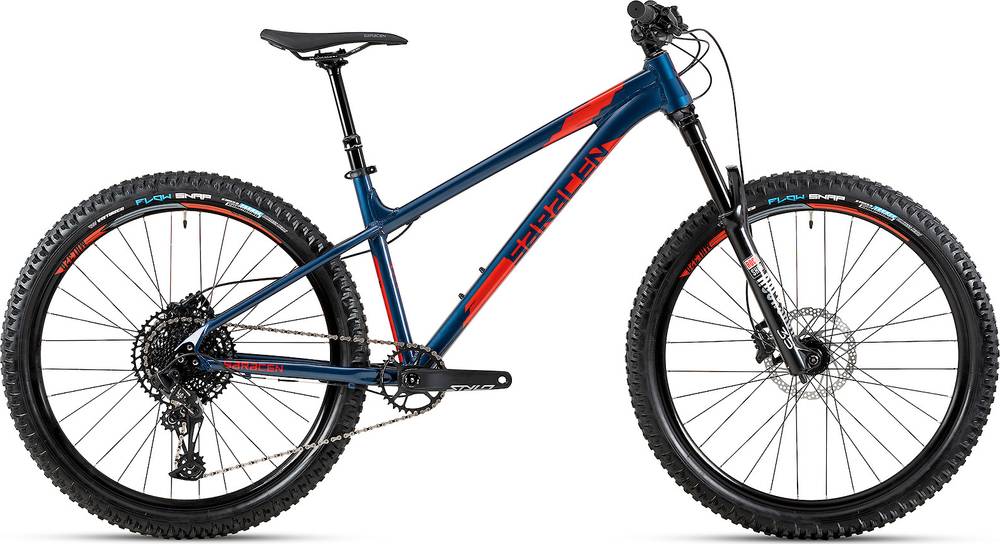

Mantra Elite LSL is a Saracen Mantra model. Saracen released 4 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Mantra Elite LSL components
Fork
Saracen Mantra Elite LSL 2020 bike is equipped with the RockShox 35 Gold RL fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Mantra Elite LSL model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
