Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox FS-35 Silver, Solo Air spring, rebound adjust
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle, 170-175mm length
Bottom Bracket
SRAM, 73mm English/BSA threaded
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Formula, sealed bearings, DC-711 110x15mm Boost front, DCL-348S 148x12mm Boost rear with HG driver
Rear Hub
Formula, sealed bearings, DC-711 110x15mm Boost front, DCL-348S 148x12mm Boost rear with HG driver
Rims
Jalco MHL320S, 29mm internal width, 32 hole, tubeless ready
Spokes
Stainless steel, 14g
Tires
VEE Tire Co. Flow Snap, Tackee Compound, TR, 27.5" x 2.6"
Brakes
Brakes
Shimano MT420, 4-piston, 180mm 6-bolt rotors
Brake Levers
Shimano M4100
Cockpit
Stem
Saracen, 6061 die-cast alloy, 40mm length, 3° rise, 31.8mm bar clamp
Handlebar
Saracen, OS double-butted 6061 alloy, 780mm width, 30mm rise, 6° bend, 31.8mm clamp diameter
Grips
Saracen, lock-on
Headset
FSA No.57SC, ZS44 upper, ZS56 lower
Seat
Saddle
Saracen Custom MTB, CrMo rails
Seatpost
KS Rage-i dropper, Southpaw remote lever, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.31 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 743 mm | 768 mm | 801 mm | 825 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 603 mm | 603 mm | 621 mm | 630 mm |
| Reach | 434 mm | 459 mm | 484 mm | 504 mm |
| Top Tube Length | 597 mm | 622 mm | 652 mm | 674 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 360 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 105 mm | 125 mm | 135 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1172 mm | 1197 mm | 1230 mm | 1254 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm | 52 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

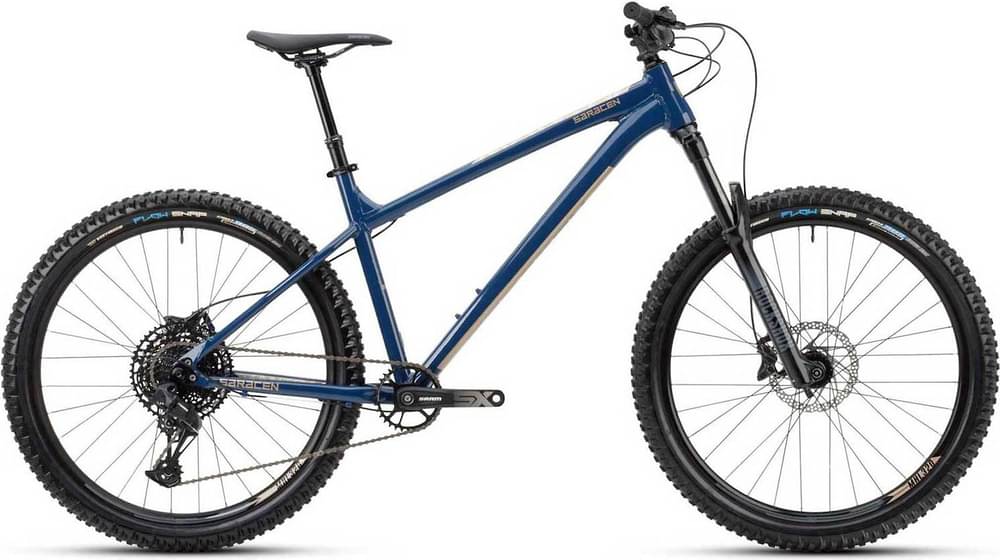

Mantra Trail LSL completes the Saracen Mantra model. 4 bikes variations carry this model name so far. You can easily view all of the Saracen Mantra bikes models from 2021, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 15.4 kg (33.95 lbs), the Mantra Trail LSL model is much heavier than average. In conclusion, the average Trail bike weighs 18.64% less than Mantra Trail LSL.
Overview of components
Fork
The fork installed on this bike is the RockShox 35 Silver model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Mantra Trail LSL model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Saracen Mantra Trail LSL has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Mantra Trail LSL. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
