Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 200mm -
Fork X Fusion
-
Groupset Zee -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
X-Fusion RV1 Coil, Roughcut, high and low speed compression, rebound adjust, 20mm x 110mm
Rear Shock
X-Fusion Vektor Coil RC, compression and rebound adjustment, 241mm x 76mm, Spring rate: 350lbs on S/M, 400lbs on L/XL
Drivetrain
Rear Derailleur
Shimano ZEE RD-M640, 10-speed
Front Derailleur
None
Shift Levers
Shimano ZEE SL-M640, 10-speed, RAPIDFIRE PLUS
Cassette
Shimano Deore CS-HG500, 10-speed, 11-25 tooth
Crank
Samox DH, 165mm
Bottom Bracket
Samox, BSA 83mm
Chain
Shimano HG54
Chain Guide
MRP G4 CS
Pedals
Alloy MTB
Wheels
Front Hub
Front: Formula DHL-92, 6-bolt, 20mm thru axle, Rear: Novatec DH82SB-S4S, 6-bolt, 12mm Saracen Taper Lock axle
Rear Hub
Front: Formula DHL-92, 6-bolt, 20mm thru axle, Rear: Novatec DH82SB-S4S, 6-bolt, 12mm Saracen Taper Lock axle
Rims
Jalco PHL32OS, 27.5", 32 hole, tubeless ready
Spokes
Double butted stainless steel
Tires
Maxxis High Roller II, 27.5" x 2.4", 42a Super Tacky compound
Brakes
Brakes
Shimano BR-MT520, 203mm rotors
Brake Levers
Shimano BL-MT501
Cockpit
Stem
Race Face Chester, direct mount, 50mm length
Handlebar
Race Face Chester, 20mm rise, 780mm width, 35mm diameter
Grips
Saracen Lock-On
Headset
Saracen Tapered
Seat
Saddle
Saracen Custom
Seatpost
Race Face Chester, 325mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.368 mm | 1.309 mm | 1.273 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 786 mm | 806 mm | 826 mm | 854 mm |
| Rake | 53 mm | 53 mm | 53 mm | 57 mm |
| Trail | 122 mm | 122 mm | 122 mm | 117 mm |
| Stack | 602 mm | 602 mm | 602 mm | 611 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 593 mm | 613 mm | 630 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 125 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1226 mm | 1246 mm | 1266 mm | 1294 mm |
| Bottom Bracket Drop | 1 mm | 1 mm | 1 mm | 1 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

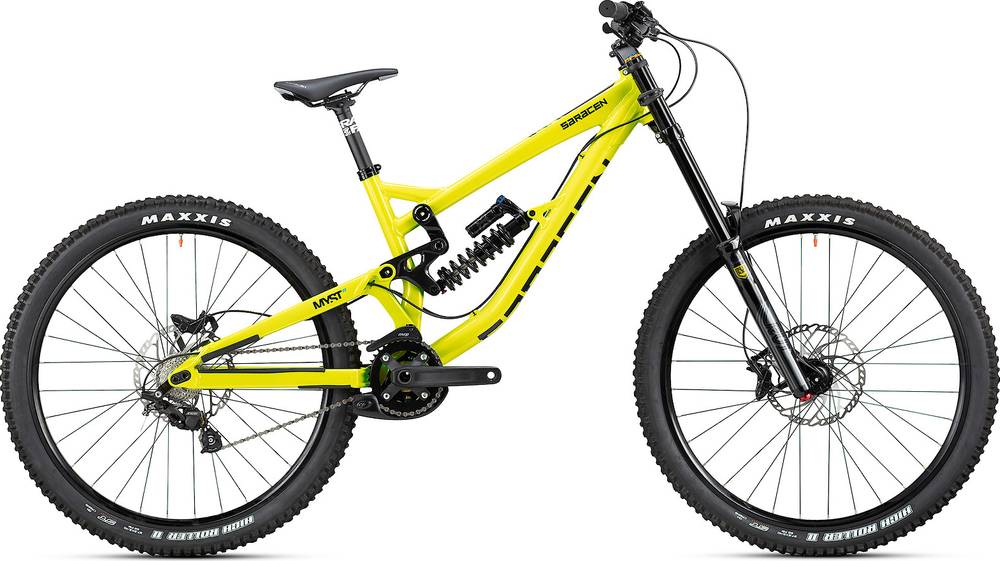

Myst AL is a Saracen Myst model. There are 14 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Myst AL components
Fork
The fork installed on this bike is the X Fusion model. The travel on this model is 203mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the X-Fusion Vektor Coil RC rear shock model, which has a travel of 200mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Myst AL 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Saracen Myst AL has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Myst AL comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
